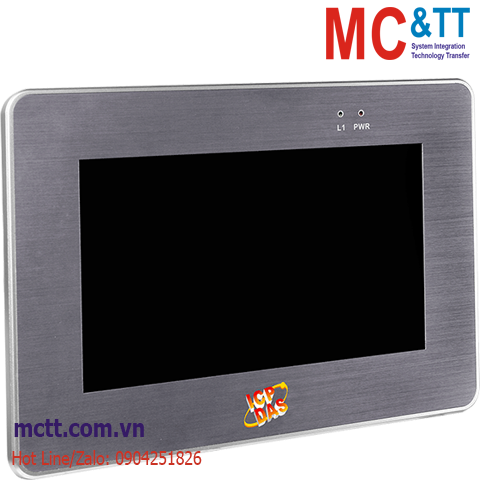

Bộ thu thập dữ liệu cảm biến đo nhiệt độ hồng ngoại IR màn hình 7 inch ICP DAS VPD-170-IRT CR
Feature
- High-resolution color touch screen
- Front Panel: IP65 Waterproof
- Provide setting Temperature threshold value function
- 9 Signal Relay Output channels for Alarm
- Provide Thermography
- Connect up to 31 iSN-81x-MRTU series module
- Support Modbus TCP/RTU protocol
Introduction
VPD-1xx-IRT supports 8 Modbus TCP connections, allowing remote monitoring hosts to connect to VPD-1xx-IRT via Ethernet and access temperature data of multiple iSN-81x-MRTUs at one time. Users can set various functions of iSN-81x-MRTU and VPD-1xx-IRT from the touch screen of VPD-1xxIRT, and can also immediately see the temperature and thermal image of the measured object. Through the convenient connection and communication capabilities between the VPD-1xx-IRT temperature data concentrator and the Ethernet network, users can quickly establish a remote monitoring system and conduct centralized management of temperature data.
Application
- Big data analysis
- System monitoring
- Trend analysis
- Predictive maintenance
Specifications
| Main Unit |
| CPU |
32-bit RISC CPU |
| Storage |
64 MB SDRAM/64 MB Flash |
| Real Time Clock |
Yes |
| Display |
| Type |
LCD 7” TFT (Resolution 800 x 480 , 65535 colors),
defective pixels <= 3 |
| Backlight Life |
20,000 hours |
| Brightness |
400 cd/m2 |
| Touch Panel |
Yes |
| LED Indicators |
| Status |
2 LED |
| Relay Output |
| Channels |
9 |
| Type |
Signal Relay (Form A) |
| Contact Material |
Silver Nickel, Gold-covered |
| Contact Rating |
2 A @ 30 VDC<br>0.24 A @ 220 VDC<br>0.25 A @ 250 VAC |
| Operate Time |
3 ms (typical) |
| Release Time |
4 ms (typical) |
| Electrical Endurance |
2 x 10^5 ops. |
| Mechanical Endurance |
10^8 ops. |
| Power on Value |
Yes |
| Safe Value |
Yes |
| COM Ports |
| Ports |
2 x RS-232 (3-pin) or RS-485 (including Self-Tuner) ;
2500 VDC isolated |
| Protocol |
Modbus RTU |
| HMI |
| Buzzer |
Yes |
| Rotary Switch |
Yes |
| Rubber Keypad |
No |
| Reset Button |
Yes |
| Ethernet |
| Ports |
RJ-45 x 1, 10/100 Base-TX |
| Protocol |
Modbus TCP |
| USB |
| Specification |
USB 1.1 Client (Firmware updates only) |
| Connector |
Mini-B |
| Power |
| Consumption |
3.6 W |
| Powered from PoE |
IEEE 802.3af, Class1 (48 V) |
| Powered from Terminal Block |
+12 ~ 48 VDC |
| Mechanical |
| Dimensions (mm) |
217 mm x 153 mm x 33 mm |
| Installation |
Wall Mounting |
| Ingress Protection Rating |
Front Panel: NEMA 4 /IP65 |
| Environment |
| Operating Temperature |
-10 ~ +60°C |
| Storage Temperature |
-20 ~ +70°C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| VPD-170-IRT CR |
IR Temperature data concentrator, 2 x RS-232/RS-485, Ethernet (PoE), Includes XV-board (RoHS) |
