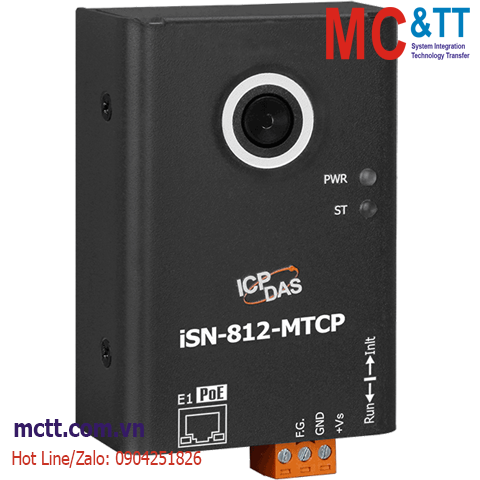

Cảm biến đo nhiệt độ hồng ngoại IR Ethernet Modbus TCP ICP DAS iSN-812-MTCP CR

Chia sẻ:
Mã sản phẩm: iSN-812-MTCP
Thương hiệu: ICP DAS
Tình trạng:

IR temperature sensing module with PoE Ethernet port

Liên hệ
Mô tả

Cảm biến đo nhiệt độ hồng ngoại IR Ethernet Modbus TCP ICP DAS iSN-812-MTCP CR

Feature

  • Non-contact temperature measurement
  • Provide 768 IR Pixels (32 x 24)
  • Temperature Measurements: -40°C ~ 300°C
  • Provide Field of view(FOV): 110° x 75°
  • Support Modbus TCP protocol
  • Temperature threshold detection function
  • Offers Wall-mount, magnetic and universal joint for installation

Introduction

The iSN-81x-MRTU and iSN-81x-MTCP series is a Infrared temperature sensing module that is designed specifically for non-contact temperature measurement. The module provides a variety of temperature pixels and temperature threshold detection functions to meet various temperature measurement needs. It also provides Modbus RTU protocol and Modbus TCP protocol that users can put it into SCADA system very easily.

Model Sensing range, distance to be measured is 25CM Field of view(FOV)
X-axis(CM) Y-axis(CM) X-axis(°) Y-axis(°)
iSN-811-MRTU 86.5 11 120 25
iSN-812-MRTU 71.5 38 110 75
iSN-813-MRTU 50 50 90 90
iSN-814-MRTU 23 23 50 50

Application

  • Big data analysis
  • System monitoring
  • Trend analysis
  • Predictive maintenance

Specifications

Temperature Measurement
Range -40°C ~ 300°C
Resolution 0.1°C
Accuracy ±5°C Max.
IR Sensor Effective Distance 1 m
Ethernet
Ports 1 x RJ-45, 10/100Base-T(X)
PoE Yes
Protocol Modbus TCP
Power
Input Range +30 VDC
Consumption 1.8W
Powered from PoE Yes, IEEE 802.3af, Class1
Mechanical
Dimensions (mm) 52 mm x 95 mm x 27 mm (W x H x D)
Installation Wall-mounting or magnetic mounting
Environment
Operating Temperature -10°C~70°C
Storage Temperature -20°C~80°C
Humidity 10% ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

iSN-812-MTCP     CR  Modbus TCP, IR temperature sensing module; 768 Pixels (RoHS)
