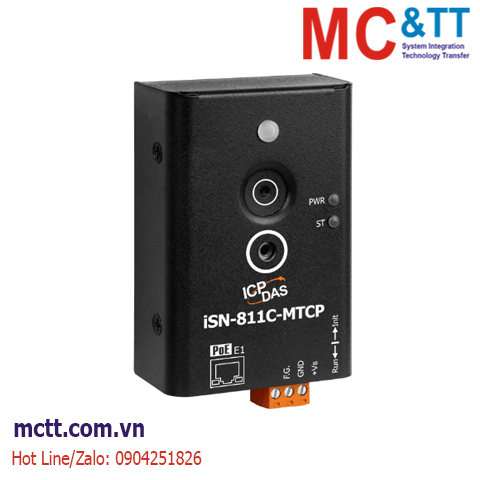

Cảm biến đo nhiệt độ hồng ngoại IR Ethernet Modbus TCP ICP DAS iSN-811C-MTCP CR
The iSN-81x-MRTU and iSN-81x-MTCP series are temperature measurement modules developed for non-contact temperature measurement. With a diverse range of temperature pixels and temperature threshold detection functions, they can meet various temperature measurement needs. The iSN-811C-MTCP is equipped with a camera that provides images of the measured objects. Through the synthesis of infrared images and images of the measured objects, management personnel can intuitively inspect and analyze the temperature distribution of the measured objects, enabling accurate judgments and decisions. The iSN-811C-MTCP supports Modbus TCP, RESTful, and MQTT communication protocols. The Modbus TCP communication protocol allows for easy integration into SCADA systems, providing real-time temperature measurements. It also supports sending measurement data to a remote database server using the RESTful method. When operating as an MQTT client, iSN-811C-MTCP sends measurement data to a Broker, allowing SCADA systems, management platforms, and IoT systems to easily subscribe to topics and access iSN-811C-MTCP measurement data. iSN-811C-MTCP is your reliable partner for equipment monitoring, data analysis, and anomaly detection in an industrial environment. Management personnel can assess whether the equipment being monitored by iSN-811C-MTCP is experiencing anomalies through measurement data. This helps with early warning and rapid response, reducing production losses caused by sudden anomalies. The long-term storage of historical data can also be used for automated decision-making or artificial intelligence training to determine whether components of monitoring equipment need replacement, achieving the goal of predictive maintenance. Whether you require real-time monitoring or long-term data analysis, iSN-811C-MTCP can meet your needs.
Feature
- Non-contact temperature measurement
- Integrated thermal imaging and field image
- Support Modbus TCP, RESTful and MQTT protocols
- Web-based configuration and monitoring interface
- Temperature threshold detection function
Application
- Big data analysis
- System monitoring
- Trend analysis
- Predictive maintenance
Specifications
| Camera |
| Image Sensor |
CMOS |
| Max. Resolution |
QVGA (320x240) |
| LED Indicators |
| Status |
1xPWR; 1xST |
| Temperature Measurement |
| Range |
-20°C~250°C |
| Resolution |
0.1°C |
| Accuracy |
±5°C Max. |
| IR Sensor Pixel |
64 (8 x 8) |
| IR Sensor FOV |
X: 60° / D : S =1 : 1.15
Y: 60° / D : S =1 : 1.15 |
| Distance |
≦1m |
| Ethernet |
| Ports |
1 x RJ-45, 10/100Base-T(X) |
| PoE |
Yes |
| Protocol |
Modbus TCP server/MQTT client/RESTful client |
| Power |
| Input Range |
+10~+30 VDC |
| Consumption |
1.5W |
| Powered from PoE |
Yes, IEEE 802.3af, Class1 |
| Mechanical |
| Dimensions (mm) |
52 x 86 x 34 (W x H x D) |
| Installation |
Din-rail or magnetic(Optional), universal joint(Optional) |
| Environment |
| Operating Temperature |
-10°C~70°C |
| Storage Temperature |
-20°C~80°C |
| Humidity |
10% ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| iSN-811C-MTCP CR |
Modbus TCP; IR temperature sensing module with camera; 64 Pixels (RoHS) |
