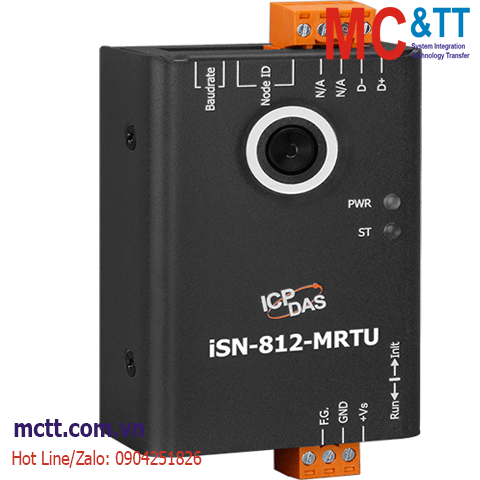

Cảm biến đo nhiệt độ hồng ngoại IR RS-485 Modbus RTU ICP DAS iSN-812-MRTU CR
Feature
- Non-contact temperature measurement
- Provide 768 IR Pixels (32 x 24)
- Temperature Measurements: -40°C ~ 300°C
- Provide Field of view(FOV): 110° x 75°
- Support Modbus RTU protocol
- Temperature threshold detection function
- Offers Wall-mount, magnetic and universal joint for installation
Introduction
The iSN-81x-MRTU series is a Infrared temperature sensing module that is designed specifically for non-contact temperature measurement. The module provides a variety of temperature pixels and temperature threshold detection functions to meet various temperature measurement needs. It also provides Modbus RTU protocol that users can put it into SCADA system very easily.
| Model |
Sensing range, distance to be measured is 25CM |
Field of view（FOV） |
| X-axis（CM） |
Y-axis（CM） |
X-axis（°） |
Y-axis（°） |
| iSN-811-MRTU |
86.5 |
11 |
120 |
25 |
| iSN-812-MRTU |
71.5 |
38 |
110 |
75 |
| iSN-813-MRTU |
50 |
50 |
90 |
90 |
| iSN-814-MRTU |
23 |
23 |
50 |
50 |
Application
- Big data analysis
- System monitoring
- Trend analysis
- Predictive maintenance
Specifications
| LED Indicators |
| Status |
1 x LED |
| Temperature Measurement |
| Range |
-40°C ~ 300°C |
| Accuracy |
±5°C Max. |
| IR Sensor Pixel |
768 (32x24) |
| IR Sensor FOV |
110° x 75° |
| IR Sensor Effective Distance |
1 m |
| COM Ports |
| Ports |
1 x RS-485 |
| Baud Rate |
115200 bps Max. |
| Protocol |
Modbus RTU |
| Power |
| Input Range |
+10 ~ +30 VDC |
| Consumption |
1.5W |
| Mechanical |
| Dimensions (mm) |
52 mm x 94 mm x 33 mm (W x H x D) |
| Installation |
Wall-mount, magnetic and universal joint |
| Environment |
| Operating Temperature |
-10°C~70°C |
| Storage Temperature |
-20°C~80°C |
| Humidity |
10% ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| iSN-812-MRTU CR |
Modbus RTU, IR temperature sensing module; 768 Pixels (RS-485) (RoHS) |
