Màn hình lập trình nhúng Win-GRAF ViewPAC 15 inch CPU Cortex-A8 + WinCE 7.0 +3 khe cắm module I/O ICP DAS VP-6238-CE7 CR

Chia sẻ:
Mã sản phẩm: VP-6238-CE7
Thương hiệu: ICP DAS
Tình trạng:

15" Win-GRAF Based ViewPAC with Cortex-A8 CPU, WinCE 7.0, and 3 I/O Slots

Liên hệ
Mô tả

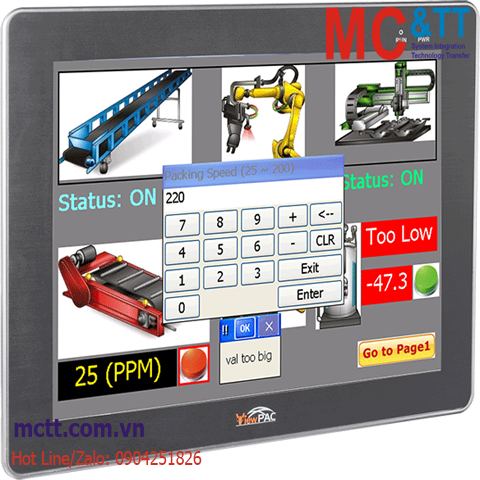

Màn hình lập trình nhúng Win-GRAF ViewPAC 15 inch CPU Cortex-A8 + WinCE 7.0 +3 khe cắm module I/O ICP DAS VP-6238-CE7 CR

Features

• 15" TFT LCD
• Cortex-A8 CPU (32-bit & 1 GHz)
• Windows CE.NET 7.0 Inside
• Embedded Win-GRAF SoftLogic (IEC 61131-3)
• Hard Real-Time Capability
• 3 Slots for High Profile I/O Modules
• IP65 Compliant Front Panel
• Modbus RTU/TCP (Master, Slave)
• Support eLogger HMI

Introduction

The Win-GRAF ViewPAC with I/O slot Series (VP-1238-CE7, VP-4238-CE7, VP-6238-CE7) is the new generation WinCE 7.0 based Win-GRAF PAC (Programmable Automation Controller) from ICP DAS.

Each PAC is equipped with a Cortex-A8 CPU (32-bit & 1 GHz) running a Windows CE 7.0 operating system, a variety of input/output ports (USB, Ethernet, RS-232/485), 3 I/O slots that can be used to integrate high-performance parallel I/O modules (high profile I-8K Series) or serial I/O modules (high profile I-87K series), and a 5.7”/10.4”/15” TFT LCD with a rubber keypad.

The Win-GRAF ViewPAC are capable of running Win-GRAF (IEC 61131-3 Standard) software to develop logic control, and also provide a free HMI software "eLogger" to edit the HMI by graphical drag and drop the HMI objects, or support M.S. VS 2008 software (VB .NET, C#) to develop HMI and data management applications, and all can exchange data with Win-GRAF applications. So the application's design is more convenient and practical.

Application

Specifications

Software
OS Windows CE 7.0
Protocol • NET ID
• eLogger HMI
• Modbus TCP/IP Master
• Modbus TCP/IP Slave
• Modbus RTU/ASCII Master
• Modbus RTU Slave
• DCON Protocol
• User-defined Protocol
• I/O Type: DCON, Modbus RTU, and Modbus TCP/IP remote I/O
• Local I/O Modules
• Application Protection
• Data Binding
• On Line Change
• Schedule Control
• Retain Variables
• File Access and Data Log
Development Embedded Win-GRAF SoftLogic (IEC 61131-3)
Service FTP server, Web server (supports VB script, JAVA script), SQL Compact Edition 3.5
Framework Support .Net Compact Framework 3.5
Multilanguage Support English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese
SDK Dll for VC, Dll for Visual Studio.Net 2008
Main Unit
CPU Cortex-A8, 1.0 GHz
64-bit Hardware Serial Number Yes
System Memory 512 MB SDRAM, 256 MB Flash
Storage A SD/microSD adapter and 4 GB microSD card (up to 32 GB)
Non-Volatile Memory 128 KB MRAM, 16 KB EEPROM
Real Time Clock Provide seconds, minutes, hours, dates, day of week, month, year
Watchdog Timer Dual Watchdog Timer
Display
Type LCD
Size 15" (4:3)
Backlight Life 50,000 hours
Brightness 400 cd/m2
Resolution 1024 x 768
Touch Panel 5-wire, resistive type; light transmission: 80 %
Contrast Ratio 500:1
LED Indicators
Status 1 x System, 1 x Power
I/O Expansion
I/O Type I-8K, I-87K series
Slots 3
COM Ports
Ports 1 x RS-232, 1 x RS-485 (2500 VDC Isolated)
HMI
Buzzer Yes
Rotary Switch Yes, (0 ~ 9)
Audio
Jack Microphone-In and Earphone-Out
Ethernet
Ports 1 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators)
USB
Ports 2 x USB 2.0
Power
Input Range +10 ~ 30 VDC (1 kV Isolated )
Redundant Power Inputs Yes
Consumption 0.65 A @ 24 VDC
Mechanical
Casing Plastic
Dimensions (mm) 381 x 305 x 139 (W x L x H)
Panel Cut-Out (mm) 366 x 290, ±1 (W x H)
Installation Panel mounting
Ingress Protection Rating Front panel: NEMA 4/IP65
Weight 4.9 Kg
Environment
Operating Temperature -20 ~ +70°C
Storage Temperature -30 ~ +80°C
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

VP-6238-CE7     CR  15" Win-GRAF Based ViewPAC with Cortex-A8 CPU, WinCE 7.0, and 3 I/O Slots (RoHS)
