7" Win-GRAF Based ViewPAC with Cortex-A8 CPU and WinCE 7.0

Liên hệ
Mô tả

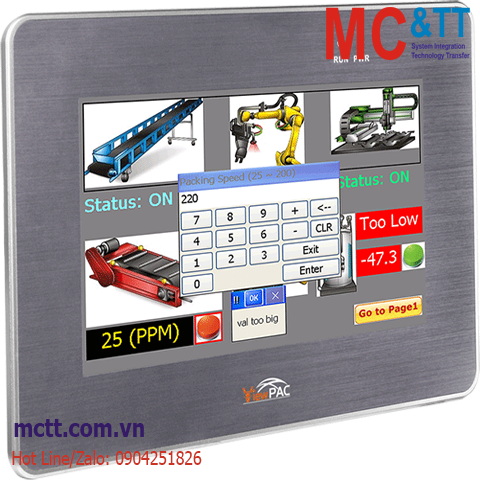

Màn hình lập trình nhúng Win-GRAF ViewPAC 7 inch Cortex-A8 + WinCE 7.0 ICP DAS VP-2208-CE7 CR

Features

• 7" TFT LCD
• Cortex-A8, 1.0 GHz CPU
• CE7 (Windows Embedded Compact 7)
• Embedded Win-GRAF SoftLogic (IEC 61131-3)
• Hard Real-Time Capability
• PoE (Power over Ethernet)
• NEMA 4/IP65 Compliant Front Panel
• Modbus RTU/TCP (Master, Slave)
• Support eLogger HMI

Introduction

The Win-GRAF ViewPAC Series (VP-2208-CE7/VP-3208-CE7/VP-4208-CE7/VP-5208-CE7/VP-6208-CE7) are WinCE7 based Win-GRAF SoftLogic ViewPAC that combine computing and operator interface into a single unit, and provide the perfect solution for integrating HMI, data acquisition, and control in an individual PAC.

It is equipped with a Cortex-A8 (1 GHz) CPU, TFT LCD, and a variety of connectives including Gigabit Ethernet, USB port, RS-232, and RS-485 interface. I/O expansion is available to use our Ethernet I/O modules and RS-485 I/O modules. Designed for panel mount installation, the front panel is NEMA 4/IP65 rated and can withstand sprayed water, humidity, and extreme dust. Designed to operate over a wide -10° C ~ 60° C ambient temperature range, the fanless design offers the ultimate in reliability with no moving parts.

The Win-GRAF ViewPAC are capable of running Win-GRAF (IEC 61131-3 Standard) software to develop logic control, and also provide a free HMI software "eLogger" to edit the HMI by graphical drag and drop the HMI objects, or support M.S. VS 2008 software (VB .NET, C#) to develop HMI and data management applications, and all can exchange data with Win-GRAF applications. So the application's design is more convenient and practical.

Application

Specifications

Software
OS Windows CE 7.0
Protocol • NET ID
• eLogger HMI
• Modbus TCP/IP Master
• Modbus TCP/IP Slave
• Modbus RTU/ASCII Master
• Modbus RTU Slave
• DCON Protocol
• User-defined Protocol
• I/O Type: DCON, Modbus RTU, and Modbus TCP/IP remote I/O
• Application Protection
• Data Binding
• On Line Change
• Schedule Control
• Retain Variables
• File Access and Data Log
Development Embedded Win-GRAF SoftLogic (IEC 61131-3)
Service FTP server, Web server (supports VB script, JAVA script), SQL Compact Edition 3.5
Framework Support .Net Compact Framework 3.5
Multilanguage Support English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese
SDK Dll for VC, Dll for Visual Studio.Net 2008
Main Unit
CPU Cortex-A8, 1.0 GHz
64-bit Hardware Serial Number Yes
System Memory 512 MB DDR3 SDRAM, 256 MB Flash (SSD)
Storage 4 GB microSD card (up to 32 GB)
Non-Volatile Memory 128 KB MRAM, 16 KB EEPROM
Real Time Clock Provide seconds, minutes, hours, dates, day of week, month, year
Watchdog Timer Dual Watchdog Timer
Display
Type LCD
Size 7" (16:9)
Backlight Life 20,000 hours
Brightness 400 cd/m2
Resolution 800 x 480
Touch Panel 4-wire, resistive type; light transmission: 80 %
Contrast Ratio 500 : 1
LED Indicators
Status 1 x System, 1 x Power
COM Ports
Ports 2 x RS-232/RS-485 (2500 VDC Isolated)
HMI
Buzzer Yes
Rotary Switch Yes, (0 ~ 9)
Audio
Jack Earphone-Out
Ethernet
Ports 1 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators)
USB
Ports 2 x USB 2.0
Power
Input Range +12 ~ 48 VDC
Consumption 6.0 W
Powered from PoE Yes
Mechanical
Casing Plastic
Dimensions (mm) 213 x 148 x 44 (W x L x H)
Panel Cut-Out (mm) 197 x 133, ± 1 (W x H)
Installation Panel mounting, VESA wall mounting (75 x 75)
Ingress Protection Rating Front panel: NEMA 4/IP65
Weight 1 Kg
Environment
Operating Temperature -10 ~ +60°C
Storage Temperature -20 ~ +70°C
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

VP-2208-CE7     CR  7" Win-GRAF Based ViewPAC with Cortex-A8 CPU and WinCE 7.0 (RoHS)
