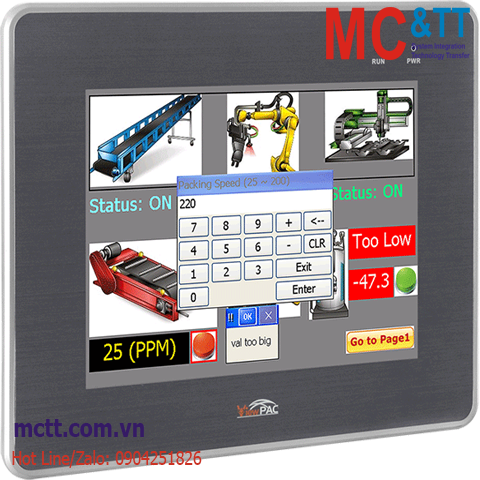

Màn hình lập trình nhúng Win-GRAF ViewPAC 8 inch Cortex-A8 + WinCE 7.0 ICP DAS VP-3208-CE7 CR
Features
• 8.4" TFT LCD
• Cortex-A8, 1 GHz CPU
• CE7 (Windows Embedded Compact 7)
• Embedded Win-GRAF SoftLogic (IEC 61131-3)
• Hard Real-Time Capability
• PoE (Power over Ethernet)
• NEMA 4/IP65 Compliant Front Panel
• Modbus RTU/TCP (Master, Slave)
• Support eLogger HMI
Introduction
The Win-GRAF ViewPAC Series (VP-2208-CE7/VP-3208-CE7/VP-4208-CE7/VP-5208-CE7/VP-6208-CE7) are WinCE7 based Win-GRAF SoftLogic ViewPAC that combine computing and operator interface into a single unit, and provide the perfect solution for integrating HMI, data acquisition, and control in an individual PAC.
It is equipped with a Cortex-A8 (1 GHz) CPU, TFT LCD, and a variety of connectives including Gigabit Ethernet, USB port, RS-232, and RS-485 interface. I/O expansion is available to use our Ethernet I/O modules and RS-485 I/O modules. Designed for panel mount installation, the front panel is NEMA 4/IP65 rated and can withstand sprayed water, humidity, and extreme dust. Designed to operate over a wide -10° C ~ 60° C ambient temperature range, the fanless design offers the ultimate in reliability with no moving parts.
The Win-GRAF ViewPAC are capable of running Win-GRAF (IEC 61131-3 Standard) software to develop logic control, and also provide a free HMI software "eLogger" to edit the HMI by graphical drag and drop the HMI objects, or support M.S. VS 2008 software (VB .NET, C#) to develop HMI and data management applications, and all can exchange data with Win-GRAF applications. So the application's design is more convenient and practical.
Application
Specifications
| Software |
| OS |
Windows CE 7.0 |
| Protocol |
• NET ID
• eLogger HMI
• Modbus TCP/IP Master
• Modbus TCP/IP Slave
• Modbus RTU/ASCII Master
• Modbus RTU Slave
• DCON Protocol
• User-defined Protocol
• I/O Type: DCON, Modbus RTU, and Modbus TCP/IP remote I/O
• Application Protection
• Data Binding
• On Line Change
• Schedule Control
• Retain Variables
• File Access and Data Log |
| Development |
Embedded Win-GRAF SoftLogic (IEC 61131-3) |
| Service |
FTP server, Web server (supports VB script, JAVA script), SQL Compact Edition 3.5 |
| Framework Support |
.Net Compact Framework 3.5 |
| Multilanguage Support |
English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK |
Dll for VC, Dll for Visual Studio.Net 2008 |
| Main Unit |
| CPU |
Cortex-A8, 1.0 GHz |
| 64-bit Hardware Serial Number |
Yes |
| System Memory |
512 MB DDR3 SDRAM, 256 MB Flash (SSD) |
| Storage |
A SD/microSD adapter and 4 GB microSD card (up to 32 GB) |
| Non-Volatile Memory |
128 KB MRAM, 16 KB EEPROM |
| Real Time Clock |
Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer |
Dual Watchdog Timer |
| Display |
| Type |
LCD |
| Size |
8.4" (4:3) |
| Backlight Life |
50,000 hours |
| Brightness |
400 cd/m2 |
| Resolution |
800 x 600 |
| Touch Panel |
5-wire, resistive type; light transmission: 80 % |
| Contrast Ratio |
500 : 1 |
| LED Indicators |
| Status |
1 x System, 1 x Power |
| COM Ports |
| Ports |
1 x RS-485 (2500 VDC Isolated), 1 x RS-232/RS-485 (2500 VDC Isolated) |
| HMI |
| Buzzer |
Yes |
| Rotary Switch |
Yes, (0 ~ 9) |
| Ethernet |
| Ports |
1 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| Power |
| Input Range |
+12 ~ 48 VDC (1 kV Isolated ) |
| Consumption |
7.5 W |
| Powered from PoE |
Yes |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
249 x 207 x 64 (W x L x H) |
| Panel Cut-Out (mm) |
235 x 193, ±1 (W x H) |
| Installation |
Panel mounting, VESA wall mounting (75x75, 100x100) |
| Ingress Protection Rating |
Front panel: NEMA 4/IP65 |
| Weight |
2.9 Kg |
| Environment |
| Operating Temperature |
-10 ~ +60°C |
| Storage Temperature |
-20 ~ +70°C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| VP-3208-CE7 CR |
8.4" Win-GRAF Based ViewPAC with Cortex-A8 CPU and WinCE 7.0 (RoHS) |
