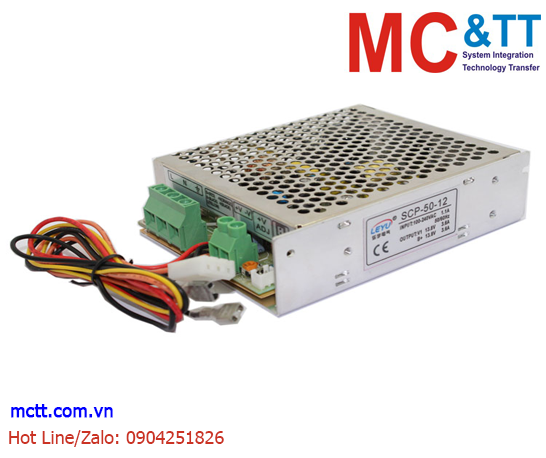

Bộ sạc ắc quy tự động 220VAC sang 13.8VDC 3.6A Leyu SCP-50-12
50W Single Output UPS functionPower Supply SCP-50 series
Features:
1. Universal AC input/Full rang
2. Protection: Short circuit / Overload / Over voltage / battery polarity protections(by fuse)
3. Cooling by free air convection
4. LED indicator for power on
5. No load power consumption<1W
6. Suitable for installation in metallic or non-metallic system enclosure
7. 100% full load burn-in test
8. 2 years warranty
|
SPECIFICATION |
|
OUTPUT |
|
|
Model |
SCP-50-12 |
SCP-50-24 |
|
DC Voltage |
13.8V |
27.6V |
|
Rated Current |
3.6A |
1.8A |
|
Current Range |
0-3.6A |
0-1.8A |
|
Rated Power |
49.7W |
49.7W |
|
Ripple & Noise |
120mVp-p |
200mVp-p |
|
Voltage Adj. Range |
+15,-5% |
+15,-5% |
|
Voltage Tolerance |
±2% |
±1% |
|
Inlet Stability |
±1% |
±1% |
|
Load Stability |
±2% |
±1% |
|
Setup,Rise |
500ms,30ms/230VAC 1200ms,30ms/115VAC at full load |
|
Hold Up Time |
50ms/230VAC 16ms/115VAC at full load |
|
|
|
|
INPUT |
|
|
Voltage Range |
85~264VAC 120-370VDC |
|
Frequency Range |
47-63Hz |
|
AC Current |
1.1A/115VAC 0.65A/230VAC |
|
Efficiency |
81% |
85% |
|
Inrush Current |
Cold-start 45A |
|
Leakage Current |
<2mA/240VAC |
|
|
|
|
PROTECTION |
|
|
Over Load |
4.3A~5.8A rated output power |
2.2A~2.9A rated output power |
|
Protection type: hiccup mode,recovers automatically after fault condition is removed |
|
Over Voltage |
16.6~19.3V |
33.1~38.5V |
|
Protection type: shut down o/p voltage, re-power on to recover |
|
|
|
|
ENVIRONMENT |
|
|
Working Temp., Humidity |
-20℃~+60℃(Refer to output derating curve),20%~90%RH |
|
Storage Temp., Humidity |
-40℃~+85℃, 10%~95%RH |
|
Temp. Coefficient |
±0.03%/℃(0~45℃) |
|
Vibration |
10~500Hz,2G 10min,/1cycle,Period for 60min,Each along X.Y.Z axes |
|
|
|
|
SAFETY |
|
|
Withstand Voltage |
I/P-O/P: 3KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC |
|
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC |
|
|
|
|
STANDARD |
|
|
Safety Standard |
UL60950-1,CCC,CE |
|
EMC Standard |
EN55022,CLASS B |
|
|
|
|
OTHERS |
|
|
Dimension |
129*98*38mm(L*W*H) |
|
Net Weight |
375.7g |
|
Packing |
450g/pc 30pcs/carton |
