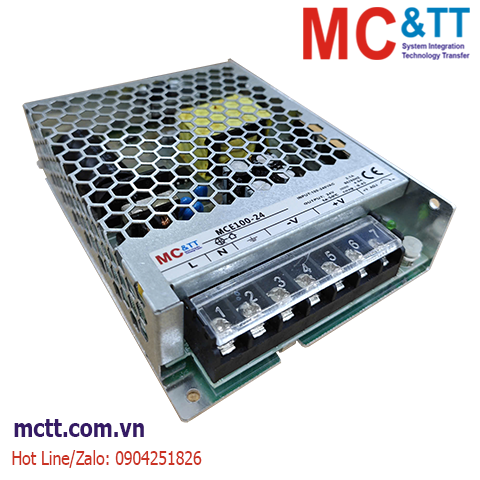

Bộ đổi nguồn tổ ong MCE100-24 100W, 24VDC, 4.5A
MCE100 series is a 100W single output enclosed type power supply with 30mm of low profile design. Adopting the full range 85~264VAC input, the entire series provides an output voltage line of 5V, 12V, 24V, 36V and 48V.
In addition to the high efficiency up to 91%, the design of metallic mesh case enhances the heat dissipation of MCTT-LRS-100 that the whole series operates from -30 ~ 70℃ under air convection without a fan. Delivering an extremely low no load power consumption (less than 0.3W), it allows the end system to easily meet the worldwide energy requirement. MCE100 has the complete protection functions and 5G anti-vibration capability; it is complied with the international safety regulations such as UL60950-1, IEC/EN60950-1, IEC/EN61558-2-16, IEC/EN60335-1 and CCC GB4943. MCTT-LRS-100 series serves as a high price-to-performance power supply solution for various industrial applications.
Features:
- Universal AC input/ Full range
- Withstand 300VAC surge input for 5 second
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- Miniature size and 1U low profile
- LED indicator for power on
- 100% full load burn-in test
- High operating temperature up to 70℃
- High efficiency, long life and high reliability
- 1 years warranty
Specifications
|
Model |
MCE100-12 |
MCE100-24 |
MCE100-48 |
|
Output |
DC Voltage |
12V |
24V |
48V |
|
Rated Current |
8.5A |
4.5A |
2.3A |
|
Current Range |
0~8.5A |
0~4.5A |
0~2.3A |
|
Rated Power |
102W |
108W |
110.4W |
|
Ripple & Noise |
120mVp-p |
150mVp-p |
200mVp-p |
|
Voltage Adj. Range |
10~ 13.8V |
21.6~28.8V |
43.2~52.8V |
|
Voltage Tolerance |
±1% |
±1% |
±1% |
|
Line Regulation |
±0.5% |
±0.5% |
±0.5% |
|
Load Regulation |
±0.5% |
±0.5% |
±0.5% |
|
Setup, Rise Time |
500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load |
|
Hold Up Time |
55ms/230VAC 10ms/115VAC at full load |
|
Input |
Voltage Range |
85 ~ 264VAC 120~373VDC |
|
Frequency Range |
47 ~ 63Hz |
|
Efficiency |
88% |
90% |
91% |
|
AC Current |
1.9A/115VAC 1.2A/230VAC |
|
Inrush Current |
Cold start, 50A at 230VAC |
|
Leakage Current |
<0.75mA / 240VAC |
|
Protection |
Over Load |
110 ~ 150% rated output power |
|
Protection type: Hiccup mode, recovers automatically after fault condition is removed |
|
Over Voltage |
115%~135% rated output voltage |
|
Protection type: Shut down and latch off o/p voltage, re-power on to recover |
|
Environment |
Working Temp. |
-30 ~ +70℃ (Refer to “Derating Curve”) |
|
Working Humidity |
20 ~ 90% RH non-condensing |
|
Storage Temp., Humidity |
-40 ~ +85℃, 10 ~ 95% RH |
|
Temp. Coefficient |
±0.03%/℃ (0 ~ 50℃) |
|
Vibration |
10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes |
|
Safety |
Safety Standards |
UL60950-1, IEC/EN60950-1, IEC/EN61558-2-16, IEC/EN60335-1, CCC GB4943 approved |
|
Withstand Voltage |
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC,1minute |
|
EMC standards |
EN55022 class B, EN55014, EN61000-3-2,3, EN61000-4,2,3,4,5,6,8,11, GB9254 |
|
Others |
Dimension |
129*97*30mm (L*W*H) |
|
Weight |
0.34Kg |
|
Connection |
7P/9.5mm pitch terminal block |
|
Note |
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance: includes set up tolerance, line regulation and load regulation.
4. Line regulation is measured from low line to high line at rated load.
5. Load regulation is measured from 0% to 100% rated load.
6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
7. Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to increase of the set up time. |
