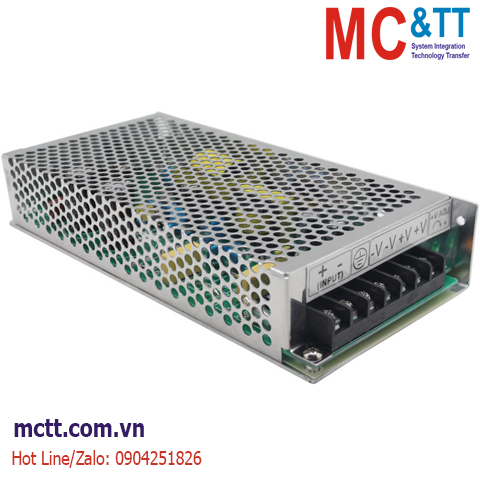

Bộ đổi nguồn DC/DC Leyu SD-150B-48 150W, 48VDC, 3.1A
150W Single Output DC-DC Converter SD-150 series
Features:
- 2:1 wide input range
- Protections: Short circuit / Overload / Over voltage
- 1500VAC I/O isolation
- Built-in EMI filter, low ripple noise
- 100% full load burn-in test
- 24V and 48V input voltage design refer to LVD
- Low cost , High reliability
- 1 years warranty
| SPECIFICATION |
| OUTPUT |
|
| Model |
SD-150B-12 |
SD-150C-12 |
SD-150D-12 |
SD-150B-24 |
SD-150C-24 |
SD-150D-24 |
SD-150B-48 |
SD-150C-48 |
| DC Voltage |
12V |
24V |
48V |
| Rated Current |
12.5A |
6.5A |
3.1A |
| Current Range |
0 ~ 12.5A |
0 ~ 6.5A |
0 ~ 3.1A |
| Rated Power |
150W |
156W |
150W |
| Ripple & Noise |
120mVp-p |
150mVp-p |
150mVp-p |
| Voltage Adj. Range |
11 ~ 16VDC |
21.6 ~ 26.4VDC |
45 ~ 53VDC |
| Voltage Tolerance |
±1.0% |
±1.0% |
±1.0% |
| Line Regulation |
±0.5% |
±0.3% |
±0.3% |
| Load Regulation |
±0.5% |
±0.3% |
±0.3% |
| Setup, Rise Time |
2s, 50ms at full load |
| Hold Up Time |
24ms(only D mode) at full load |
| |
|
| INPUT |
|
| Voltage Range |
B:19 ~ 36VDC C:36 ~ 72VDC D:72 ~144VDC or 85 ~ 132VAC |
| Efficiency |
70% |
73% |
76% |
75% |
77% |
79% |
80% |
82% |
| DC Current |
6.8A/24V |
3.4A/48V |
2.7A/96V |
6.8A/24V |
3.4A/48V |
2.7A/96V |
3.4A/48V |
2.7A/96V |
| Inrush Current |
D:22.5A/96VDC |
| Leakage Current |
<0.75mA / 120VAC (SD-150D) |
| |
|
| PROTECTION |
|
| Over Load |
105 ~ 135% rated output power |
| Protection type: Hiccup mode, recovers automatically after fault condition is removed |
| Over Voltage |
16.8V ~ 20V/10% LOAD |
31.5 ~ 37.5V/10% LOAD |
| Protection type: Hiccup mode, recovers automatically after fault condition is removed |
| |
|
| ENVIRONMENT |
|
| Working Temp. |
-10 ~ +60℃(Refer to “Derating Curve”) |
| Working Humidity |
20 ~ 90% RH non-condensing |
| Storage Temp., Humidity |
-20 ~ +85℃, 10 ~ 95%RH |
| Temp. Coefficient |
±0.03%/℃ (0 ~ 50℃) |
| Vibration |
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
| |
|
| SAFETY & EMC |
|
| Safety Standards |
IEC60950-1 CB approved by TUV (for D type only) |
| Withstand Voltage |
I/P-O/P: 1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
| Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃ / 70% RH |
| EMC Emission |
Compliance to EN55022 (CISPR22) Class B |
| EMC Immunity |
Compliance to EN61000-4-2,3,4,6,8, light industry level, criteria A |
| |
|
| OTHERS |
|
| Dimension |
199*110*50mm (L*W*H) |
| Weight |
0.86Kg |
| Packing |
16pcs/14.5Kg/0.95CUFT |
| |
|
| NOTE |
|
| 1. All parameters NOT specially mentioned are measured at 24,48,96VDC input, rated load and 25℃ of ambient temperature. |
| 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. |
| 3. Tolerance: includes set up tolerance, line regulation and load regulation. |
| 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meetsEMC directives. |
