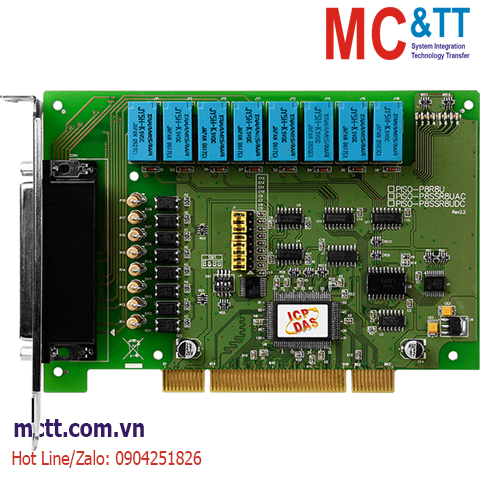

Card PCI 8 kênh DI + 8 kênh Relay ICP DAS PISO-P8R8U CR

Features

  • Universal PCI (3.3 V/5 V) Interface
  • Supports Card ID (SMD Switch)
  • 8-channel Electromechanical Relay Output
  • 8-channel Optically-isolated Digital Input
  • AC Signal Input with Filter
  • Selectable DC Signal Input Filter
  • 5000 Vrms Photo-isolation Protection
  • Onboard Relay Output Status LED Indicators

Introduction

The PISO-P8R8U Universal PCI card supports the 3.3 V/5 V PCI bus, and offers 8 optically-isolated Digital Input channels and 8 electromechanical Relay Output channels. The DI channels provide 5000 Vrms isolation protection that allows the input signals to be completely floated so as to prevent ground loops and isolate the host computer from potentially damaging voltage spikes. The Relay Output channels are used where it is necessary to control a circuit using a low-power signal, with complete electrical isolation between the control and the controlled circuits, or where several circuits must be controlled by a single signal.

The PISO-P8R8U can be used in a variety of applications, such as controlling the ON/OFF state of external devices, driving external relays or small power switches, activating alarms, contact closure, or sensing external voltages or switches, etc.

The PISO-P8R8U cards also include an onboard Card ID switch that enables the board to be recognized via software if two or more PISO-P8R8U cards are installed in the same computer. The PISO-P8R8U is designed as a direct replacement for the PISO-P8R8 without requiring any modification to the software or the driver.

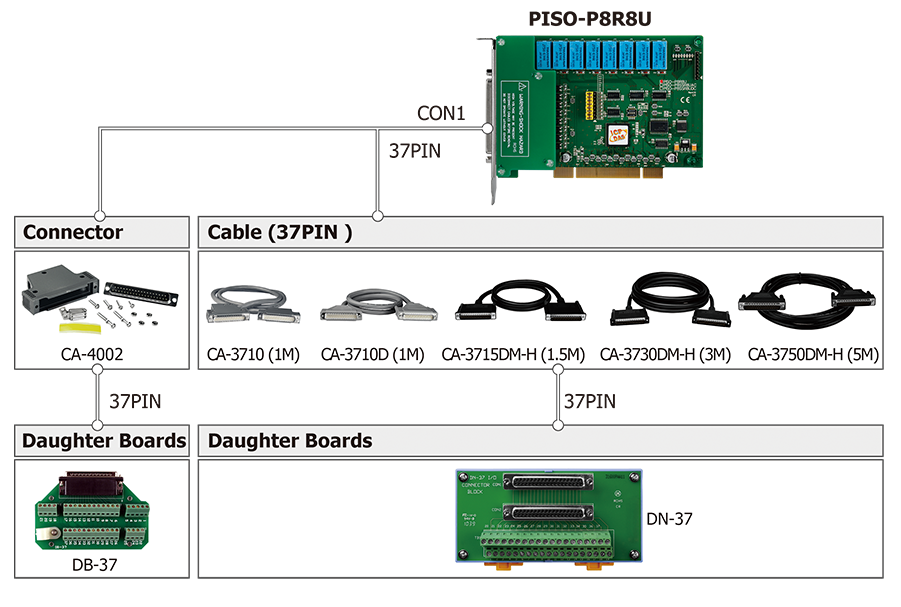

Accessories

Applications

  • DOS Lib and TC/BC/MSC sample program (with source codes)
  • DLL and OCX SDK for Windows 95/98/NT/2K.
  • DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/2008/7/8/10.
  • VB/VC/Delphi/BCB/VB.NET/C#.NET/VC.NET/MATLAB sample programs with source codes.
  • LabVIEW toolkit for Windows.
  • Driver for Linux and DasyLab.

Click to view the Introduction of https://mctt.vn/pci-icp-das

Specifications

Hardware
Card ID Yes (4-bit)
Connector Female DB37 x 1
Digital Input
Channels 8
Type Wet Contact
Photocoupler
Sink/Source (NPN/PNP) Sink/Source
ON Voltage Level AC/DC 5 ~ 24 V (AC 50 ~ 1 kHz)
OFF Voltage Level AC/DC 0 ~ 1 V
Response Speed Without Filter: 50 kHz (Typical)
With Filter: 0.455 kHz(Typical)
Trigger Mode Static Update
Isolation 5000 Vrms
Relay Output
Channels 8
Type SPST N.O.(Form A)
Contact Rating AC: 250 V @ 1.6 A
DC: 30 V @ 5 A
Operate Time 6 ms (Typical)
Release Time 3 ms (Typical)
Electrical Endurance 100,000 ops.
Mechanical Endurance 2,000,000 ops.
PC Bus
Type 3.3 V/5 V Universal PCI, 32-bit, 33 MHz
Data Bus 8-bit
Power
Consumption 300 mA @ +5 V
Mechanical
Dimensions (mm) 105 x 149 x 22 (W x L x D)
Environment
Operating Temperature 0 ~ +60°C
Storage Temperature -20 ~ +70°C
Humidity 5 ~ 85% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

PISO-P8R8U     CR  Universal PCI, 8-ch Isolated DI and 8 Relay Output Board (RoHS)
Includes one CA-4002 D-Sub connector
