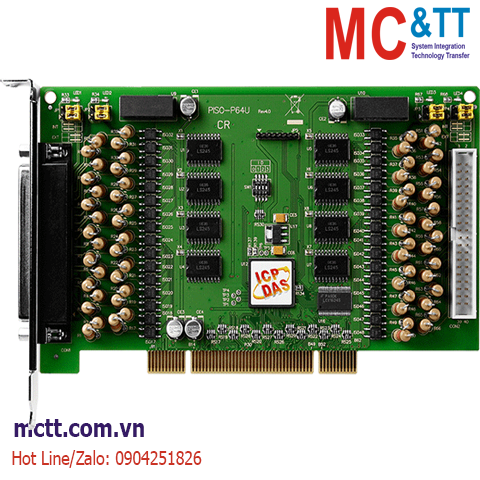

Card PCI 64 kênh đầu vào số DI ICP DAS PISO-P64U-24V CR

Chia sẻ:
Mã sản phẩm: PISO-P64U-24V
Thương hiệu: ICP DAS
Tình trạng:

Universal PCI, 64-ch Isolated DI Board

Liên hệ
Mô tả

Card PCI 64 kênh đầu vào số DI ICP DAS PISO-P64U-24V CR

Features

  • Universal PCI (3.3 V/5 V) Interface
  • Supports Card ID (SMD Switch)
  • 3750 Vrms Photo-isolation Protection
  • Built-in DC/DC Converter with 3000 VDC Isolation
  • 64-channel Optically-isolated Digital Input
    • Jumper-selectable Internal or External Power Source for DI
    • 4 Isolated Banks when using 4 Isolated External Power Supplies

Introduction

The PISO-P64U-24V universal PCI card supports 3.3 V/5 V PCI bus. These cards provide 64 Isolated DI (DI) channels that use either an internal or external power supply that can be selected via a jumper. The internal power is provided by an onboard isolated DC/DC converter that provides 3000 VDC isolation and is used for connecting dry-contact input devices. These DI channels are arranged into four isolated banks when using four isolated external power supplies. DI channels 0 ~ 15 are allocated to bank A, DI channels 16 ~ 31 are allocated to bank B, DI channels 32 ~ 47 are allocated to bank C, and DI channels 48 ~ 63 are allocated to bank D. The onboard photo couplers provide 3750 Vrms isolation, and act as an interface to field logic signals, eliminate ground-loop problems, and isolate the host computer from damaging voltages. These cards contains has a single DB-37 connector and a single 40-pin male header, each of which contains 32 input channels.

The PISO-P64U-24V also adds a Card ID switch on-board. Users can set Card ID and then recognize the board by the ID via software when using two or more PISO-P64U cards in one computer.

The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.

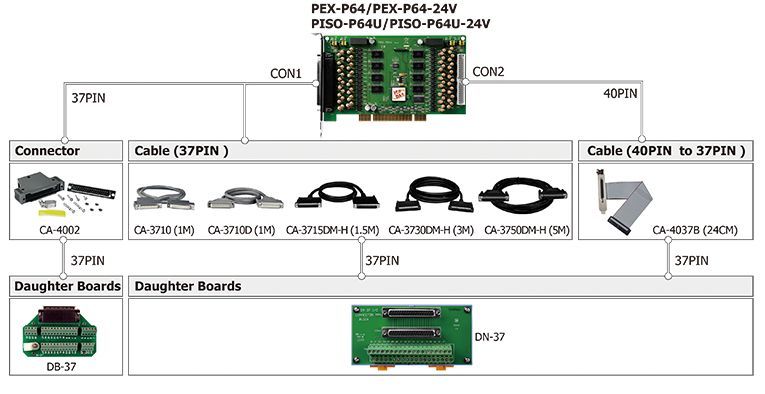

Accessories

Applications

  • DOS Lib and TC/BC/MSC sample program (with source codes)
  • DLL and OCX SDK for Windows 95/98/NT/2K.
  • DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/2008/7/8/10.
  • VB/VC/Delphi/BCB/VB.NET/C#.NET/VC.NET/MATLAB sample programs with source codes.
  • LabVIEW toolkit for Windows.
  • Driver for Linux and DasyLab.

Click to view the Introduction of https://mctt.vn/pci-icp-das

Specifications

Hardware
Card ID Yes (4-bit)
Connector Female DB37 x 1
40-pin Box header x 1
Digital Input
Channels 64
Type Dry + Wet Contact
Photocoupler
Sink/Source (NPN/PNP) Sink/Source
ON Voltage Level Dry: Close to GND
Wet: 20 ~ 28 V (Max 30 V)
OFF Voltage Level Dry: Open
Wet: 0 ~ 1 V
Response Speed 4 kHz (Typical)
Trigger Mode Static Update
Isolation 3750 Vrms (Using external power)
PC Bus
Type 3.3 V/5 V Universal PCI, 32-bit, 33 MHz
Data Bus 8-bit
Power
Consumption 400 mA @ +5 V
Mechanical
Dimensions (mm) 105 x 180 x 22 (W x L x D)
Environment
Operating Temperature 0 ~ +60°C
Storage Temperature -20 ~ +70°C
Humidity 5 ~ 85% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

PISO-P64U-24V     CR  Universal PCI, 64-ch Isolated DI Board (RoHS)
Includes one CA-4037B cable and two CA-4002 D-Sub connectors
