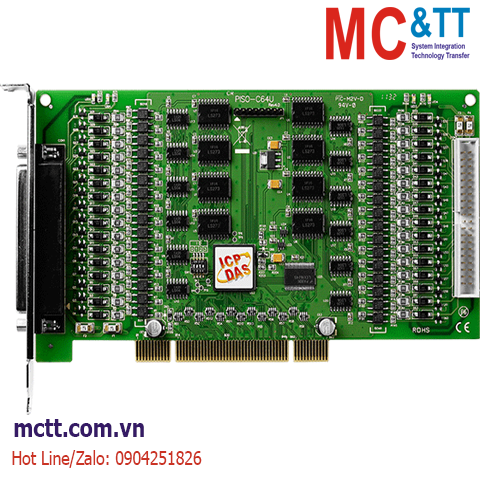

Card PCI 64 kênh đầu ra số DO ICP DAS PISO-C64U CR
Features
- Universal PCI (3.3 V/5 V) Interface
- 64-channel Optically-isolated Open-collector Digital Output
- PISO-C64U: Current Sinking, NPN type
- Supports Card ID (SMD Switch)
- Supports DO Status Readback (Register Level)
- 4 Isolated Banks when using 4 Isolated External Power Supplies
- 3750 Vrms Photo-isolation Protection
Introduction
The PISO-C64U universal PCI card supports 3.3 V/5 V PCI bus. These cards provide 64 Isolated DO (DO) channels, each of which includes a darlington transistor that provides 3750 Vrms isolation, and an integrated suppression diode for inductive load. These DO channels are allocated into four isolated banks when using four isolated external power supplies. These DO channels act as an interface to field logic signals, eliminate ground-loop problems, and isolate the host computer from damaging voltages. These cards contains has a single DB-37 connector and a single 40-pin male header, each of which contains 32 output channels.
The PISO-C64U also adds a Card ID switch on-board. Users can set Card ID and then recognize the board by the ID via software when using two or more PIO-C64U cards in one computer.
The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.

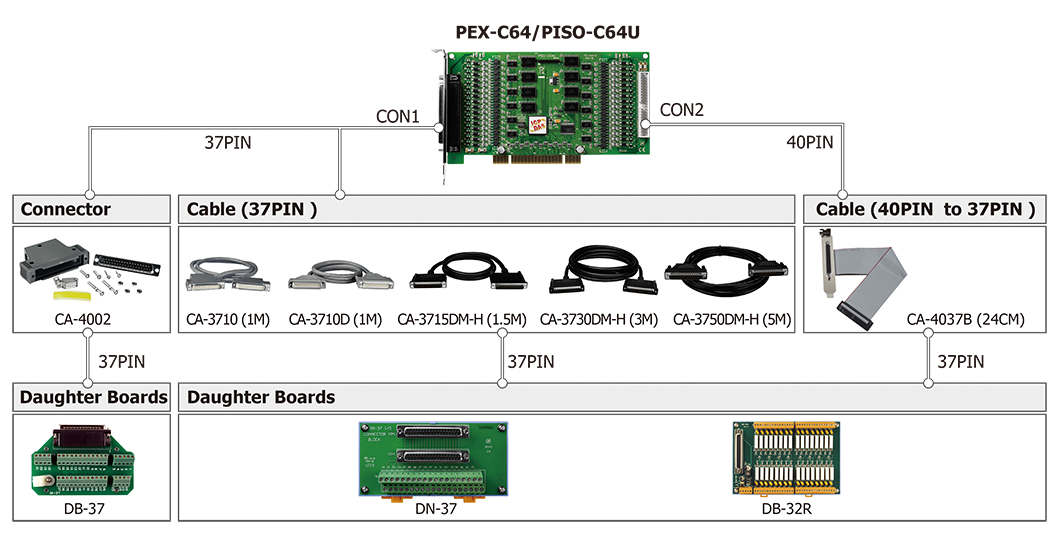

Accessories
Applications
- DOS Lib and TC/BC/MSC sample program (with source codes)
- DLL and OCX SDK for Windows 95/98/NT/2K.
- DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/2008/7/8/10.
- VB/VC/Delphi/BCB/VB.NET/C#.NET/VC.NET/MATLAB sample programs with source codes.
- LabVIEW toolkit for Windows.
- Driver for Linux and DasyLab.
Click to view the Introduction of https://mctt.vn/pci-icp-das
Specifications
| Hardware |
| Card ID |
Yes (4-bit) |
| Connector |
Female DB37 x 1
40-pin box header x 1 |
| Digital Output |
| Channels |
64 |
| Type |
Sink(NPN), Open Collector |
| Operation Mode |
Static Update |
| Load Current |
100 mA/+30 V for each channel @ 60% duty |
| Response Speed |
4 kHz (Typical) |
| Isolation |
3750 Vrms |
| PC Bus |
| Type |
3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus |
8-bit |
| Power |
| Consumption |
400 mA @ +3.3 V
200 mA @ +12 V |
| Mechanical |
| Dimensions (mm) |
105 x 180 x 22 (W x L x D) |
| Environment |
| Operating Temperature |
0 ~ +60°C |
| Storage Temperature |
-20 ~ +70°C |
| Humidity |
5 ~ 85% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| PISO-C64U CR |
Universal PCI, 64-ch Open Collector Isolated (Sink, NPN) DO Board (RoHS)
Includes one CA-4037B cable and two CA-4002 D-Sub connectors |
