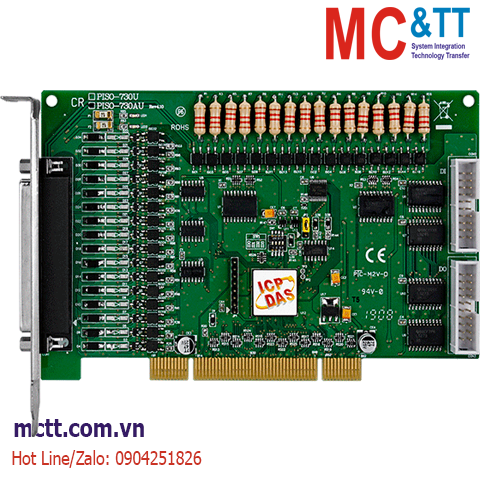

Card PCI 32 kênh vào/ra số DI/DO ICP DAS PISO-730AU CR
Features
- PCI (5 V) Interface
- 16-channel Optically-isolated Digital Input
- 16-channel Optically-isolated Digital Output (Source, NPN)
- 16-channel 5 V/TTL Digital Output
- 16-channel 5 V/TTL Digital Input
- 3750 Vrms Photo-isolation Protection
- 2 Interrupt Sources
Introduction
The PISO-730AU cards provide 32 isolated Digital I/O channels (16 x DI and 16 x DO) and 32 TTL-level Digital I/O channels (16 x DI and 16 x DO). Both the isolated Digital Input and the Digital Output channels use a short optical transmission path to transfer an electronic signal between the elements of a circuit and keep them electrically isolated. With 3750 Vrms isolation protection, the DI/O channels allow the input signals to be completely floated so as to prevent ground loops and isolate the host computer from potentially damaging voltage spikes.
Each Digital Output includes a PNP transistor and an integral suppression diode for the inductive load. The open-collector Digital Output channels are typically used for alarm and warning notifications, signal output control, control for external circuits that require a higher voltage level, or signal transmission applications, etc.

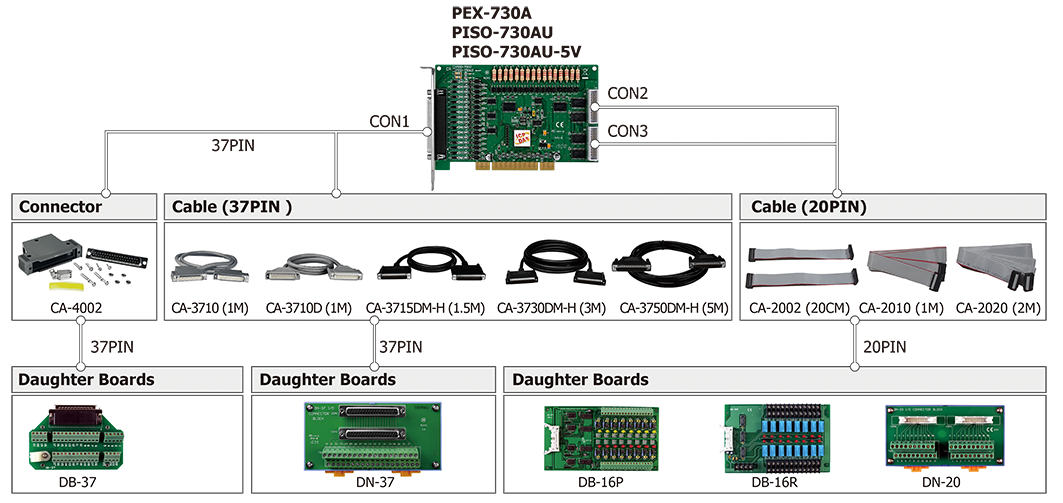

Accessories
Applications
- DOS Lib and TC/BC/MSC sample program (with source codes)
- DLL and OCX SDK for Windows 95/98/NT/2K.
- DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/2008/7/8/10.
- VB/VC/Delphi/BCB/VB.NET/C#.NET/VC.NET/MATLAB sample programs with source codes.
- LabVIEW toolkit for Windows.
- Driver for Linux and DasyLab.
Click to view the Introduction of https://mctt.vn/pci-icp-das
Specifications
| Hardware |
| Card ID |
Yes (4-bit) |
| Connector |
Female DB37 x 1
20-pin box header x 2 |
| Digital Input |
| Channels |
16 (Isolated) + 16 (Non-isolated) |
| Type |
Wet Contact
Isolated: Photocoupler
Non-isolated: 5V/TTL |
| Sink/Source (NPN/PNP) |
Sink/Source |
| ON Voltage Level |
Wet: 9 ~ 24 V (Min. 7 V; Max. 30 V)
TTL: 2.0 V Min. |
| OFF Voltage Level |
Wet: 0 ~ 1 V
TTL: 0.8 V Max. |
| Response Speed |
4 kHz (Typical) (Isolated)
1.0 MHz (Typical) (Non-isolate) |
| Trigger Mode |
Static Update |
| Isolation |
3750 Vrms (Isolated) |
| Digital Output |
| Channels |
16 (Isolated) + 16 (Non-isolated ) |
| Type |
Isolated: Open Emitter
Non-isolated: 5V/TTL |
| Sink/Source (NPN/PNP) |
Source (PNP) |
| Operation Mode |
Static Update |
| Load Voltage |
Non-isolated:
Logic 0: 0.4 V max.
Logic 1: 2.4 V min. |
| Load Current |
100 mA/+30 V for each channel @ 100% duty (Isolated)
Sink: 2.4 mA @ 0.8 V (Non-isolated)
Source: 0.8 mA @ 2.0 V (Non-isolated) |
| Response Speed |
4 kHz (Typical) (Isolated)
1.2 MHz (Typical) (Non-isolate) |
| Isolation |
3750 Vrms (Isolated) |
| PC Bus |
| Type |
3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus |
8-bit |
| Power |
| Consumption |
640 mA @ +5 V |
| Mechanical |
| Dimensions (mm) |
105.06 x 163.68 x 22 (W x L x D) |
| Environment |
| Operating Temperature |
0 ~ +60°C |
| Storage Temperature |
-20 ~ +70°C |
| Humidity |
5 ~ 85% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| PISO-730AU CR |
Universal PCI, 32-ch Isolated Digital I/O and 32-ch TTL Digital I/O Board (Source, PNP) (RoHS)
Includes one CA-4002 D-Sub connector |
