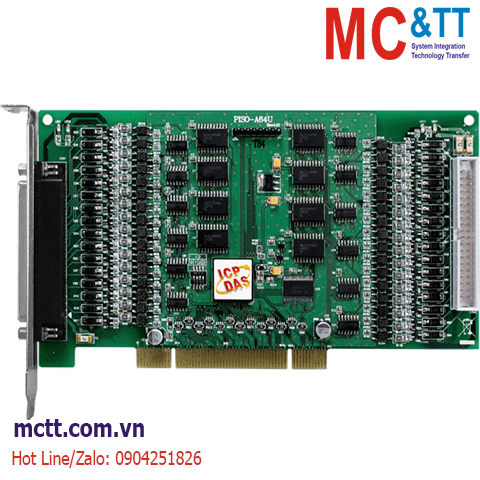

Card PCI 64 kênh đầu ra số DO ICP DAS PISO-A64U CR
Features
- Universal PCI (3.3 V/5 V) Interface
- 64-channel Optically-isolated Open-collector Digital Output
- PISO-A64U: Current Sourcing, PNP type
- Supports Card ID (SMD Switch)
- Supports DO Status Readback (Register Level)
- 4 Isolated Banks when using 4 Isolated External Power Supplies
- 3750 Vrms Photo-isolation Protection
Introduction
The PISO-A64U universal PCI card supports 3.3 V/5 V PCI bus. These cards provide 64 Isolated DO channels, each of which offers a PNP transistor and an integrated suppression diode for the inductive load. The isolated DO channels use a short optical transmission path to transfer an electronic signal between the elements of a circuit and keep them electrically isolated. The open collector outputs (DO channels) are typically used for alarm and warning notification, signal output control, control for external circuits that require a higher voltage level, and signal transmission applications, etc. The board acts as an interface to field logic signals, eliminates ground-loop problems, and isolates the host computer from damaging voltages. These cards have a DB-37 connector and a 40-pin male header, each of which contains 32 output channels.
The PISO-A64U also adds a Card ID switch on-board. Users can set Card ID and then recognizes the board by the ID via software when using two or more PISO-A64U cards in one computer.
The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.

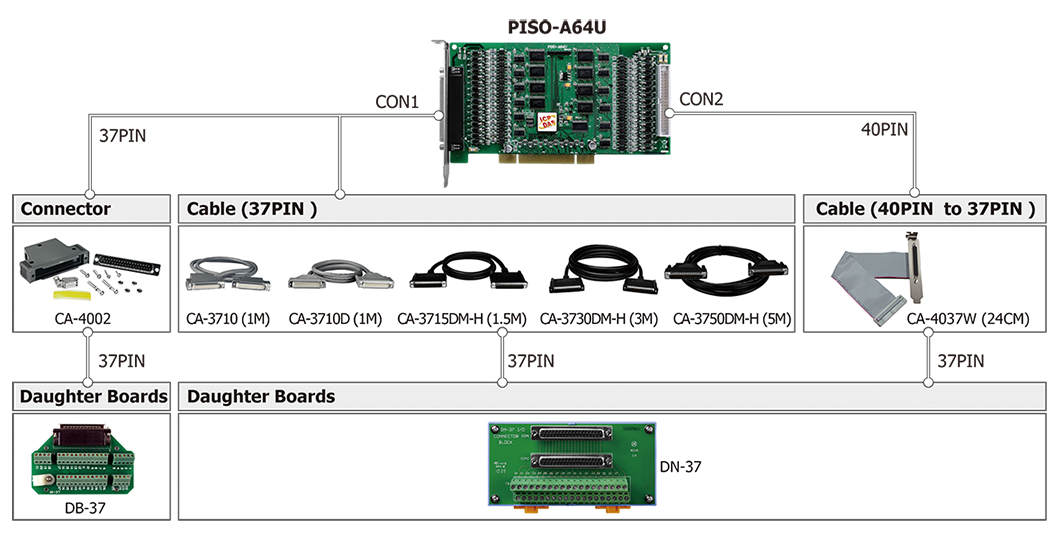

Accessories
Applications
- DOS Lib and TC/BC/MSC sample program (with source codes)
- DLL and OCX SDK for Windows 95/98/NT/2K.
- DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/2008/7/8/10.
- VB/VC/Delphi/BCB/VB.NET/C#.NET/VC.NET/MATLAB sample programs with source codes.
- LabVIEW toolkit for Windows.
- Driver for Linux and DasyLab.
Click to view the Introduction of https://mctt.vn/pci-icp-das
Specifications
| Hardware |
| Card ID |
Yes (4-bit) |
| Connector |
Female DB37 x 1
40-pin Box header x 1 |
| Digital Output |
| Channels |
64 |
| Type |
Source(PNP), Open Emitter |
| Operation Mode |
Static Update |
| Load Current |
100 mA/+30 V for each channel @ 60% duty |
| Response Speed |
4 kHz (Typical) |
| Isolation |
3750 Vrms |
| PC Bus |
| Type |
3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus |
8-bit |
| Power |
| Consumption |
800 mA @ +5 V |
| Mechanical |
| Dimensions (mm) |
105 x 180 x 22 (W x L x D) |
| Environment |
| Operating Temperature |
0 ~ +60°C |
| Storage Temperature |
-20 ~ +70°C |
| Humidity |
5 ~ 85% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| PISO-A64U CR |
Universal PCI, 64-ch Open Collector Isolated (Source, PNP) DO Board
Includes one CA-4037B cable and two CA-4002 D-Sub connectors |
