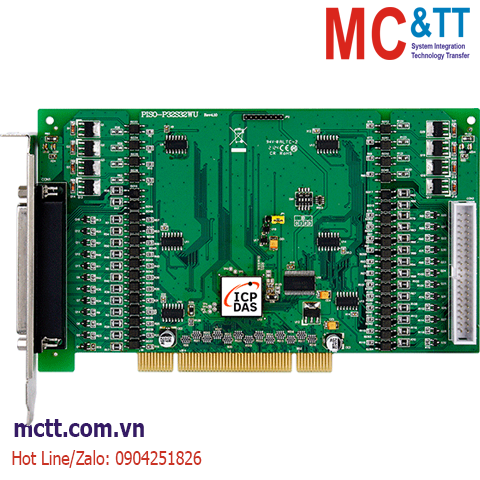

Card PCI 32 kênh DI + 32 kênh DO ICP DAS PISO-P32S32WU CR
Features
- Universal PCI (3.3 V/5 V) Interface
- Supports Card ID (SMD Switch)
- 3750 Vrms Photo-isolation Protection
- Input Range up to 30 VDC
- 32 Optically-isolated Digital Input Channels
- 32 Optically-isolated Digital Output Channels (Sink, NPN)
- 100 mA (24 Channels) Low Driving
- 500 mA (8 Channels) High Driving
Introduction
PISO-P32S32WU has 32 channels of Isolated DI and 32 channels of Isolated open-collector output board (8-channel for 500 mA and 24-channel for 100 mA current sinking output, NPN), arranged into four isolated banks. Each input channel use a photo-coupler to isolate the card and computer from external signal. Each DO offers a NPN transistor and integral suppression diode for inductive load. PISO-P32S32WU requires external power to drive the D/I and D/O ports and supports Card ID (jumper) features for multi-board identification and supports both 5 V and 3.3 V PCI slot.
This interface board is easily installed in any PC. The board interface to field logic signals, eliminating ground-loop problems and isolating the host computer from damaging voltages. PISO-P32S32WU has one 37-pin D-Sub connector and one 40-pin male header. The 40-pin to DB-37 flat cable is used to fix with the case. The user can connect the digital signal through the second D-Sub connector. Each D-Sub connector contains 16 input channels and 16 output channels.
The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.

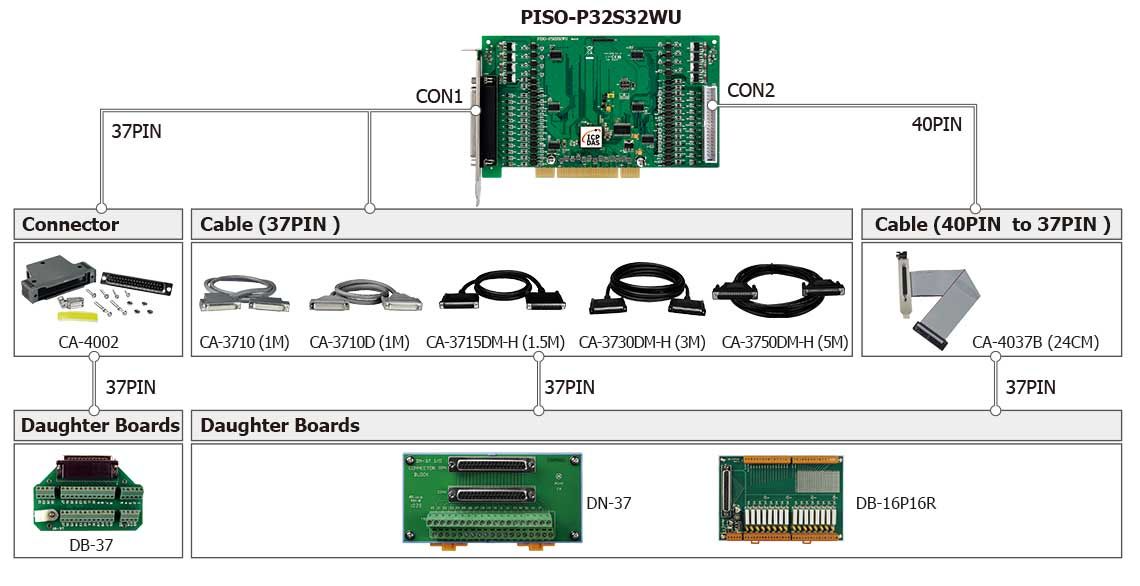

Accessories
Applications
- DOS Lib and TC/BC/MSC sample program (with source codes)
- DLL and OCX SDK for Windows 95/98/NT/2K.
- DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/2008/7/8/10.
- VB/VC/Delphi/BCB/VB.NET/C#.NET/VC.NET/MATLAB sample programs with source codes.
- LabVIEW toolkit for Windows.
- Driver for Linux and DasyLab.
Click to view the Introduction of https://mctt.vn/pci-icp-das
Specifications
| Hardware |
| Card ID |
Yes (4-bit) for version 1.5 or above |
| Connector |
Female DB37 x 1
40-pin box header x 1 |
| Digital Input |
| Channels |
32 |
| Type |
Wet Contact
Photocoupler |
| Sink/Source (NPN/PNP) |
Sink/Source |
| ON Voltage Level |
9 ~ 24 V |
| OFF Voltage Level |
0 ~ 1 V |
| Response Speed |
4 kHz (Typical) |
| Trigger Mode |
Static Update |
| Isolation |
3750 Vrms (Using external power) |
| Digital Output |
| Channels |
32 |
| Type |
Open Collector |
| Sink/Source (NPN/PNP) |
Sink (NPN) |
| Operation Mode |
Static Update |
| Load Current |
500 mA for one high driving channel @ 100% duty
500 mA for all high driving channels @ 100% duty
(The GND pins all must be connected with GND of External Power)
100 mA for one low driving channel @ 100% duty
100 mA for all low driving channels @ 100% duty
(The GND pins all must be connected with GND of External Power) |
| Response Speed |
4 kHz (Typical) |
| Isolation |
3750 Vrms (Using external power) |
| PC Bus |
| Type |
3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus |
8-bit |
| Power |
| Consumption |
600 mA @ +5 V |
| Mechanical |
| Dimensions (mm) |
105 x 180 x 22 (W x L x D) |
| Environment |
| Operating Temperature |
0 ~ +60°C |
| Storage Temperature |
-20 ~ +70°C |
| Humidity |
5 ~ 85% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| PISO-P32S32WU CR |
Universal PCI, 32-ch Optical Isolated DI and 32-ch Open Collector Isolated (Sink, NPN) DO Board (RoHS) Includes one CA-4037B cable and two CA-4002 D-Sub connectors |
