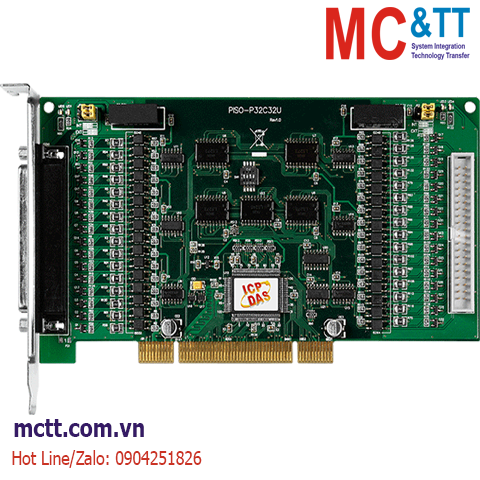

Card PCI 32 kênh DI + 32 kênh DO ICP DAS PISO-P32C32U-5V CR
Features
- Universal PCI (3.3 V/5 V) Interface
- 32 Optically-isolated Digital Input Channels
- 32 Optically-isolated Digital Output Channels (Sink, NPN)
- Supports DO Status Readback (Register Level)
- 3750 Vrms Photo-isolation Protection
- Four Isolated Banks
- Built-in DC/DC Converter with 3000 VDC Isolation
- Supports Card ID (SMD Switch)
Introduction
The PISO-P32C32U-5V universal PCI card supports 3.3 V/5 V PCI bus. These cards provide 32 channels of Isolated DIs and 32 channels of Isolated DOs, arranged into four isolated banks. Each input channel uses a photo-coupler input which allows either internal isolated power supply or external power selected by jumper. Each DO offers a Darlington transistor. The power supply of the input port may use the external power or the power from the PC side via DC/DC converter. The power supply of the output port should use the external power. The board eliminates ground-loop problems and isolates the host computer from damaging voltages.
The PISO-P32C32U-5V also adds a Card ID switch. Users can set Card ID on a board and recognize the board by the ID via software when using two or more PISO-P32C32U-5V cards in one computer.
The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.

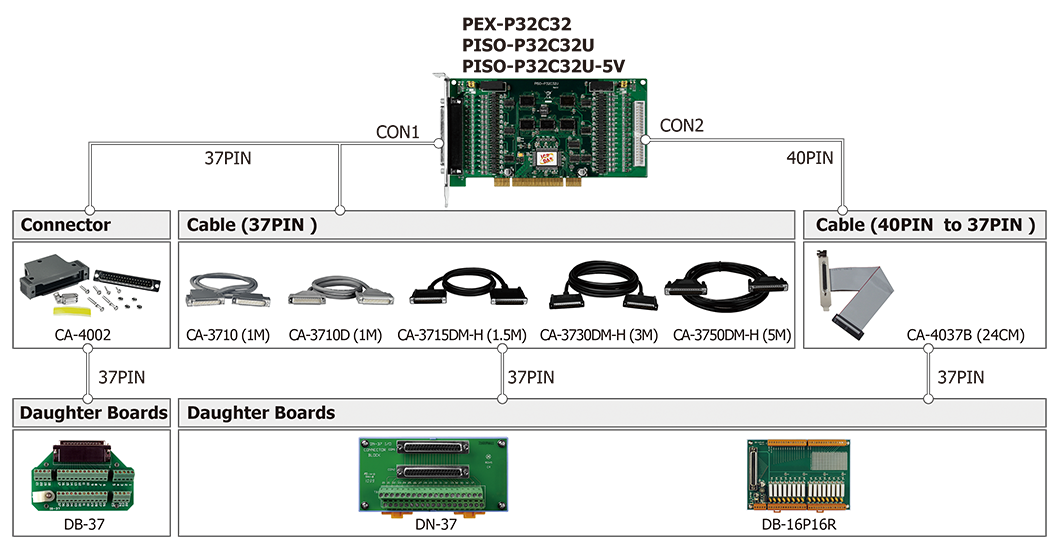

Accessories
Applications
- DOS Lib and TC/BC/MSC sample program (with source codes)
- DLL and OCX SDK for Windows 95/98/NT/2K.
- DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/2008/7/8/10.
- VB/VC/Delphi/BCB/VB.NET/C#.NET/VC.NET/MATLAB sample programs with source codes.
- LabVIEW toolkit for Windows.
- Driver for Linux and DasyLab.
Click to view the Introduction of https://mctt.vn/pci-icp-das
Specifications
| Hardware |
| Card ID |
Yes (4-bit) for Version 1.1 or above |
| Connector |
Female DB37 x 1
40-pin box header x 1 |
| Digital Input |
| Channels |
32 |
| Type |
Wet Contact
Photocoupler |
| Sink/Source (NPN/PNP) |
Sink/Source |
| ON Voltage Level |
Dry: Close to GND
Wet: 5 ~ 12 V(Min. 3.5 V; Max. 16 V) |
| OFF Voltage Level |
Dry: Open
Wet: 0 ~ 1 V |
| Response Speed |
4 kHz (Typical) |
| Trigger Mode |
Static Update |
| Isolation |
3750 Vrms (Using external power) |
| Digital Output |
| Channels |
32 |
| Type |
Open Collector |
| Sink/Source (NPN/PNP) |
Sink (NPN) |
| Operation Mode |
Static Update |
| Load Current |
100 mA/+30 V for each channel @ 100% duty |
| Response Speed |
4 kHz (Typical) |
| Isolation |
3750 Vrms |
| PC Bus |
| Type |
3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus |
8-bit |
| Power |
| Consumption |
600 mA @ +5 V |
| Mechanical |
| Dimensions (mm) |
105 x 180 x 22 (W x L x D) |
| Environment |
| Operating Temperature |
0 ~ +60°C |
| Storage Temperature |
-20 ~ +70°C |
| Humidity |
5 ~ 85% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| PISO-P32C32U-5V CR |
Universal PCI, 32-ch Isolated DI and 32-ch Open Collector Isolated (Sink, NPN) DO Board (RoHS) Includes one CA-4037B cable and two CA-4002 D-Sub connectors |
