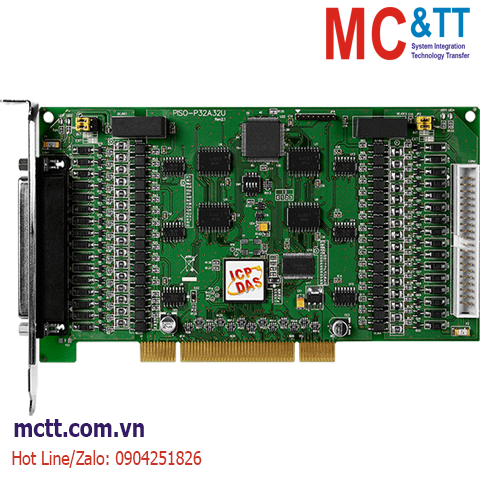

Card PCI 32 kênh DI + 32 kênh DO ICP DAS PISO-P32A32U-5V CR
Features
- Universal PCI (3.3 V/5 V) Interface
- 32 Optically-isolated Digital Input Channels
- 32 Optically-isolated Digital Output Channels (Source, PNP)
- Supports DO Status Readback (Register Level)
- 3750 Vrms Photo-isolation Protection
- Built-in DC/DC Converter with 3000 VDC Isolation
- Supports Card ID (SMD Switch)
Introduction
The PISO-P32A32U-5V universal PCI card supports 3.3 V/5 V PCI bus. These cards provide 32 optically-isolated DI channels and 32 optically-isolated DO channels, arranged into four isolated banks. Each DO channel includes a PNP transistor and an integral suppression diode for the inductive load. Isolated input channels 0-15 are allocated to Group A, while channels 16-31 are allocated to Group B. Isolated output channels are allocated to Groups C and D. The photocoupler input for the PISO-P32A32U-5V can be powered by either an internal current source or an external power supply, while the input for the PISO-P32A32U-5V operates using an external power supply only.
Each Digital Output channel includes a PNP transistor and an integral suppression diode for the inductive load. Isolated input channels 0 - 15 are allocated to Group A, while channels 16 - 31 are allocated to Group B. Isolated output channels are allocated to Groups C and D. The photocoupler input for the PISO-P32A32-5V can be powered by using either an internal current source or an external power supply, while the input for the PISO-P32A32U operates using an external power supply only.
The PISO-P32A32U-5V also include an onboard Card ID switch that enables the board to be recognized via software if two or more boards in the same computer.
The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.
Accessories
Applications
- DOS Lib and TC/BC/MSC sample program (with source codes)
- DLL and OCX SDK for Windows 95/98/NT/2K.
- DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/2008/7/8/10.
- VB/VC/Delphi/BCB/VB.NET/C#.NET/VC.NET/MATLAB sample programs with source codes.
- LabVIEW toolkit for Windows.
- Driver for Linux and DasyLab.
Click to view the Introduction of https://mctt.vn/pci-icp-das
Specifications
| Hardware |
| Card ID |
Yes (4-bit) for Version 4.0 or above |
| Connector |
Female DB37 x 1
40-pin box header x 1 |
| Digital Input |
| Channels |
32 |
| Type |
Wet Contact
Photocoupler |
| Sink/Source (NPN/PNP) |
Sink/Source |
| ON Voltage Level |
Dry: Close to GND
Wet: 5 ~ 12 V (Min. 3.5 V; Max. 16 V) |
| OFF Voltage Level |
Dry: Open
Wet: 0 ~ 1 V |
| Response Speed |
4 kHz (Typical) |
| Trigger Mode |
Static Update |
| Isolation |
3750 Vrms (Using external power) |
| Digital Output |
| Channels |
32 |
| Type |
Open Emitter |
| Sink/Source (NPN/PNP) |
Source (PNP) |
| Operation Mode |
Static Update |
| Load Voltage |
100 mA/+30 V for each channel @ 100% duty |
| Response Speed |
4 kHz (Typical) |
| Isolation |
3750 Vrms |
| PC Bus |
| Type |
3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus |
8-bit |
| Power |
| Consumption |
600 mA @ +5 V |
| Mechanical |
| Dimensions (mm) |
105 x 180 x 22 (W x L x D) |
| Environment |
| Operating Temperature |
0 ~ +60°C |
| Storage Temperature |
-20 ~ +70°C |
| Humidity |
5 ~ 85% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| PISO-P32A32U-5V CR |
Universal PCI, 32-ch Optical Isolated DI and 32-ch Open Collector Isolated (Source, PNP) DO Board (RoHS) Includes one CA-4037B cable and two CA-4002 D-Sub connectors |
