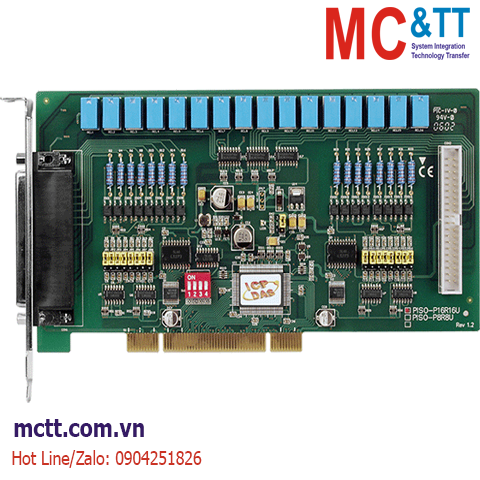

Card PCI 16 kênh DI + 16 kênh Relay ICP DAS PISO-P16R16U CR
Features
- Universal PCI (3.3 V/5 V) Interface
- Supports Card ID (SMD Switch)
- 16-channel Relay Output
- 16-channel Optically-isolated Digital Input
- 3750 Vrms Photo-isolation Protection
- Selectable DC Signal Input Filter
- AC Signal Input with Filter
Introduction
The PISO-P16R16U is a Universal PCI card supporting both the 3.3 V and 5 V PCI bus, and contains 16 photocoupler Digital Input channels that provide 3750 Vrms isolation protection, allowing the input signals to be completely floated so as to prevent ground loops and isolate the host computer from potentially damaging voltage spikes. The cards are also equipped with 16 Relay Output channels to enable the control of the ON/OFF state of external devices, drive external relays or small power switches, or activate alarms, etc.
The PISO-P16R16U card is fully compatible with the PISO-P16R16 card, and is designed as a direct replacement without requiring any modification to the software or the driver.
Comparsion
| Model Name |
PCI-P16R16U |
PISO-P16R16U |
PEX-P16R16i |
PEX-P8R8i |
| Bus |
Universal PCI |
Universal PCI |
PCI Express x1 |
| Relays |
Form C x 8
Form A x 8 |
Form C x 4
Form A x 4 |
| DI |
16-ch with 5000 Vrms
Isolation |
16-ch with 3750 Vrms
Isolation |
8-ch with 3750 Vrms
Isolation |
| Card ID |
- |
Yes (4-bit) |
| Data bus |
16-bit |
8-bit |
| Driver |
UniDAQ SDK/Driver, or
PCI-P16R16 SDK/Driver |
UniDAQ SDK/Driver, or PISO-DIO SDK/Driver |
| Remarks |
- |
Suggested for new users. |

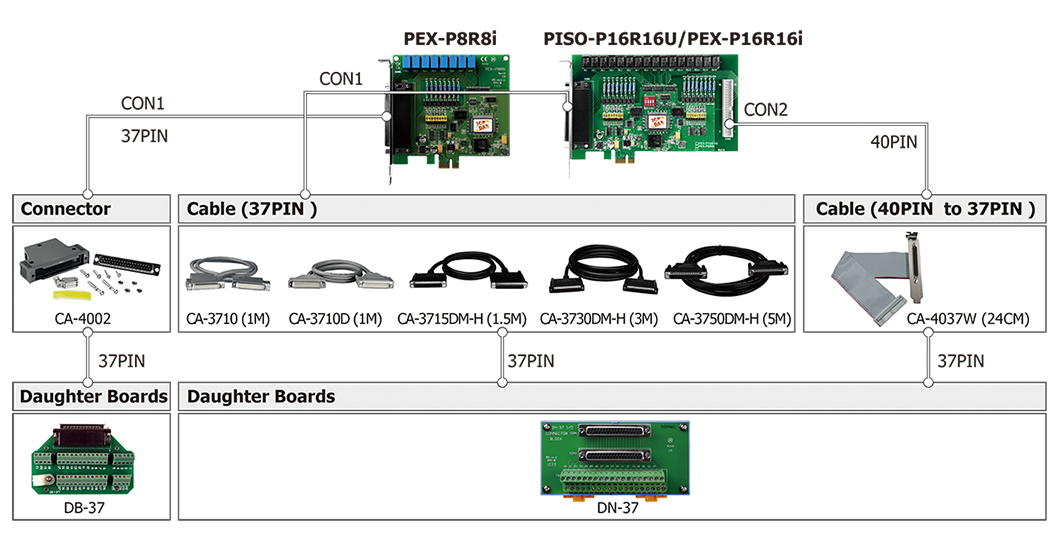

Accessories
Applications
- DOS Lib and TC/BC/MSC sample program (with source codes)
- DLL and OCX SDK for Windows 95/98/NT/2K.
- DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/2008/7/8/10.
- VB/VC/Delphi/BCB/VB.NET/C#.NET/VC.NET/MATLAB sample programs with source codes.
- LabVIEW toolkit for Windows.
- Driver for Linux and DasyLab.
Click to view the Introduction of https://mctt.vn/pci-icp-das
Specifications
| Hardware |
| Connector |
Female DB37 x 1
40-pin box header x 1 |
| Digital Input |
| Channels |
16 |
| Type |
Wet Contact
Photocoupler |
| Sink/Source (NPN/PNP) |
Sink/Source |
| ON Voltage Level |
AC/DC 5 ~ 24 V (AC 50 ~ 1 kHz) |
| OFF Voltage Level |
AC/DC 0 ~ 1 V |
| Response Speed |
Without Filter: 50 kHz (Typical)
With Filter: 0.455 kHz(Typical) |
| Trigger Mode |
Static Update |
| Isolation |
3750 Vrms |
| Relay Output |
| Channels |
16 |
| Type |
8 SPDT, 8 SPST |
| Contact Rating |
AC:120 V @ 0.5 A
DC: 24 V @ 1 A |
| Operate Time |
1 ms (Typical) |
| Release Time |
7 ms (Typical) |
| Electrical Endurance |
100,000 ops. |
| Mechanical Endurance |
5,000,000 ops. |
| PC Bus |
| Type |
3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus |
8-bit |
| Power |
| Consumption |
800 mA @ +5 V |
| Mechanical |
| Dimensions (mm) |
105 x 183 x 22 (W x L x D) |
| Environment |
| Operating Temperature |
0 ~ +60°C |
| Storage Temperature |
-20 ~ +70°C |
| Humidity |
5 ~ 85% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| PISO-P16R16U CR |
Universal PCI, 16-ch Isolated DI, 16-ch Relay Output Board (RoHS)
Includes one CA-4037W cable and two CA-4002 D-Sub connectors |
