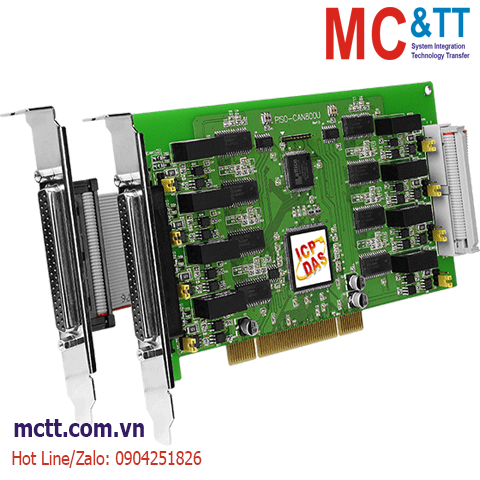

Card PCI 8 cổng CAN ICP DAS PISO-CAN800U-D CR
Features
- Eight CAN bus communication ports
- Compatible with CAN specification 2.0 parts A and B
- On-board optical isolation protection
- Programmable transfer rate up to 1 Mbps
- 2500 Vrms photo couple isolation on the CAN bus
- Jumper select 120Ω terminal resistor for each port
- Direct memory mapping to the CAN controllers
- 33MHz 32bit 5V PCI bus (V2.1) plug and play
Introduction

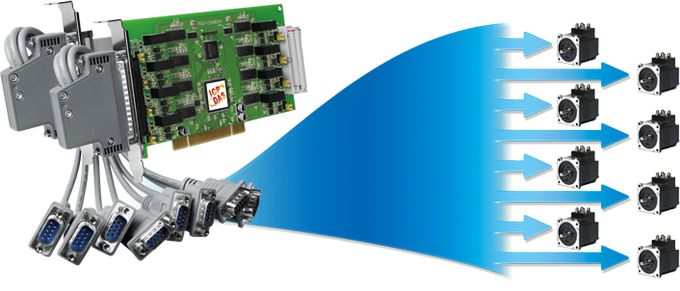

The CAN (Controller Area Network) is a serial communication protocol, and efficiently supports distributed real-time control with a very high level of security. It is an especially suit for networking "intelligent" devices as well as sensors and actuators within a system or sub-system. In CAN networks, there is no addressing of subscribers or stations in the conventional sense, but instead prioritized messages are transmitted. As standalone CAN controller, PISO-CAN800U-D can represent an economic solution of an active CAN board. It has eight independent CAN bus communication ports and has the ability to cover a wide range of CAN applications. Besides, PISO-CAN800U-D uses the new CAN controller Phillips SJA1000T and transceiver TJA1042, which provide bus arbitration, error detection with auto correction and re-transmission function. It can be installed in a 5V PCI slot and supported truly “Plug & play”.
Applications
- CAN bus communication application
- DeviceNet, CANopen, CAN J1939, SDS(System Wide Network) protocol application
- Control System
- Building Automation
- Factory Automation
- Distributed data acquisition
Click to view the Introduction of https://mctt.vn/can-bus-icp-das
Specifications
| Software |
| Driver |
Windows XP/7/8/10 (32-bit/64-bit OS), Linux 2.6.x ~ 5.4.0, LabView, InduSoft |
| SDK |
VB 6.0, VC++ 6.0, BCB 6.0, Delphi 4.0, C#.Net, VB.Net |
| PC Bus |
| Type |
Universal PCI, 3.3 V and 5 V, 33 MHz, 32-bit, plug and play |
| CAN |
| Controller |
NXP SJA1000T with 16 MHz clock |
| Ports |
8 |
| Baud Rate |
10 k ~ 1 M bps |
| Isolation |
3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor |
Jumper for 120 Ω terminal resistor |
| Power |
| Consumption |
800 mA @ 5 V |
| Mechanical |
| Dimensions (mm) |
193 x 93 x 22 (W x L x D) |
| Environment |
| Operating Temperature |
0 ~ +60 °C |
| Storage Temperature |
-20 ~ +70 °C |
| Humidity |
5 ~ 85% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| PISO-CAN800U-D CR |
8-port Isolated Protection CAN Universal PCI Card (RoHS) |
