Features
- Universal PCI (3.3 V/5 V) Interface
- 8-channel Electromechanical Relay Output
- Supports Status Readback
- Onboard Status LED Indicators
- 8-channel Optically-isolated Digital Input
- 3750 Vrms Photo-isolation Protection
- State-changed Interrupt for all Digital Inputs
- Jumper-selectable Isolated or Non-isolated Digital Inputs
Introduction
The PISO-725U universal PCI card supports 3.3 V/5 V PCI bus. These cards contain 8 electromechanical Relay Output channels and 8 isolated or non-isolated DI channels. The DI channels can be set to either isolated or non-isolated via a hardware jumper, and each channel will generate an interrupt signal if the state is changed, which is very useful when monitoring for contact closures/openings as it is not necessary to continuously poll the inputs. The isolated DI channels use a short optical transmission path to transfer an electronic signal between elements of a circuit and keep them electrically isolated. With 3750 Vrms isolation protection, the DI channels allow the input signals to be completely floated so as to prevent ground loops and isolate the host computer from damaging voltages. The Relay Output channels are used where it is necessary to control a circuit using a low-power signal, with complete electrical isolation between the control and controlled circuits, or where several circuits must be controlled by one signal. All relays are de-energized (switched off) during power-on, and support ON/OFF status read back. The PISO-725U can be used in a variety of applications, including contact closure, external voltage sensing, load sensing and I/O control, etc.
The PISO-725U also adds a Card ID switch on-board. Users can set Card ID and then recognizes the board by the ID via software when using two or more cards in one computer.
The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.

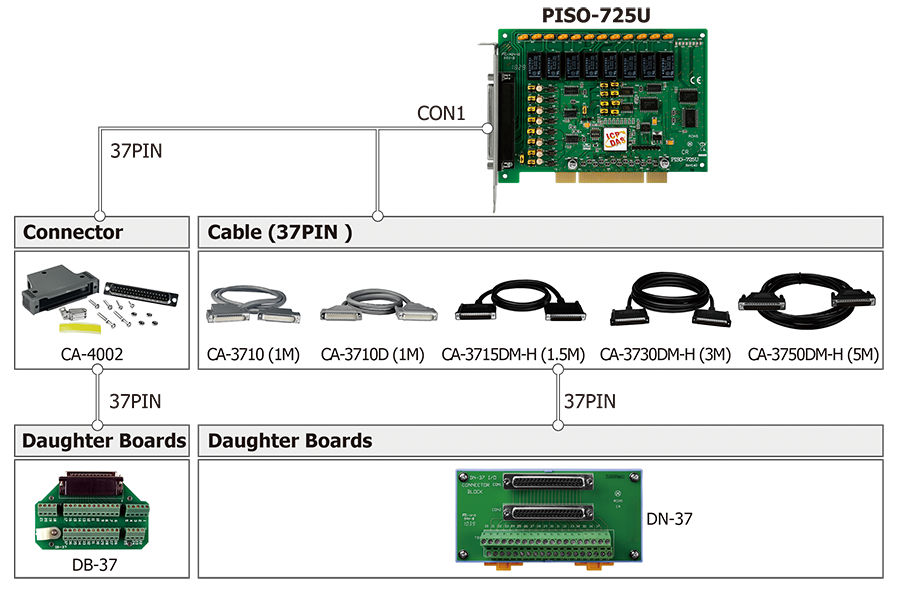

Accessories
Applications
- DOS Lib and TC/BC/MSC sample program (with source codes)
- DLL and OCX SDK for Windows 95/98/NT/2K.
- DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/2008/7/8/10.
- VB/VC/Delphi/BCB/VB.NET/C#.NET/VC.NET/MATLAB sample programs with source codes.
- LabVIEW toolkit for Windows.
- Driver for Linux and DasyLab.
Click to view the Introduction of https://mctt.vn/pci-icp-das
Specifications
| Hardware |
| Connector |
Female DB37 x 1 |
| Digital Input |
| Channels |
8 (Photocoupler) |
| Sink/Source (NPN/PNP) |
Sink |
| ON Voltage Level |
9 ~ 24 V |
| OFF Voltage Level |
0 ~ 1 V |
| Response Speed |
4 kHz (Typical) |
| Trigger Mode |
Static Update |
| Isolation |
3750 Vrms (Using external power) |
| Relay Output |
| Channels |
8 |
| Type |
Form C |
| Contact Rating |
AC: 0.3 A/120 V
DC: 1 A/30 V |
| Operate Time |
5 ms (Typical) |
| Release Time |
10 ms (Typical) |
| PC Bus |
| Type |
3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus |
8-bit |
| Power |
| Consumption |
300 mA @ +5 V |
| Mechanical |
| Dimensions (mm) |
110 x 150 x 22 (W x L x D) |
| Environment |
| Operating Temperature |
0 ~ +60°C |
| Storage Temperature |
-20 ~ +70°C |
| Humidity |
5 ~ 85% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| PISO-725U CR |
Universal PCI, 8-ch Relay Output and 8-ch Isolated DI Board (RoHS)
Includes one CA-4002 D-Sub connector |
