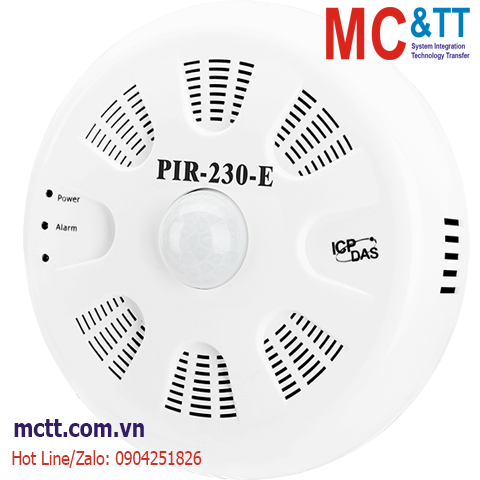

Module phát hiện chuyển động PIR + đo nhiệt/ẩm ICP DAS PIR-230-E CR
Feature
- Adjustable Time-Delay / Lux / Sensitivity (Lux/Sensitivity PIR-230 Only)
- Internal Photosensor for Smart Switch Control
- LED Indicator for PIR/Temperature Sensor
- Temperature Sensor for Measuring Room Temperature
- Suitable as either Temperature or Fire Alarm
- Relay Output Can be Used to Control Light Via the PIR/Temperature Sensor
- Suitable for loads up to 1500 W (Incandescent) and 300 W (Fluorescent)
- Fluorescent (T8) Loading Capability
- Wide range of Communication Interfaces and Protocols
- Compatible with IEEE802.11b/g/n standards (PIR-230/PIR-231 Only)
- Support infrastructure and limit-AP modes for wireless networks (PIR-230-WF/PIR-231-WF Only)
- Ceiling or Surface-Mount Design
Introduction
PIR series modules have the ability to detect infrared waves generated by the human body within a diameter of approximately 8 meters, with a coverage area of 360° for indoor motion detection. The modules can be configured to automatically switch on a light if motion is detected. The modules also contain a temperature and humidity sensor for measuring indoor temperature and humidity, or it can be configured to activate a fire alarm. A wide range of interface connections can be selected to suit individual needs, including RS-485/Ethernet/Wi-Fi, provide support for the DCON and Modbus RTU/TCP protocols, and can be easily integrated into existing HMI/SCADA/central control systems. A free Utility is also included that allows configuration information and data to be displayed in a powerful chart format that can be exported to Microsoft Excel.
The screw-free quick-connect connector and the DIP and rotary switches make the modules easy to install, repair, and maintain. The casing of each module is made from UL94-V2 rated fireproof material, and the white minimalist exterior design ensures that it is easy to match with interior decoration.
Application
- Lighting and exhaust fans in public toilets
- Common lighting in staircases
- Lighting in parking areas
- Garden lights
- Lighting for changing rooms in shops
- Corridor lighting, and many more situations
Click to view the https://mctt.vn/pir-motion-detector-icp-das.
Specifications
| EMS Protection |
| EFT (IEC 61000-4-4) |
±4 kV for Power Line |
| ESD (IEC 61000-4-2) |
±4 kV Contact for each Terminal, ±8 kV Air for Random Point |
| LED Indicators |
| Status |
Yes, 1 as Power/Communication Indicator. 1 as Alarm Indicator |
| PIR |
| Detection Height |
4 m Max. |
| Detection Field of View |
360°; 8 m Diameter Max. |
| Lux Control Level |
Hardware: 2 modes (Dawn and dust) / Software: 5-step |
| Delay Time |
Hardware: 8-step Switch-selectable (seconds): 6, 16, 33, 66, 131, 262, 524, 1049
Software: 16-step (seconds): 2, 4, 6, 8, 16, 33, 49, 66, 131, 262, 393, 524, 1049, 2097, 3146, 4194 |
| PIR Response Time |
1 second |
| Temperature Measurement |
| Fire Alarm |
65°C (Programmable) |
| Range |
-40 ~ +120°C |
| Resolution |
0.01°C |
| Accuracy |
±0.5°C (at 0 ~ 60°C) |
| Humidity Measurement |
| Range |
0 ~ 100% RH |
| Resolution |
0.01% RH |
| Accuracy |
±5% RH |
| Digital Input |
| Channels |
2 |
| Type |
Wet Contact |
| ON Voltage Level |
70 ~ 220 VAC |
| OFF Voltage Level |
20 VAC Max. |
| Input Impedance |
68 KΩ, 1 W |
| Relay Output |
| Channels |
1 |
| Type |
Power Relay, Form C |
| Contact Rating |
NO: 10 A @ 250 VAC
NC: 6 A @ 250 VAC |
| Number of Lighting Fixture |
Incandescent Bulb: 1500 W Max.; Fluorescent Lamp: 300 W Max. |
| COM Ports |
| Ports |
1 x RS-485
1 x Ethernet/PoE |
| Baud Rate |
1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
| Protocol |
DCON, Modbus RTU, Modbus TCP, MQTT |
| Node Address |
Hardware: 160 to 191 / Software: 1 to 255 |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
18 ~ 48 VDC, PoE |
| Consumption |
2 W |
| Mechanical |
| Dimensions (mm) |
Ø150 x 53 (Ø x H) |
| Installation |
Ceiling /surface mounted |
| Ingress Protection Rating |
IP20 |
| Environment |
| Operating Temperature |
0 ~ +35°C |
| Storage Temperature |
-30 ~ +80°C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| PIR-230-E CR |
PIR Motion Sensor (4 m), Temperature and Humidity Sensor Module (RS-485, Ethernet PoE) (RoHS) |
