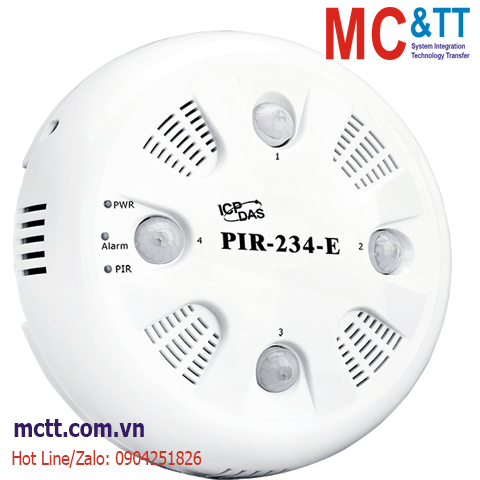

Module phát hiện chuyển động PIR + đo nhiệt/ẩm ICP DAS PIR-234-E CR

Feature

  • Adjustable Time-Delay
  • 4 PIR Motion Sensors for increased sensitivity and range
  • Internal Photosensor for Smart Switch Control
  • LED Indicator for PIR/Temperature Sensor
  • Temperature Sensor for Measuring Room Temperature
  • Suitable as either Temperature or Fire Alarm
  • Relay Output Can be Used to Control Light Via the PIR/Temperature Sensor
  • Provide High Power Relay Output to turn ON/OFF the Lighting, Support Lighting Module (Max.):
    • Incandescent Lamp: 40 W/ 220 VAC * 8 Sets
    • LED(Electronic ballast): 40 W/ 220 VAC * 10 Set
  • Wide range of Communication Interfaces and Protocols
  • Ceiling or Surface-Mount Design

Introduction

PIR-234/PIR-234L series modules have 4 PIR Motion Sensors to increase sensitivity and the ability to detect infrared waves generated by the human body within a diameter of approximately 9 and 14 meters, with a coverage area of 360° for indoor motion detection. The modules can be configured to automatically switch on a light if motion is detected. The modules also contain a temperature and humidity sensor for measuring indoor temperature and humidity, or it can be configured to activate a fire alarm. A wide range of interface connections can be selected to suit individual needs, including RS-485/Ethernet/Wi-Fi, provide support for the DCON and Modbus RTU/TCP protocols, and can be easily integrated into existing HMI/SCADA/central control systems.

The screw-free quick-connect connector and the DIP and rotary switches make the modules easy to install, repair, and maintain. The casing of each module is made from UL94-V2 rated fireproof material, and the white minimalist exterior design ensures that it is easy to match with interior decoration.

Application

  • Common lighting in staircases
  • Garden lights
  • Lighting for changing rooms in shops
  • Lighting for Conference Room, Classroom, Pantry Room
  • Corridor lighting, and many more situations

Click to view the https://mctt.vn/pir-motion-detector-icp-das.



Specifications

EMS Protection
EFT (IEC 61000-4-4) ±4 kV for Power Line
ESD (IEC 61000-4-2) ±4 kV Contact for each Terminal, ±8 kV Air for Random Point
LED Indicators
Status Yes, 1 as Power/Communication Indicator. 1 as Alarm Indicator
PIR
Sensor 4
Detection Height 4 m Max.
Detection Field of View 360º; 9 m Diameter Max.
Delay Time Hardware: 8-step Switch-selectable (seconds): 6, 16, 33, 66, 131, 262, 524, 1049
Software: 16-step (seconds): 2, 4, 6, 8, 16, 33, 49, 66, 131, 262, 393, 524, 1049, 2097, 3146, 4194
PIR Response Time 1 second
Temperature Measurement
Fire Alarm 65°C (Programmable)
Range -40 ~ +120°C
Resolution 0.01°C
Accuracy ±0.5°C (at 0 ~ 60°C)
Humidity Measurement
Range 0 ~ 100% RH
Resolution 0.01% RH
Accuracy ±5% RH
Relay Output
Channels 2
Type Power Relay, Form A (SPST N.O.)
Contact Rating 16 A @ 250 VAC or 16 A @ 30 VDC
Number of Lighting Fixture (1).Incandescent Lamp: 40W/ 220VAC * 8 Sets
(2).LED(Electronic ballast): 40W/ 220VAC *10 Sets
COM Ports
Ports 1 x RS-485
1 x Ethernet/PoE
Baud Rate 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
Protocol DCON, Modbus RTU, Modbus TCP, MQTT
Node Address Hardware: 160 to 191 / Software: 1 to 255
Power
Reverse Polarity Protection Yes
Input Range 18 ~ 48 VDC, PoE
Consumption 2 W
Mechanical
Dimensions (mm) Ø150 x 53 (Ø x H)
Installation Ceiling /surface mounted
Ingress Protection Rating IP20
Environment
Operating Temperature 0 ~ +35°C
Storage Temperature -30 ~ +80°C
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

PIR-234-E     CR  PIR Motion Sensor (4 m), Temperature and Humidity Sensor Module (Ethernet)(High sensitivity) (RoHS)
