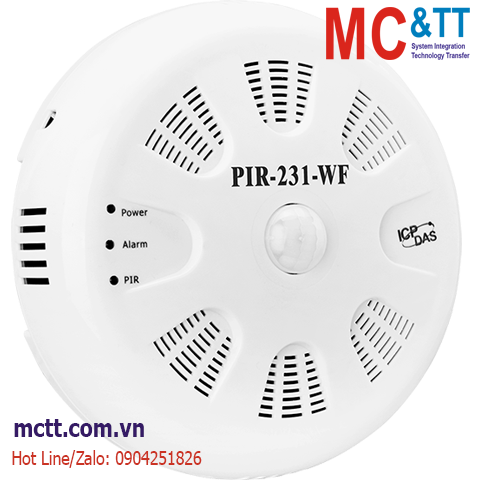

Module phát hiện chuyển động PIR + đo nhiệt/ẩm ICP DAS PIR-231-WF CR

Feature

  • Adjustable Time-Delay / Lux / Sensitivity (Lux/Sensitivity PIR-230 Only)
  • Internal Photosensor for Smart Switch Control
  • LED Indicator for PIR/Temperature Sensor
  • Temperature Sensor for Measuring Room Temperature
  • Suitable as either Temperature or Fire Alarm
  • Relay Output Can be Used to Control Light Via the PIR/Temperature Sensor
  • Suitable for loads up to 1500 W (Incandescent) and 300 W (Fluorescent)
  • Fluorescent (T8) Loading Capability
  • Wide range of Communication Interfaces and Protocols
  • Compatible with IEEE802.11b/g/n standards (PIR-230/PIR-231 Only)
  • Support infrastructure and limit-AP modes for wireless networks (PIR-230-WF/PIR-231-WF Only)
  • Ceiling or Surface-Mount Design

Introduction

PIR series modules have the ability to detect infrared waves generated by the human body within a diameter of approximately 8 meters, with a coverage area of 360° for indoor motion detection. The modules can be configured to automatically switch on a light if motion is detected. The modules also contain a temperature and humidity sensor for measuring indoor temperature and humidity, or it can be configured to activate a fire alarm. A wide range of interface connections can be selected to suit individual needs, including RS-485/Ethernet/Wi-Fi, provide support for the DCON and Modbus RTU/TCP protocols, and can be easily integrated into existing HMI/SCADA/central control systems. A free Utility is also included that allows configuration information and data to be displayed in a powerful chart format that can be exported to Microsoft Excel.

The screw-free quick-connect connector and the DIP and rotary switches make the modules easy to install, repair, and maintain. The casing of each module is made from UL94-V2 rated fireproof material, and the white minimalist exterior design ensures that it is easy to match with interior decoration.

Application

  • Lighting and exhaust fans in public toilets
  • Common lighting in staircases
  • Lighting in parking areas
  • Garden lights
  • Lighting for changing rooms in shops
  • Corridor lighting, and many more situations

Click to view the https://mctt.vn/pir-motion-detector-icp-das.



Specifications

EMS Protection
EFT (IEC 61000-4-4) ±4 kV for Power Line
ESD (IEC 61000-4-2) ±4 kV Contact for each Terminal, ±8 kV Air for Random Point
LED Indicators
Status Yes, 1 as Power/Communication Indicator. 1 as Alarm Indicator
PIR
Detection Height 10 m Max.
Detection Field of View 360°; 8 m Diameter Max.
Delay Time Hardware: 8-step Switch-selectable (seconds): 6, 16, 33, 66, 131, 262, 524, 1049
Software: 16-step (seconds): 2, 4, 6, 8, 16, 33, 49, 66, 131, 262, 393, 524, 1049, 2097, 3146, 4194
PIR Response Time 1 second
Temperature Measurement
Fire Alarm 65°C (Programmable)
Range -40 ~ +120°C
Resolution 0.01°C
Accuracy ±0.5°C (at 0 ~ 60°C)
Humidity Measurement
Range 0 ~ 100% RH
Resolution 0.01% RH
Accuracy ±5% RH
Wi-Fi
Transmission Distance (LoS) 50 m (LOS)
Standard Supported Wi-Fi: IEEE 802.11 b/g/n
Mode Infrastructure/
Limited AP
Encryption WEP, WPA ,WPA2
Digital Input
Channels 2
Type Wet Contact
ON Voltage Level 70 ~ 220 VAC
OFF Voltage Level 20 VAC Max.
Input Impedance 68 KΩ, 1 W
Relay Output
Channels 1
Type Power Relay, Form C
Contact Rating NO: 10 A @ 250 VAC
NC: 6 A @ 250 VAC
Number of Lighting Fixture Incandescent Bulb: 1500 W Max.; Fluorescent Lamp: 300 W Max.
COM Ports
Ports 1 x RS-485
1 x Ethernet/PoE
Baud Rate 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
Protocol DCON, Modbus RTU, Modbus TCP, MQTT
Node Address Hardware: 160 to 191 / Software: 1 to 255
Power
Reverse Polarity Protection Yes
Input Range 18 ~ 48 VDC, PoE
Consumption 3 W
Mechanical
Dimensions (mm) Ø150 x 53 (Ø x H)
Installation Ceiling /surface mounted
Ingress Protection Rating IP20
Environment
Operating Temperature 0 ~ +35°C
Storage Temperature -30 ~ +80°C
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

PIR-231-WF     CR  PIR Motion Sensor (10 m), Temperature and Humidity Sensor Module (RS-485, Ethernet PoE, Wi-Fi) (RoHS) (Asia Only)
