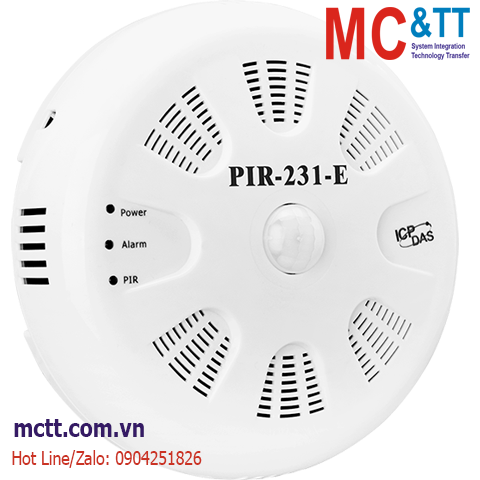

Module phát hiện chuyển động PIR + đo nhiệt/ẩm ICP DAS PIR-231-E CR

Mã sản phẩm: PIR-231-E

Thương hiệu: ICP DAS

Tình trạng:

PIR Motion Sensor (10m), Temperature and Humidity Sensor Module

Liên hệ

Chính sách cửa hàng

Khi mua hàng tại website của chúng tôi, quý khách sẽ được:

Thanh toán dễ dàng và bảo mật

Miễn phí vận chuyển với đơn hàng từ 10.000.000đ

Bảo hành 1 năm do lỗi nhà sản xuất

Cam kết 100% chính hãng

GIẢI PHÁP

Mô tả

Mô tả

Module phát hiện chuyển động PIR + đo nhiệt/ẩm ICP DAS PIR-231-E CR

Feature

Adjustable Time-Delay / Lux / Sensitivity (Lux/Sensitivity PIR-230 Only)
Internal Photosensor for Smart Switch Control
LED Indicator for PIR/Temperature Sensor
Temperature Sensor for Measuring Room Temperature
Suitable as either Temperature or Fire Alarm
Relay Output Can be Used to Control Light Via the PIR/Temperature Sensor
Suitable for loads up to 1500 W (Incandescent) and 300 W (Fluorescent)
Fluorescent (T8) Loading Capability
Wide range of Communication Interfaces and Protocols
Compatible with IEEE802.11b/g/n standards (PIR-230/PIR-231 Only)
Support infrastructure and limit-AP modes for wireless networks (PIR-230-WF/PIR-231-WF Only)
Ceiling or Surface-Mount Design

Introduction

PIR series modules have the ability to detect infrared waves generated by the human body within a diameter of approximately 8 meters, with a coverage area of 360° for indoor motion detection. The modules can be configured to automatically switch on a light if motion is detected. The modules also contain a temperature and humidity sensor for measuring indoor temperature and humidity, or it can be configured to activate a fire alarm. A wide range of interface connections can be selected to suit individual needs, including RS-485/Ethernet/Wi-Fi, provide support for the DCON and Modbus RTU/TCP protocols, and can be easily integrated into existing HMI/SCADA/central control systems. A free Utility is also included that allows configuration information and data to be displayed in a powerful chart format that can be exported to Microsoft Excel.

The screw-free quick-connect connector and the DIP and rotary switches make the modules easy to install, repair, and maintain. The casing of each module is made from UL94-V2 rated fireproof material, and the white minimalist exterior design ensures that it is easy to match with interior decoration.

Application

Lighting and exhaust fans in public toilets
Common lighting in staircases
Lighting in parking areas
Garden lights
Lighting for changing rooms in shops
Corridor lighting, and many more situations

Click to view the https://mctt.vn/pir-motion-detector-icp-das.

Specifications

EMS Protection
EFT (IEC 61000-4-4)	±4 kV for Power Line
ESD (IEC 61000-4-2)	±4 kV Contact for each Terminal, ±8 kV Air for Random Point

LED Indicators
Status	Yes, 1 as Power/Communication Indicator. 1 as Alarm Indicator

PIR
Detection Height	10 m Max.
Detection Field of View	360°; 8 m Diameter Max.
Delay Time	Hardware: 8-step Switch-selectable (seconds): 6, 16, 33, 66, 131, 262, 524, 1049 Software: 16-step (seconds): 2, 4, 6, 8, 16, 33, 49, 66, 131, 262, 393, 524, 1049, 2097, 3146, 4194
PIR Response Time	1 second

Temperature Measurement
Fire Alarm	65°C (Programmable)
Range	-40 ~ +120°C
Resolution	0.01°C
Accuracy	±0.5°C (at 0 ~ 60°C)

Humidity Measurement
Range	0 ~ 100% RH
Resolution	0.01% RH
Accuracy	±5% RH

Digital Input
Channels	2
Type	Wet Contact
ON Voltage Level	70 ~ 220 VAC
OFF Voltage Level	20 VAC Max.
Input Impedance	68 KΩ, 1 W

Relay Output
Channels	1
Type	Power Relay, Form C
Contact Rating	NO: 10 A @ 250 VAC NC: 6 A @ 250 VAC
Number of Lighting Fixture	Incandescent Bulb: 1500 W Max.; Fluorescent Lamp: 300 W Max.

COM Ports
Ports	1 x RS-485 1 x Ethernet/PoE
Baud Rate	1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
Protocol	DCON, Modbus RTU, Modbus TCP, MQTT
Node Address	Hardware: 160 to 191 / Software: 1 to 255
