Module phát hiện chuyển động PIR + đo nhiệt ICP DAS PIR-130-AC CR
Feature
- 360° Motion Detection Up to 8 m Diameter Range
- Time-Delay / Lux. / Sensitivity Adjustable
- Photo Sensor Inside for Smart Switch-on Control
- LED Indicator for PIR/Temperater Sensor
- The Temperature Sensor for Measuring Room Temperature or Fire Alarm
- Relay Output Can be Used to Control the Light Via the PIR/Temperature Sensor
- Up to 1500 W Incandescent and 300 W Fluorescent (T8) Loading Capability
- RS-485 Communication Interface
- DCON and Modbus RTU Protocols
- Ceiling Surface Mount Design
Introduction

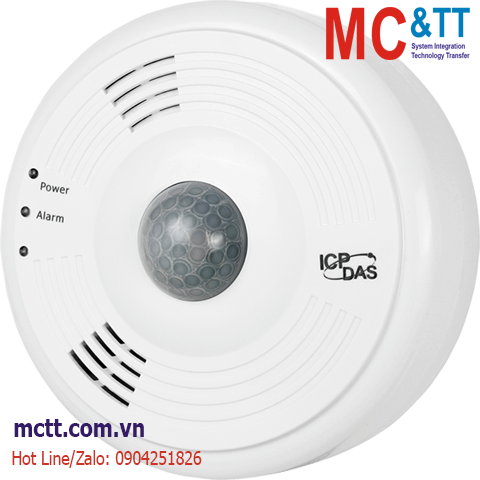

The PIR-130 module includes a 1-channel passive infrared (PIR) sensor that is able to detect infrared waves generated by human within a range of approximately 8 meters in diameter with a 360° coverage area. The PIR-130 is used for indoor motion detection, and can be configured to automatically switch on a light if motion is detected. The PIR-130 module also includes a 1-channel temperature sensor that can be used for measuring room temperature or can be configured to activate a fire alarm.
Application
- Common toilets, for lights & exhaust fans
- Common staircases
- For parking lights
- For garden lights
- For changing rooms in shops
- For corridors & many more
Click to view the https://mctt.vn/pir-motion-detector-icp-das.
Specifications
| EMS Protection |
| EFT (IEC 61000-4-4) |
±4 kV for Power Line |
| ESD (IEC 61000-4-2) |
±4 kV Contact for each Terminal, ±8 kV Air for Random Point |
| LED Indicators |
| Status |
Yes, 1 as Power/Communication Indicator. 1 as Alarm Indicator |
| PIR |
| Detection Height |
4 meters Max. |
| Detection Field of View |
360°; 8 m Diameter Max. |
| Lux Control Level |
Hardware: 2 modes (Dawn and dust) / Software: 5-step |
| Delay Time |
Hardware: 8-step Switch-selectable (seconds): 6, 16, 33, 66, 131, 262, 524, 1049
Software: 16-step (seconds): 2, 4, 6, 8, 16, 33, 49, 66, 131, 262, 393, 524, 1049, 2097, 3146, 4194 |
| PIR Response Time |
1 second |
| Temperature Measurement |
| Fire Alarm |
65°C (Programmable) |
| Range |
-25 ~ +100°C |
| Resolution |
0.0625°C |
| Accuracy |
±2°C |
| Relay Output |
| Channels |
1 |
| Type |
Power Relay, Form C |
| Contact Rating |
NO: 10 A @ 250 VAC
NC: 6 A @ 250 VAC |
| COM Ports |
| Ports |
1 x RS-485 |
| Baud Rate |
1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
| Protocol |
DCON, Modbus RTU |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
110 ~ 220 VAC |
| Consumption |
2 W |
| Mechanical |
| Dimensions (mm) |
Ø121 x 52 (Ø x H) |
| Installation |
Ceiling mounting |
| Ingress Protection Rating |
IP20 |
| Environment |
| Operating Temperature |
0 ~ +35°C |
| Storage Temperature |
-30 ~ +80°C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| PIR-130-AC CR |
PIR Motion Sensor (4m) and Temperature Sensor Module (RS-485) (110~220 VAC powered) (RoHS) |
