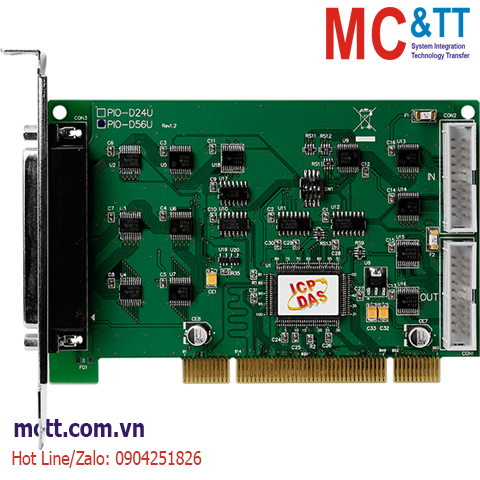

Card PCI 56 kênh vào/ra số DI/DO ICP DAS PIO-D56U CR
Features
- Universal PCI (3.3 V/5 V) Interface
- 56 Buffered TTL Digital I/O Lines
- Three 8-bit Bi-directional Programmable I/O Ports
- Emulates two Industrial-standard 8255 PPI Ports (Mode 0)
- 4-channel Interrupt Source
- Supports Card ID (SMD Switch)
- Supports DO Status Readback (Register Level)
- DI/O Response Time approximately 1 μs (1 MHz)
Introduction
The PIO-D56U supports 3.3 V/5 V PCI bus. The PIO-D56U consists of three 8-bit bi-direction ports. The 8-bit ports are named as port A (PA), port B (PB) and port C (PC) respectively. All ports are configured as inputs upon power-up or reset. In addition, the PEX-D56 provides additional 16-bit DIs and 16-bit DOs.
The PIO-D56U has a Card ID switch with which users can recognize the board by the ID via software when using two or more PIO-D56U cards in one computer.
The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland c++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.
Accessories
Applications
- DOS Lib and TC/BC/MSC sample program (with source codes)
- DLL and OCX SDK for Windows 95/98/NT/2K.
- DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/2008/7/8/10.
- VB/VC/Delphi/BCB/VB.NET/C#.NET/VC.NET/MATLAB sample programs with source codes.
- LabVIEW toolkit for Windows.
- Driver for Linux and DasyLab.
Click to view the Introduction of https://mctt.vn/pci-icp-das
Specifications
| Hardware |
| Card ID |
Yes (4-bit) |
| Connector |
Female DB37 x 1
20-pin box header x 2 |
| Digital Input |
| Channels |
24 (Bi-Direction) + 16 |
| Type |
5 V/TTL |
| ON Voltage Level |
2.0 V Min. |
| OFF Voltage Level |
0.8 V Max. |
| Response Speed |
1.0 MHz (Typical) |
| Trigger Mode |
Static Update |
| Digital Output |
| Channels |
24 (Bi-Direction) + 16 |
| Type |
5 V/TTL |
| Operation Mode |
Static Update |
| Load Voltage |
Logic 0: 0.4 V Max.
Logic 1: 2.4 V Min. |
| Load Current |
CON1:
Sink: 2.4 mA @ 0.8 V
Source: 0.8 mA @ 2.0 V
CON3:
Sink: 64 mA @ 0.8 V
Source: 32 mA @ 2.0 V |
| Response Speed |
1.0 MHz (Typical) |
| PC Bus |
| Type |
3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus |
8-bit |
| Power |
| Consumption |
580 mA @ +5 V |
| Mechanical |
| Dimensions (mm) |
86 x 134 x 22 (W x L x D) |
| Environment |
| Operating Temperature |
0 ~ +60°C |
| Storage Temperature |
-20 ~ +70°C |
| Humidity |
5 ~ 85% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| PIO-D56U CR |
Universal PCI, 56-ch Digital I/O Board (RoHS) |
