Card PCI 144 kênh vào/ra số DI/DO ICP DAS PIO-D144LU CR
Features
- Universal PCI (3.3 V/5 V) Interface
- 144 Digital I/O Channels
- 18 8-bit Bi-directional Programmable I/O Ports
- Emulates 6/7 Industrial-standard 8255 PPI Ports (Mode 0)
- All I/O Lines Buffered on the Board
- 4-channel Interrupt Source
- Supports Card ID (SMD Switch)
- Supports DO Status Readback (Register Level)
- DI/O Response Time approximately 1 μs (1 MHz)
Introduction

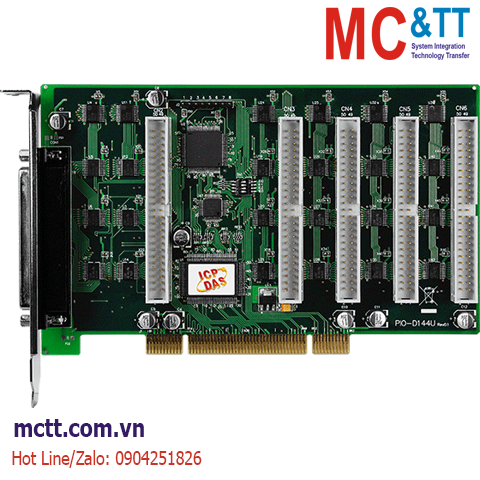

The PIO-D144LU universal PCI card supports 3.3 V/5 V PCI bus. These cards provide 144 TTL digital I/O lines that are grouped into eighteen 8-bit bi-directional ports. Each group of three 8-bit ports is arranged on the connector as Port A (PA), Port B (PB) and Port C (PC), respectively, and all ports are configured as inputs Ports on power-up or after a reset.
The PIO-D144LU provides six connectors for I/O wiring. The PIO-D144LU cards include an onboard Card ID switch that enables the board to be recognized via software if two or more boards are installed in the same computer.
The PIO-D144LU also adds pull-high/low jumpers allow the DI status to be predefined instead of remaining floating if the DI channels are disconnected or interrupted.
The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland c++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.
Comparison Table |
| Model |
Interface |
DI Pull-High/Low |
Compatibility |
Advantage |
|
PEX-D144LS |
PCI Express |
Yes |
5 V/CMOS |
Low power consumption、
Low temperature |
| PIO-D144LU |
Universal PCI |
Yes |
5 V/CMOS |
Low power consumption、
Low temperature |
| PIO-D144U |
Universal PCI |
No |
5 V/TTL |
High DO Driving
(Output Capability) |
Accessories
Applications
- DOS Lib and TC/BC/MSC sample program (with source codes)
- DLL and OCX SDK for Windows 95/98/NT/2K.
- DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/2008/7/8/10.
- VB/VC/Delphi/BCB/VB.NET/C#.NET/VC.NET/MATLAB sample programs with source codes.
- LabVIEW toolkit for Windows.
- Driver for Linux and DasyLab.
Click to view the Introduction of https://mctt.vn/pci-icp-das
Specifications
| Hardware |
| Card ID |
Yes (4-bit) |
| Connector |
Female DB37 x 1
50-pin box header x 5 |
| Digital Input |
| Channels |
144 (Bi-Direction) |
| Type |
5 V/CMOS |
| ON Voltage Level |
2.0 V Min. |
| OFF Voltage Level |
0.8 V Max. |
| Response Speed |
500 kHz (Typical) |
| Trigger Mode |
Static Update |
| Digital Output |
| Channels |
144 (Bi-Direction) |
| Type |
5 V/CMOS |
| Operation Mode |
Static Update |
| Load Voltage |
Logic 0: 0.1 V Max.
Logic 1: 4.4 V Min. |
| Load Current |
Sink: 6 mA @ 0.33 V
Source: 6 mA @ 4.77 V |
| Response Speed |
500 kHz (Typical) |
| PC Bus |
| Type |
3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus |
8-bit |
| Power |
| Consumption |
250 mA @ +5 V |
| Mechanical |
| Dimensions (mm) |
105 x 180 x 22 (W x L x D) |
| Environment |
| Operating Temperature |
0 ~ +60°C |
| Storage Temperature |
-20 ~ +70°C |
| Humidity |
5 ~ 85% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| PIO-D144LU CR |
Universal PCI, 144-ch Digital I/O Board (RoHS) |
