Card PCI Express 16 kênh DI + 16 kênh PhotoMOS Relay ICP DAS PEX-P16POR16i CR

Chia sẻ:
Mã sản phẩm: PEX-P16POR16i
Thương hiệu: ICP DAS
Tình trạng:

PCI Express, 16-ch Isolated DI and 16-ch PhotoMOS Relay Output Board

Liên hệ
Mô tả

Card PCI Express 16 kênh DI + 16 kênh PhotoMOS Relay ICP DAS PEX-P16POR16i CR

Features

  • PCI Express x1 Interface
  • Supports Card ID (SMD Switch)
  • LED Power Indicator
  • 16-channel Isolated Digital Input
    • Selectable DC Signal Input Filter
    • AC Signal Input with Filter
    • 2000 VDC Photo-isolation Protection
  • 16-channel PhotoMOS Relay Output
    • Supports DO Status Readback (Register Level)
    • 0.05 ms Release Time
    • Long Life and High Reliability PhotoMos Relay
    • Low Leakage Current when PhotoMos Relay is OFF
    • No Contact Bounce, No Sparking

Introduction

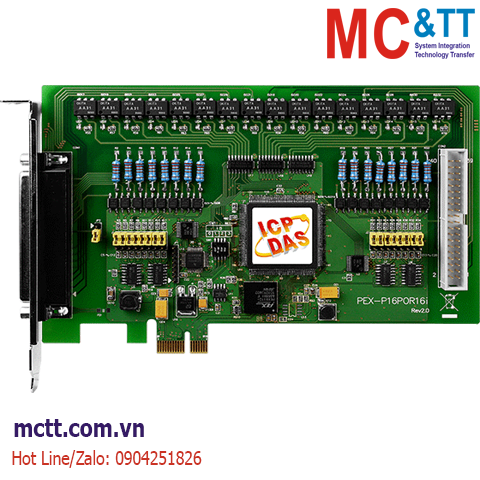

The PEX-P16POR16i is a PCI Express card. These cards provide 16 Isolated input channels and 16 PhotoMOS Relay output channels. Both the isolated DI channels and the PhotoMOS Relay channels use a short optical transmission path to transfer an electronic signal between elements of a circuit and keep them electrically isolated. The PEX-P16POR16i card provide 2000 VDC for DI channel isolation protection, allowing the input signals to be completely floated so as to cut down ground loops, block voltage spikes, and isolate the host computer from damaging voltages. PhotoMOS Relays are used where it is necessary to control a circuit using a low-power signal (with complete electrical isolation between the control and controlled circuits), or where several circuits must be controlled by one signal. These cards can be used in various applications, such as controlling the ON/OFF state of external devices, driving external relays or small power switches, activating alarms, contact closure, sensing external voltages or switches, etc.

The PEX-P16POR16i card also adds a Card ID switch on-board. Users can set Card ID and then recognizes the board by the ID via software when using two or more cards in one computer.

The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.

Accessories

Applications

  • High speed data acquisition system.
  • Process monitor and control.
  • Vibration analysis.
  • Digital pattern generator from digital I/O port.

Click to view the Introduction of https://mctt.vn/pci-express-icp-das

Specifications

Hardware
Card ID Yes (4-bit)
Connector Female DB37 x 1
40-pin box header x 1
Digital Input
Channels 16
Type Wet Contact
Photocoupler
Sink/Source (NPN/PNP) Sink/Source
ON Voltage Level AC/DC 5 ~ 24 V (AC 50 ~ 1 kHz)
OFF Voltage Level AC/DC 0 ~ 1 V
Response Speed Without Filter: 50 kHz (Typical)
With Filter: 0.455 kHz(Typical)
Trigger Mode Static Update
Isolation 2000 VDC
Relay Output
Channels 16
Type PhotoMos Relay (Form A)
Contact Rating Load Voltage: 300 V (AC peak or DC)
Load Current: 130 mA
Operate Time 0.7 ms (Typical)
Release Time 0.05 ms (Typical)
Electrical Endurance Long Life and No Sparking
PC Bus
Type PCI Express x 1
Data Bus 16-bit
Power
Consumption 600 mA @ +3.3 V
300 mA @ +12 V
Mechanical
Dimensions (mm) 113 x 118 x 22 (W x L x D)
Environment
Operating Temperature 0 ~ +60°C
Storage Temperature -20 ~ +70°C
Humidity 5 ~ 85% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

PEX-P16POR16i     CR  PCI Express x1, 16-ch isolated DI and 16-ch PhotoMOS Relay Output (RoHS)
Includes one CA-4037W cable and two CA-4002 D-Sub connectors
