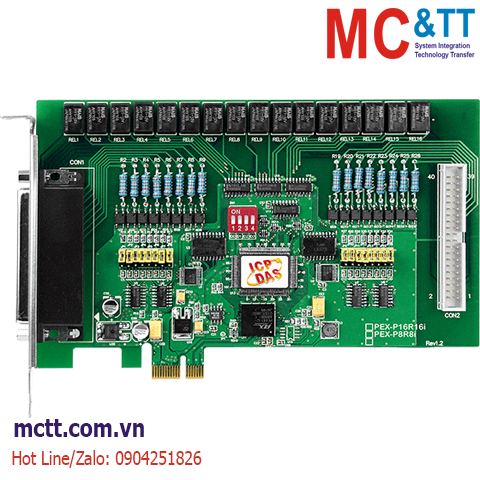

Card PCI Express 16 kênh DI + 16 kênh Relay ICP DAS PEX-P16R16i CR
Features
- PCI Express x1 Interface
- Supports Card ID (SMD Switch)
- 16-channel Relay Output
- 16channel Isolated Digital Input
- Selectable DC Signal Input Filter
- AC Signal Input with Filter
- 2000 VDC Photo-isolation Protection
Introduction
The PEX-P16R16i board utilizes the PCI Express bus and is designed as an easy replacement for the PISO-P16R16U board without requiring any modification to either the software or the driver.
The PEX-P16R16i board provides 16 photocoupler Digital Input channels with 3750 Vrms isolation protection, and allows the input signals to be completely floated to prevent ground loops. The boards are also equipped with 16 Relay Output channels that can be used for controlling the ON/OFF state of external devices, for driving external relays or small power switches, or for activating alarms, etc.
Comparsion
| Model Name |
PCI-P16R16U |
PISO-P16R16U |
PEX-P16R16i |
PEX-P8R8i |
| Bus |
Universal PCI |
Universal PCI |
PCI Express x1 |
| Relays |
Form C x 8
Form A x 8 |
Form C x 4
Form A x 4 |
| DI |
16-ch with 5000 Vrms
Isolation |
16-ch with 3750 Vrms
Isolation |
8-ch with 3750 Vrms
Isolation |
| Card ID |
- |
Yes (4-bit) |
| Data bus |
16-bit |
8-bit |
| Driver |
UniDAQ SDK/Driver, or
PCI-P16R16 SDK/Driver |
UniDAQ SDK/Driver, or PISO-DIO SDK/Driver |
| Remarks |
- |
Suggested for new users. |

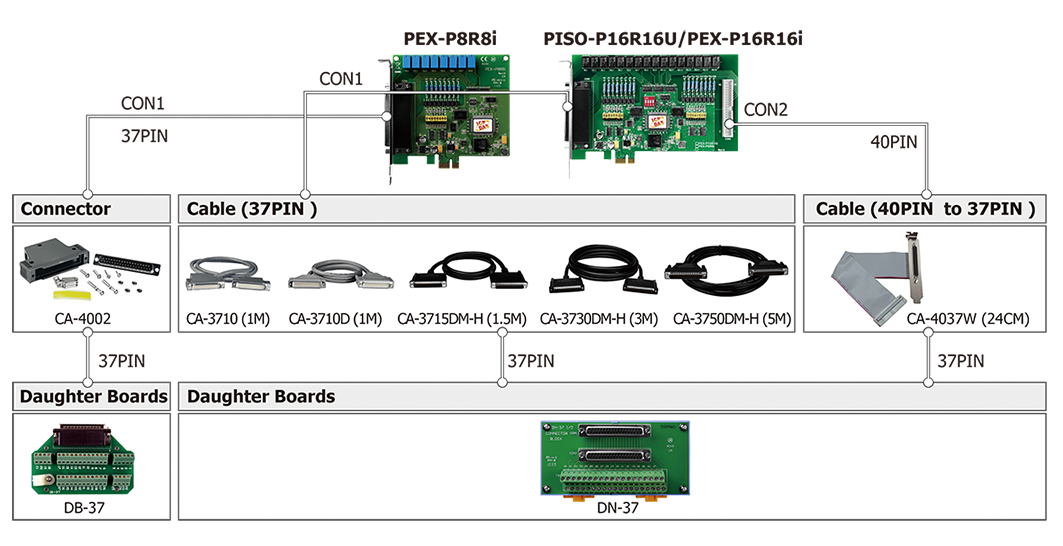

Accessories
Applications
- High speed data acquisition system.
- Process monitor and control.
- Vibration analysis.
- Digital pattern generator from digital I/O port.
Click to view the Introduction of https://mctt.vn/pci-express-icp-das
Specifications
| Hardware |
| Card ID |
Yes (4-bit) |
| Connector |
Female DB37x 1
40-pin box header x 1 |
| Digital Input |
| Channels |
16 |
| Type |
Wet Contact
Photocoupler |
| Sink/Source (NPN/PNP) |
Sink/Source |
| ON Voltage Level |
AC/DC 5 ~ 24 V (AC 50 ~ 1 kHz) |
| OFF Voltage Level |
AC/DC 0 ~ 1 V |
| Response Speed |
Without Filter: 50 kHz (Typical)
With Filter: 0.455 kHz(Typical) |
| Trigger Mode |
Static Update |
| Isolation |
3750 Vrms |
| Relay Output |
| Channels |
16 |
| Type |
8 SPDT, 8 SPST |
| Contact Rating |
AC:120 V@0.5 A
DC: 24 V@1 A |
| Operate Time |
1 ms (Typical) |
| Release Time |
7 ms (Typical) |
| Electrical Endurance |
100,000 ops. |
| Mechanical Endurance |
5,000,000 ops. |
| PC Bus |
| Type |
PCI-Express x 1 |
| Data Bus |
8-bit |
| Power |
| Consumption |
450 mA @ +3.3 V
200 mA @ +12 V |
| Mechanical |
| Dimensions (mm) |
112 x 172 x 22 (W x L x D) |
| Environment |
| Operating Temperature |
0 ~ +60°C |
| Storage Temperature |
-20 ~ +70°C |
| Humidity |
5 ~ 85% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| PEX-P16R16i CR |
PCI Express, 16-ch Isolated DI, 16-ch Relay Output (RoHS)
Includes one CA-4037W cable and two CA-4002 D-Sub connectors |
