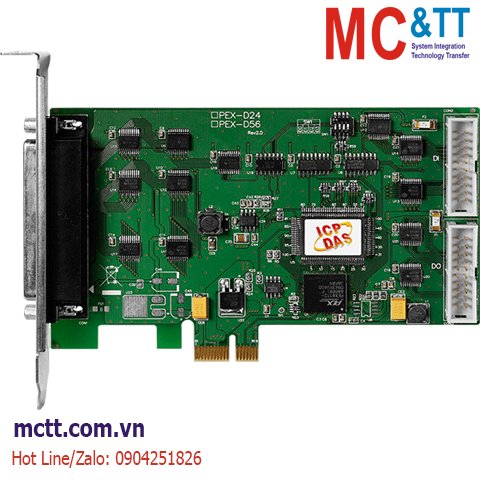

Card PCI Express 56 kênh vào/ra số DI/DO ICP DAS PEX-D56 CR

Chia sẻ:
Mã sản phẩm: PEX-D56
Thương hiệu: ICP DAS
Tình trạng:

PCI Express, 56-ch Digital I/O Board

Liên hệ
Mô tả

Card PCI Express 56 kênh vào/ra số DI/DO ICP DAS PEX-D56 CR

Features

  • PCI Express x1 Interface
  • Supports Card ID (SMD Switch)
  • Emulates two Industrial-standard 8255 PPI Ports (Mode 0)
  • DI/O Response Time approximately 2 μs (500 kHz Max.)
  • 56 Buffered TTL Digital Input/Output Lines
  • Three 8-bit Bi-directional I/O Ports
  • DO Provides Higher Driving Capability
  • Four Interrupt Sources

Introduction

The PEX-D56 series utilizes the PCI Express bus and is designed as an easy replacement for the PIO-D56/PIO-D56U series without requiring any modification to either the software or the driver.

The PEX-D56 provides 56buffered TTL Digital Input/Output lines.

The PEX-D56 also includes an onboard Card ID that enables the board to be easily recognized via software if two or more cards are installed in the same computer.

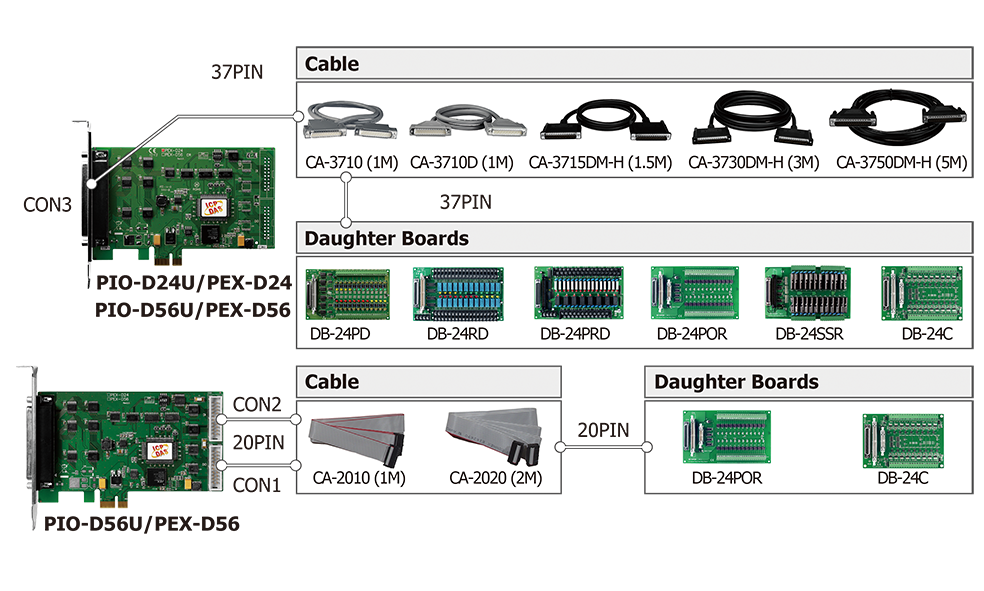

Accessories

Applications

  • High speed data acquisition system.
  • Process monitor and control.
  • Vibration analysis.
  • Digital pattern generator from digital I/O port.

Click to view the Introduction of https://mctt.vn/pci-express-icp-das

Specifications

Hardware
Card ID Yes (4-bit)
Connector Female DB37 x 1
20-pin box header x 2
Digital Input
Channels 24 (Bi-Direction) +16
Type 5 V/TTL
ON Voltage Level 2.0 V Min.
OFF Voltage Level 0.8 V Max.
Response Speed 500 kHz (Typical)
Trigger Mode Static Update
Digital Output
Channels 24 (Bi-Direction) +16
Type 5 V/TTL
Operation Mode Static Update
Load Voltage Logic 0: 0.4 V Max.
Logic 1: 2.4 V Min.
Load Current CON1:
Sink: 2.4 mA @ 0.8 V
Source: 0.8 mA @ 2.0 V
CON3:
Sink: 64 mA @ 0.8 V
Source: 32 mA @ 2.0 V
Response Speed 500 kHz (Typical)
PC Bus
Type PCI Express x 1
Data Bus 8-bit
Power
Consumption 750 mA @ +3.3 V
0 mA @ +12 V
Mechanical
Dimensions (mm) 86 x 134 x 22 (W x L x D)
Environment
Operating Temperature 0 ~ +60°C
Storage Temperature -20 ~ +70°C
Humidity 5 ~ 85% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

PEX-D56     CR  PCI Express, 56-ch Digital I/O Board (RoHS)
