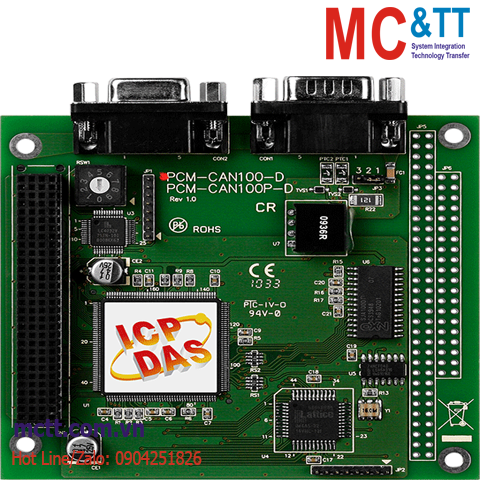

Module PCI-104 1 cổng CAN ICP DAS PCM-CAN100-D CR

Features

  • PCI-104 compliant
  • 9-pin D-sub connector
  • Compatible with CAN 2.0 parts A and B
  • Fully compatible with ISO 11898-2 standard
  • Support CAN bard from 10K to 1M bps
  • 2500 Vrms photo couple isolation on the CAN bus
  • Built-in jumper to select 120 ohm terminal resister
  • 1KV galvanic isolation
  • 1 CAN channel
  • Direct memory mapping to the CAN controller

Introduction

PCM-CAN100-D can represent a CAN solution on a high quality PCI-104 hardware in industrial environment compliant with CAN 2.0A and CAN 2.0B specification. It has 2 independent CAN bus communication ports with 9-pin D-sub connector, and has the ability to cover a wide range of CAN applications.

Besides, PCM-CAN100-D uses the CAN controller Phillips SJA1000T and transceiver 82C250/251, which provide bus arbitration, error detection with auto correction and re-transmission function. It can be installed in a 5V PCI slot and supported truly “Plug & play”.

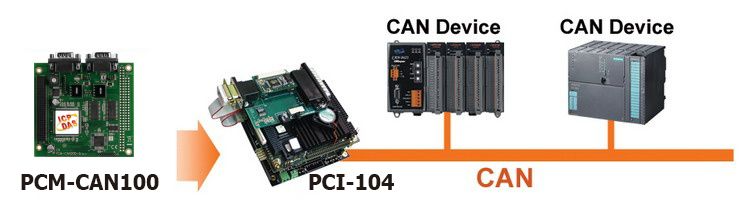

Applications

  • CAN bus communication application
  • DeviceNet, CANopen, CAN J1939, SDS(System Wide Network) protocol application
  • Control System
  • Building Automation
  • Factory Automation
  • Distributed data acquisition

Click to view the Introduction of https://mctt.vn/can-bus-icp-das

Specifications

Software
Driver Windows XP/7/8/10 (32-bit/64-bit OS), Linux 2.6.x ~ 5.4.0, LabView, DASYLab, InduSoft
SDK VB 6.0, VC++ 6.0, BCB 6.0, Delphi 4.0
PC Bus
Type PCI-104
CAN
Controller NXP SJA1000T with 16 MHz clock
Ports 1
Baud Rate 10 k ~ 1 M bps
Isolation 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Terminal Resistor Jumper for 120 Ω terminal resistor
Power
Consumption 250 mA @ 5 V
Mechanical
Dimensions (mm) 91 x 22 x 96 (W x L x H)
Environment
Operating Temperature 0 ~ +60 °C
Storage Temperature -20 ~ +70 °C
Humidity 5 ~ 85% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

PCM-CAN100-D     CR  1-Port Isolated Protection CAN PCI-104 Module with 9-pin F/M D-sub connector (RoHS)
