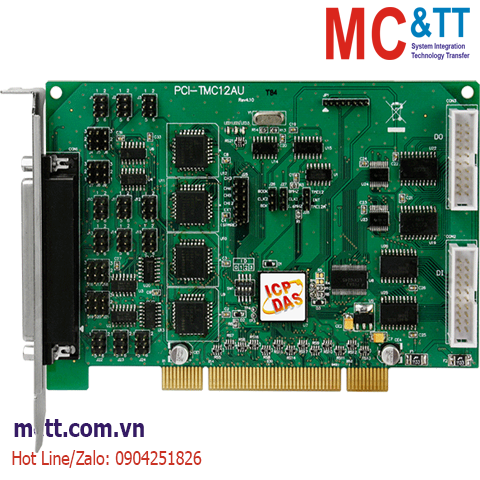

Card PCI 16 kênh vào/ra số DI/DO + 12 kênh Timer/Counter/Frequency ICP DAS PCI-TMC12AU CR
Features
- Universal PCI (3.3 V/5 V) Interface
- 4 Onboard 8254 Timer/Counter Chips
- 12 Independent 16-bit Timers/Counters
- 12 External Clock Input Channels
- 12 Timer/Counter Output Channels
- 4 Interrupt Sources and More Flexible Interrupt Mechanism
- 2 Internal Clock Sources
- 16-bit Timer/Counter can be cascaded to create a 32/48-bit Timer/Counter
- 16-channel, 5 V/TTL Digital Input
- 16-channel, 5 V/TTL Digital Output
- Gate Input can be sourced from External or Previous Timer/Counter Output
- Supports Card ID (SMD Switch)
- Supports DO Status Readback
- Hardware Mechanism to generate two Starting Clocks
Introduction
The PCI-TMC12AU card is designed as a direct replacement for the PCI-TMC12A without requiring any modification to the software or the driver.
The PCI-TMC12AU Universal PCI cards support the 3.3 V/5 V PCI bus, and provide twelve 16-bit timers/counters (four 82C54 chips x 3 timers/counters), 16 TTL Digital Input channels and 16 TTL Digital Output channels. The two onboard clocks (8 M/1.6 M and 0.8 M/80 K) are jumper selectable and provide a high-resolution clock source for timers/counters. Counters/timers can be used for industrial and laboratory applications such as pulse/event/switch-toggle counting, frequency readings, elapsed time measurement, pulse-width measurement, PWM (pulse-width-modulated) output, and pulse (square wave) and rate generation, etc.

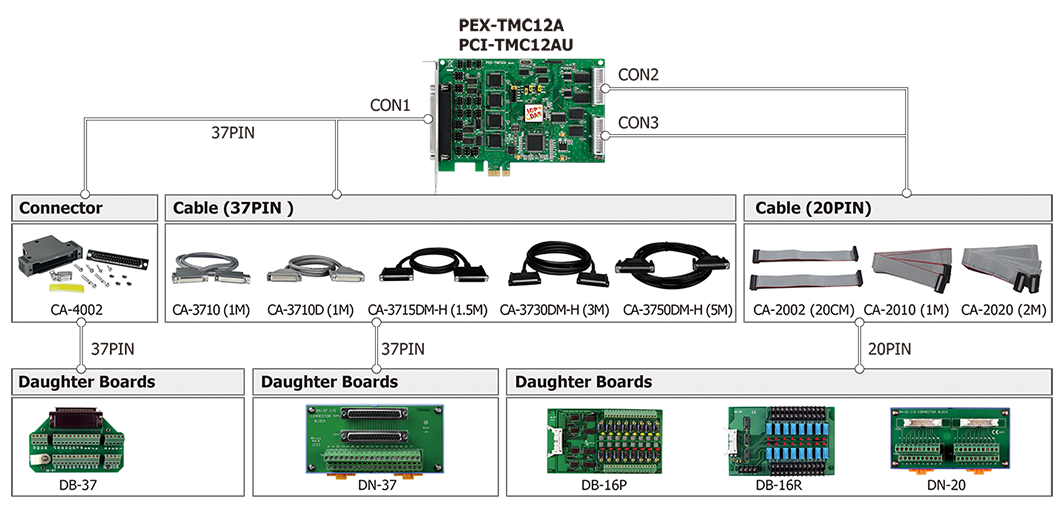

Accessories
Applications
- DOS Lib and TC/BC/MSC sample program (with source codes)
- DLL and OCX SDK for Windows 95/98/NT/2K.
- DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/2008/7/8/10.
- VB/VC/Delphi/BCB/VB.NET/C#.NET/VC.NET/MATLAB sample programs with source codes.
- LabVIEW toolkit for Windows.
- Driver for Linux and DasyLab.
Click to view the Introduction of https://mctt.vn/pci-icp-das
Specifications
| Hardware |
| Card ID |
Yes (4-bit) |
| Connector |
Female DB37 x 1
20-pin box header x 2 |
| Digital Input |
| Channels |
16 |
| Type |
5 V/TTL |
| ON Voltage Level |
2.0 V Min. |
| OFF Voltage Level |
0.8 V Max. |
| Response Speed |
1.0 MHz (Typical) |
| Trigger Mode |
Static Update |
| Digital Output |
| Channels |
16 |
| Type |
5 V/TTL |
| Operation Mode |
Static Update |
| Load Voltage |
Logic 0: 0.4 V Max.
Logic 1: 2.4 V Min. |
| Load Current |
Sink: 24 mA @ 0.8 V
Source: 15 mA @ 2.0 V |
| Response Speed |
1.0 MHz (Typical) |
| Timer/Counter/Frequency |
| Channels |
12 |
| Type |
5 V/TTL(82C54 compatible timer) |
| Resolution |
16-bit |
| Input Frequency |
10 MHz max. |
| Reference Clock |
Internal: 8 MHz |
| PC Bus |
| Type |
3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus |
16-bit |
| Power |
| Consumption |
500 mA @ +5 V |
| Mechanical |
| Dimensions (mm) |
105 x 150 x 22 (W x L x D) |
| Environment |
| Operating Temperature |
0 ~ +60°C |
| Storage Temperature |
-20 ~ +70°C |
| Humidity |
5 ~ 85% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| PCI-TMC12AU CR |
Universal PCI, 12-ch Timer/Counter Board (RoHS)
Includes one CA-4002 D-Sub connector |
