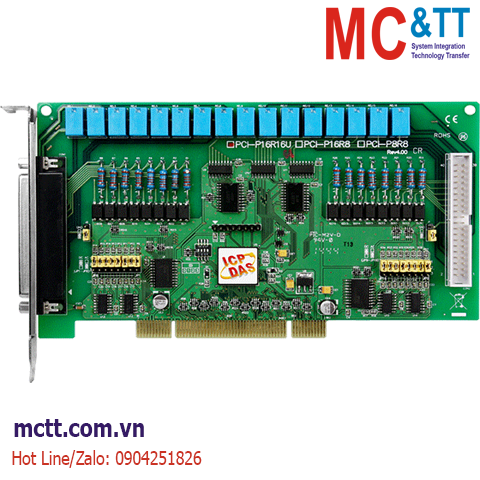

Card PCI 16 kênh DI + 16 kênh Relay ICP DAS PCI-P16R16U CR
Features
- Universal PCI (3.3 V/5 V) Interface
- 16-channel Optically-isolated Digital Input
- 16-channel Relay Output
- Selectable DC Signal Input Filter
- AC Signal Input with Filter
- 5000 Vrms Photo-isolation Protection
Introduction
The PCI-P16R16U universal PCI card supports 3.3 V/5 V PCI bus. These cards contain 16 photo-coupler DI channels that provide 5000 Vrms isolation protection, allowing the input signals to be completely floated so as to prevent ground loops. They are also equipped with 16 Relay Output channels that can be used to control the ON/OFF state of external devices, drive external relays or small power switches, or activate alarms, etc.
The PCI-P16R16U also adds a Card ID switch on-board. Users can set Card ID and then recognizes the board by the ID via software when using two or more cards in one computer.
The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland c++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.
Comparsion
| Model Name |
PCI-P16R16U |
PISO-P16R16U |
PEX-P16R16i |
PEX-P8R8i |
| Bus |
Universal PCI |
Universal PCI |
PCI Express x1 |
| Relays |
Form C x 8
Form A x 8 |
Form C x 4
Form A x 4 |
| DI |
16-ch with 5000 Vrms
Isolation |
16-ch with 3750 Vrms
Isolation |
8-ch with 3750 Vrms
Isolation |
| Card ID |
- |
Yes (4-bit) |
| Data bus |
16-bit |
8-bit |
| Driver |
UniDAQ SDK/Driver, or
PCI-P16R16 SDK/Driver |
UniDAQ SDK/Driver, or PISO-DIO SDK/Driver |
| Remarks |
- |
Suggested for new users. |
Accessories
Applications
- DOS Lib and TC/BC/MSC sample program (with source codes)
- DLL and OCX SDK for Windows 95/98/NT/2K.
- DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/2008/7/8/10.
- VB/VC/Delphi/BCB/VB.NET/C#.NET/VC.NET/MATLAB sample programs with source codes.
- LabVIEW toolkit for Windows.
- Driver for Linux and DasyLab.
Click to view the Introduction of https://mctt.vn/pci-icp-das
Specifications
| Hardware |
| Card ID |
Yes (4-bit) |
| Connector |
Female DB37 x 1
40-pin box header x 1 |
| Digital Input |
| Channels |
16 |
| Type |
Wet Contact
Photocoupler |
| Sink/Source (NPN/PNP) |
Sink/Source |
| ON Voltage Level |
AC/DC 5 ~ 24 V (AC 50 ~ 1 kHz) |
| OFF Voltage Level |
AC/DC 0 ~ 1 V |
| Response Speed |
Without Filter: 50 kHz (Typical)
With Filter: 0.455 kHz(Typical) |
| Trigger Mode |
Static Update |
| Isolation |
5000 Vrms |
| Relay Output |
| Channels |
16 |
| Type |
8 SPDT ,8 SPST |
| Contact Rating |
AC: 120 V @ 0.5 A
DC: 24 V @ 1 A |
| Operate Time |
5 ms (Typical) |
| Release Time |
10 ms (Typical) |
| Electrical Endurance |
100,000 ops. |
| Mechanical Endurance |
5,000,000 ops. |
| PC Bus |
| Type |
3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus |
16-bit |
| Power |
| Consumption |
800 mA @ +5 V |
| Mechanical |
| Dimensions (mm) |
105 x 183 x 22 (W x L x D) |
| Environment |
| Operating Temperature |
0 ~ +60°C |
| Storage Temperature |
-20 ~ +70°C |
| Humidity |
5 ~ 85% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| PCI-P16R16U CR |
Universal PCI, 16-ch isolated DI and 16-ch Relay Output (RoHS)
Includes one CA-4037W cable and two CA-4002 D-Sub connectors. |
