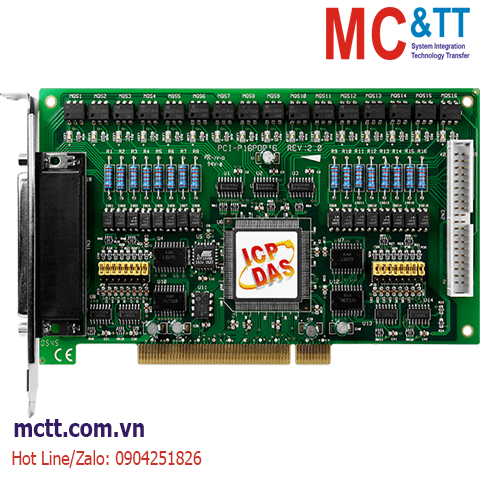

Card PCI 16 kênh DI + 16 kênh PhotoMOS Relay ICP DAS PCI-P16POR16U CR
Features
- Universal PCI (3.3 V/5 V) Interface
- LED Power Indicator
- 16-channel Optically-isolated Digital Input
- 5000 Vrms Photo-isolation Protection
- Selectable DC Signal Input Filter
- AC Signal Input with Filter
- High-speed DI/O Operation
- 16-channel PhotoMOS Relay Output
- Long-life, High-reliability PhotoMOS Relay
- Low leakage current when PhotoMOS Relay is OFF
- No Acoustical Noise
- No Contact Bounce or Sparking
Introduction
The PCI-P16POR16U Universal PCI card supports the 3.3 V/5 V PCI bus and provides 16 optically-isolated Digital Input channels and 16 PhotoMOS Relay Output channels. Both the isolated DI channels and the PhotoMOS Relay channels use a short optical transmission path to transfer an electronic signal between elements of a circuit and keep them electrically isolated.
ThePCI-P16POR16U provides 5000 Vrms isolation protection for the DI channels, allowing the input signals to be completely floated so as to prevent ground loops and isolate the host computer from potentially damaging voltage spikes. The PhotoMOS Relays are used where it is necessary to control a circuit using a low-power signal, with complete electrical isolation between the control and the controlled circuits), or where several circuits must be controlled by a single signal.
This card can be used in a variety of applications, such as controlling the ON/OFF state of external devices, driving external relays or small power switches, activating alarms, contact closure, or sensing external voltages or switches, etc.
The PCI-P16POR16U cards also include an onboard Card ID switch that enables the board to be recognized via software if two or more cards are installed in the same computer. The PCI-P16POR16U is designed as a direct replacement for the PCI-P16POR16 without requiring any modification to the software or the driver.

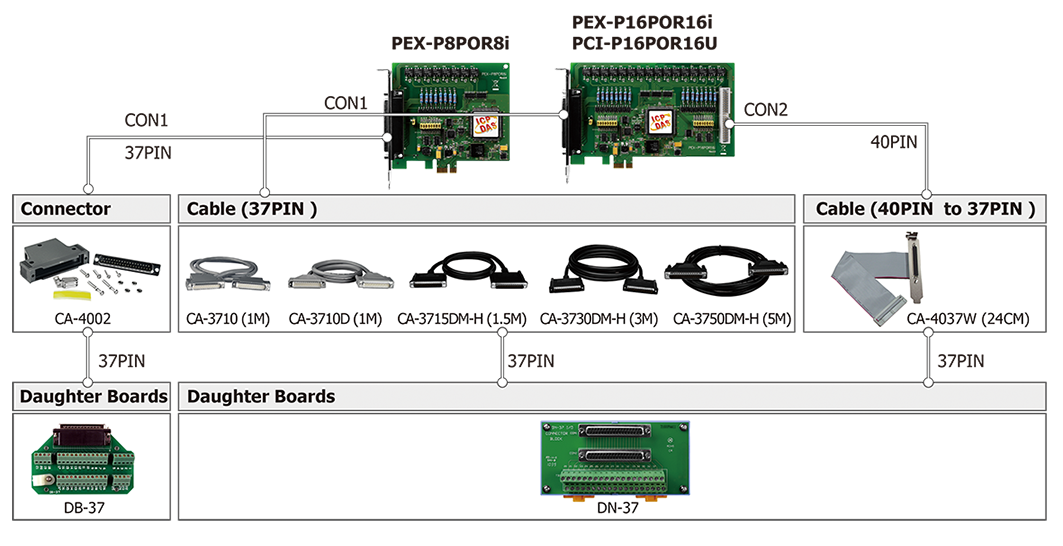

Accessories
Applications
- DOS Lib and TC/BC/MSC sample program (with source codes)
- DLL and OCX SDK for Windows 95/98/NT/2K.
- DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/2008/7/8/10.
- VB/VC/Delphi/BCB/VB.NET/C#.NET/VC.NET/MATLAB sample programs with source codes.
- LabVIEW toolkit for Windows.
- Driver for Linux and DasyLab.
Click to view the Introduction of https://mctt.vn/pci-icp-das
Specifications
| Hardware |
| Card ID |
Yes (4-bit) |
| Connector |
Female DB37 x 1
40-pin box header x 1 |
| Digital Input |
| Channels |
16 |
| Type |
Wet Contact
Photocoupler |
| Sink/Source (NPN/PNP) |
Sink/Source |
| ON Voltage Level |
AC/DC 5 ~ 24 V (AC 50 ~ 1 kHz) |
| OFF Voltage Level |
AC/DC 0 ~ 1 V |
| Response Speed |
Without Filter: 50 kHz (Typical)
With Filter: 0.455 kHz(Typical) |
| Trigger Mode |
Static Update |
| Isolation |
2000 VDC |
| Relay Output |
| Channels |
16 |
| Type |
PhotoMos Relay (Form A) |
| Contact Rating |
Load Voltage: 300 V (AC peak or DC)
Load Current: 130 mA |
| Operate Time |
0.7 ms (typical) |
| Release Time |
0.05 ms (typical) |
| Electrical Endurance |
Long Life and No Sparking |
| PC Bus |
| Type |
PCI-Express x 1 |
| Data Bus |
16-bit |
| Power |
| Consumption |
600 mA @ +3.3 V
300 mA @ +12 V |
| Mechanical |
| Dimensions (mm) |
113 x 118 x 22 (W x L x D) |
| Environment |
| Operating Temperature |
0 ~ +60°C |
| Storage Temperature |
-20 ~ +70°C |
| Humidity |
5 ~ 85% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| PCI-P16POR16U CR |
Universal PCI, 16-ch Isolated DI and 16-ch PhotoMOS Relay Output Board (RoHS)
Includes one CA-4037W cable and two CA-4002 D-Sub connectors. |
