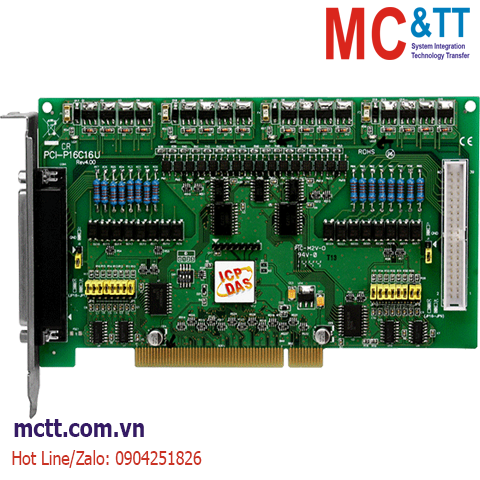

Card PCI 16 kênh DI + 16 kênh DO ICP DAS PCI-P16C16U CR
Features
- Universal PCI (3.3 V/5 V) Interface
- 16-channel Optically-isolated Digital Input
- 16-channel Open-collector Digital Output (Sink, NPN)
- External Power Status LED Indicator
- Selectable DC Signal Input Filter
- AC Signal Input with Filter
- Supports Card ID (SMD Switch)
- 5000 Vrms Photo-isolation Protection
Introduction
The PCI-P16C16U Universal PCI card supports the 3.3 V/5 V PCI bus and provides 16 optically-isolated Digital Input channels and 16 open-collector (Sink, NPN) Digital Output channels. The DI channels provide 5000 Vrms isolation protection that allows the input signals to be completely floated so as to prevent ground loops and isolate the host computer from potentially damaging voltage spikes. The open-collector DO channels are typically used for alarm and warning notifications, control of signal output, control of external circuits that require a higher voltage level, or signal transmission applications, etc. The PCI-P16C16U contains a single DB-37 connector and a single 40-pin box header, and includes a 40-pin to DB-37 flat cable for easy wiring.
The PCI-P16C16U cards also includes an onboard Card ID switch that enables the board to be recognized via software if two or more boards are installed in the same computer.

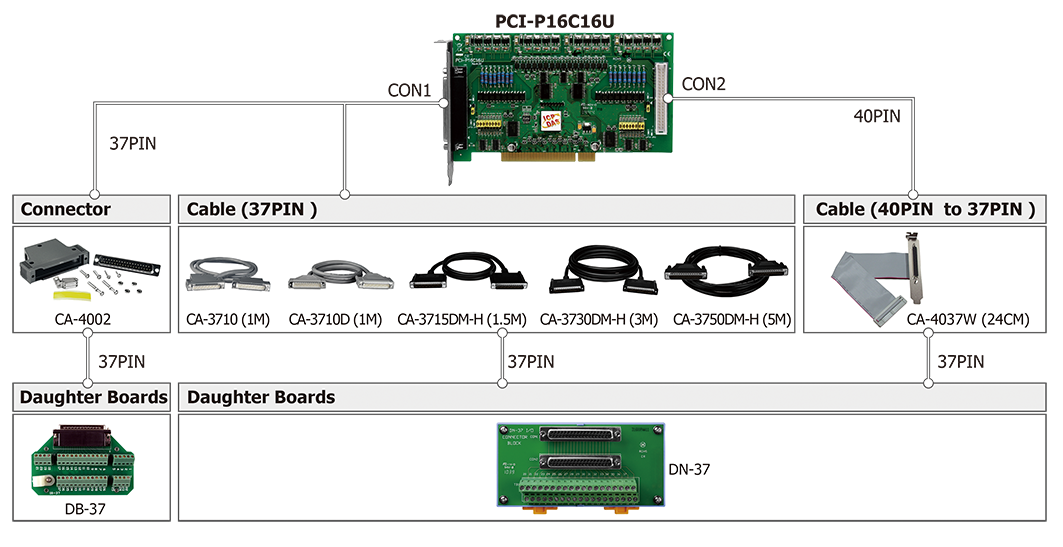

Accessories
Applications
- DOS Lib and TC/BC/MSC sample program (with source codes)
- DLL and OCX SDK for Windows 95/98/NT/2K.
- DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/2008/7/8/10.
- VB/VC/Delphi/BCB/VB.NET/C#.NET/VC.NET/MATLAB sample programs with source codes.
- LabVIEW toolkit for Windows.
- Driver for Linux and DasyLab.
Click to view the Introduction of https://mctt.vn/pci-icp-das
Specifications
| Hardware |
| Card ID |
Yes (4-bit) |
| Connector |
Female DB37 x 1
40-pin box header x 1 |
| Digital Input |
| Channels |
16 |
| Type |
Wet Contact
Photocoupler |
| Sink/Source (NPN/PNP) |
Sink/Source |
| ON Voltage Level |
AC/DC 5 ~ 24 V (AC 50 ~ 1 kHz) |
| OFF Voltage Level |
AC/DC 0 ~ 1 V |
| Response Speed |
Without Filter: 50 kHz (Typical)
With Filter: 0.455 kHz (Typical) |
| Trigger Mode |
Static Update |
| Isolation |
5000 Vrms |
| Digital Output |
| Channels |
16 |
| Type |
Open Collector |
| Sink/Source (NPN/PNP) |
Sink (NPN) |
| Operation Mode |
Static Update |
| Load Current |
DC: 600 mA/+30 V for one channel @ 100% duty |
| Response Speed |
4 kHz (Typical) |
| Isolation |
3750 Vrms |
| PC Bus |
| Type |
3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus |
16-bit |
| Power |
| Consumption |
800 mA @ +5 V |
| Mechanical |
| Dimensions (mm) |
105 x 183 x 22 (W x L x D) |
| Environment |
| Operating Temperature |
0 ~ +60°C |
| Storage Temperature |
-20 ~ +70°C |
| Humidity |
5 ~ 85% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| PCI-P16C16U CR |
Universal PCI, 16-ch Isolated DI and 16-ch Open Collector (Sink, NPN) DO Board (RoHS)
Includes one CA-4037W cable and two CA-4002 D-Sub connectors |
