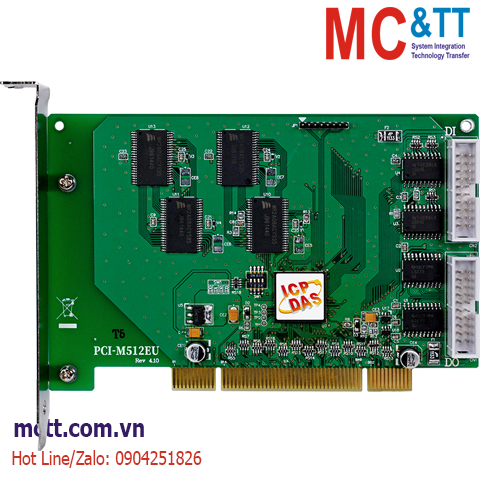

Card PCI 16 kênh vào/ra số DI/DO + 512 KB MRAM ICP DAS PCI-M512EU CR
Features
- Universal PCI (3.3 V/5 V) Interface
- 512 KB MRAM Onboard
- Non-volatile Random-access Memory Technology
- Retains Data when Power is Turned Off
- Unlimited Write Endurance
- 16-channel, 5 V/TTL Digital Output
- 12-channel, 5 V/TTL Digital Input
Introduction
The PCI-M512EU is a 512 KB MRAM (Magnetoresistive Random Access Memory) board and supports both the 3.3 V and the 5 V Universal PCI bus. The PCI-M512EU provides 12 Digital Input channels and 16 Digital Output channels to connect various devices.
The MRAM is a non-volatile random-access memory technology that the fairly new type of memory. The main features of MRAM in include unlimited write endurance, read and write cycles with no delay and data retention even after power loss, so the data can be saved permanently. The PCI-M512EU is an ideal solution for improving system reliability when the power outage.
as pulse/event/switch-toggle counting, frequency readings, elapsed time measurement, pulse-width measurement, PWM (pulse-width-modulated) output, and pulse (square wave) and rate generation, etc.
Accessories
Applications
- DOS Lib and TC/BC/MSC sample program (with source codes)
- DLL and OCX SDK for Windows 95/98/NT/2K.
- DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/2008/7/8/10.
- VB/VC/Delphi/BCB/VB.NET/C#.NET/VC.NET/MATLAB sample programs with source codes.
- LabVIEW toolkit for Windows.
- Driver for Linux and DasyLab.
Click to view the Introduction of https://mctt.vn/pci-icp-das
Specifications
| Memory |
| Type |
MRAM |
| Size |
512 KB |
| Hardware |
| Card ID |
Yes (4-bit) |
| Connector |
20-pin box header x 2 |
| Digital Input |
| Channels |
12 |
| Type |
5 V/TTL |
| ON Voltage Level |
2.0 V Min. |
| OFF Voltage Level |
0.8 V Max. |
| Response Speed |
1.0 MHz (Typical) |
| Trigger Mode |
Static Update |
| Digital Output |
| Channels |
16 |
| Type |
5 V/TTL |
| Operation Mode |
Static Update |
| Load Voltage |
Logic 0: 0.4 V Max.
Logic 1: 2.4 V Min. |
| Load Current |
Sink: 2.4 mA @ 0.8 V
Source: 0.8 mA @ 2.0 V |
| Response Speed |
1.0 MHz (Typical) |
| PC Bus |
| Type |
3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus |
8-bit |
| Power |
| Consumption |
580 mA @ +5 V |
| Mechanical |
| Dimensions (mm) |
86 x 134 x 22 (W x L x D) |
| Environment |
| Operating Temperature |
0 ~ +60°C |
| Storage Temperature |
-20 ~ +70°C |
| Humidity |
5 ~ 85% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| PCI-M512EU CR |
Universal PCI, 512 KB MRAM Board with 16-ch DI, 16-ch DO (RoHS) |
