Card PCI 32 kênh vào/ra số DI/DO + 16 kênh Counter/Frequency/Encoder Input ICP DAS PCI-FC16U CR
Features
- Universal PCI (3.3 V/5 V) Interface
- 32-channel Programmable Digital I/O
- 16-channel Up Counter or Frequency Measurement (Pulse Width = 2 μs Min.)
- Digital Filter: 1 to 32767 (μs)
- Pull-high and Pull-low Resistors for DI Channels
- Supports Card ID (SMD Switch)
Introduction

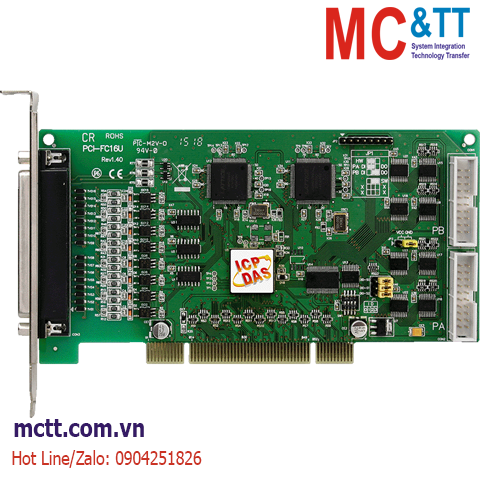

The PCI-FC16U is a 32-bit hardware-type high-speed Counter/Frequency board that supports both the 3.3 V and the 5 V Universal PCI bus. The card provides 16 channels that can be individually configured for either frequency measurement or up-counter applications, and can support high-frequency signals up to 250 kHz. The PCI-FC16U board also includes 32 programmable Digital I/O channels.
The PCI-FC16U board includes an onboard Card ID switch that enables the board to be easily recognized via software if two or more boards are installed in the same computer. The pull-high/pull-low resistors allow the DI status to be predefined as either high or low instead of remaining floating if the DI channels are disconnected or interrupted.
The cards support various OS versions, such as DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland c++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.

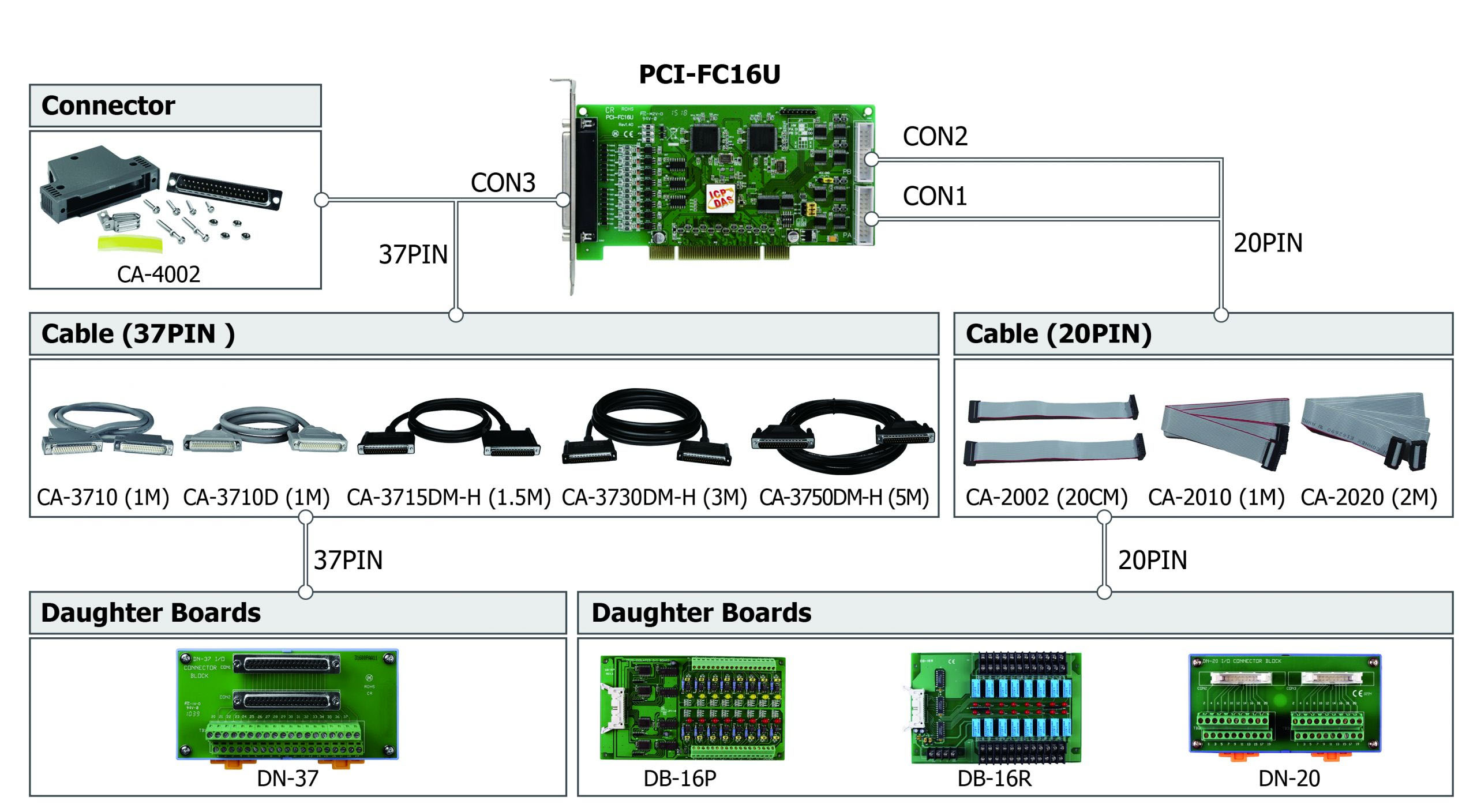

Accessories
Applications
- DOS Lib and TC/BC/MSC sample program (with source codes)
- DLL and OCX SDK for Windows 95/98/NT/2K.
- DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/2008/7/8/10.
- VB/VC/Delphi/BCB/VB.NET/C#.NET/VC.NET/MATLAB sample programs with source codes.
- LabVIEW toolkit for Windows.
- Driver for Linux and DasyLab.
Click to view the Introduction of https://mctt.vn/pci-icp-das
Specifications
| Hardware |
| Card ID |
Yes (4-bit) |
| Connector |
Female DB37 x 1
20-pin box header x 2 |
| Digital Input |
| Channels |
32 (Bi-Direction) |
| Type |
5 V/TTL |
| ON Voltage Level |
2.0 V Min. |
| OFF Voltage Level |
0.8 V Max. |
| Response Speed |
1.0 MHz (Typical) |
| Pull-high/Pull-low Resistors |
Yes |
| Trigger Mode |
Static Update |
| Digital Output |
| Channels |
32 (Bi-Direction) |
| Type |
5 V/TTL |
| Operation Mode |
Static Update |
| Load Current |
Sink: 2.4 mA @ 0.8 V
Source: 0.8 mA @ 2.0 V |
| Response Speed |
1.0 MHz (Typical) |
| DO Readback |
Yes |
| Counter/Frequency/Encoder Input |
| Channels |
16 |
| Type |
Isolated Input |
| Counter Mode |
Yes(Up Counter) |
| Frequency Mode |
Yes |
| Max. Counter/Frequency |
1 Hz ~ (typically ) 250 kHz (both counter mode and frequency mode)
where 250 kHz is calculated as followings:
Supposed that duty cycle = 50%, refer to Minimum Pulse Duration of High Level, we have pulse period = 2 μs x 2 = 4 μs, which is 250 kHz as a max.
Refer to Min. Pulse Duration of High Level, Max. Frequency is highly affected by duty cycle. |
| Frequency Accuracy |
± 0.4 % |
| Isolated, Input Level |
Logic 1: +4.5 VDC ~ +30 VDC
Logic 0: +1 VDC Max. |
| Low Pass Filter |
1 ~ 32767 μs |
| Power |
| Consumption |
700 mA @ +5 V |
| Environment |
| Operating Temperature |
0°C to +60°C |
| Humidity |
5 to 85% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| PCI-FC16U CR |
Universal PCI, 16-ch Counter/Frequency Input Board with 32-ch DIO (RoHS)
Includes one CA-4002 D-Sub connector |
