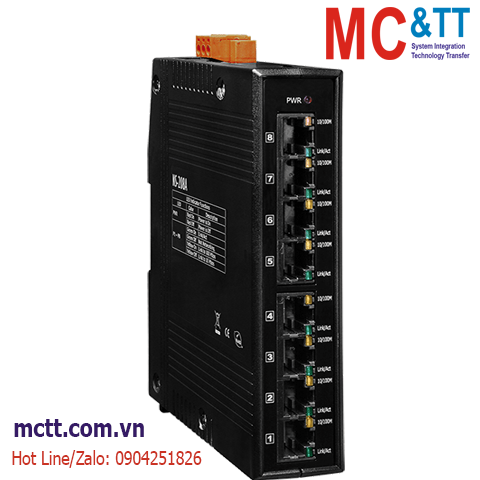

Switch công nghiệp 8 cổng Ethernet ICP DAS NS-208A CR
Feature
• Cost-effective.
• Automatic MDI/MDI-X crossover for plug-and-play
• Store-and-forward architecture
• Full duplex IEEE 802.3x and half duplex backpressure flow control
• Each port supports both 10/100 Mbps speed auto negotiation
Introduction
The NS-208A has 8 Ethernet ports that support 10/100 Base-TX, with a 10/100M auto negotiation feature and auto MDI/MDI-X function. All Ethernet ports have memory buffers that support the store-and-forward mechanism, which assures that data can be transmitted properly. The NS-208A supports advanced network standards to optimize network performance, reduce maintenance costs, and secure network safety. The flow control mechanism is also negotiated. There is link/data rate LEDs for each port to aid troubleshooting. Port connectors are shielded RJ-45.
Application
Specifications
| EMS Protection |
| ESD (IEC 61000-4-2) |
Yes |
| LED Indicators |
| Status |
Power, Link/Act, 10/100M |
| Ethernet |
| Ports |
8 x RJ-45, 10/100Base-TX |
| Standards |
IEEE 802.3, 802.3u, 802.3x |
| Processing Type |
Store & forward; wire speed switching |
| MAC Table |
2048 |
| Frame Buffer Memory |
768 Kbit |
| Flow Control |
IEEE 802.3x flow control, back pressure flow control |
| Isolation |
1500 Vrms 1 minute |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
+12 ~ +48 VDC |
| Consumption |
20 mA@24 VDC (without loading)
80 mA@24 VDC (Full loading) |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
31 x 157 x 113 (W x L x H) |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-40 °C ~ +75 °C |
| Storage Temperature |
-40 °C ~ +85 °C |
| Humidity |
10% ~ 90% RH, non-condensing |
Download
Datasheet
Documents
Ordering Information
| NS-208A CR |
Unmanaged 8-port Industrial 10/100 Mbps Ethernet Switch (RoHS) |
