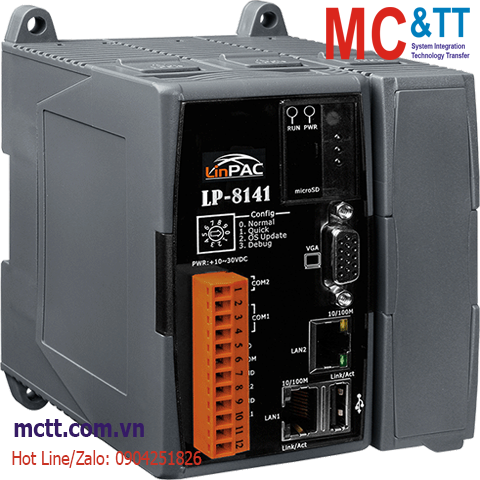

Bộ lập trình nhúng Linux PAC với CPU PXA270 +1 khe cắm module I/O ICP DAS LP-8141-EN CR
LP-8141-EN đã dừng sản xuất, thay thế và nâng cấp thành LP-8121
Features
• PXA270 (520 MHz) CPU
• Linux kernel 2.6 Inside
• Embedded Service: Web Server, FTP Server, Telnet Server, SSH Server
• Dual 10/100M Ethernet Ports
• 2 Serial Ports (RS-232/485)
• Redundant Power Inputs
Introduction
LinPAC-8000 is the new generation Linux-based PAC (Programmable Automation Controller) from ICP DAS and is equipped with a PXA270 CPU (520 MHz) running a Linux kernel 2.6 operation system, multiple communication interfaces (VGA, USB, Ethernet and RS-232/485) and 1/4/8 slots for high performance parallel I/O modules (high profile I-8K series) and serial I/O modules (high profile I-87K series).
Main advantage of the LinPAC-8000 is its high quality control system, including its stably properties, open source and the standard LinPAC SDK for Windows and Linux using the GNU C language, JAVA and GUI software. The main purpose of LinPAC-8000 is to allow the numerous enthusiastic Linux users to control their own embedded system easily within the Linux environment.
https://mctt.vn/lp-8000-icp-das
Specifications
| Software |
| OS |
Linux kernel 2.6 |
| Service |
Web Server, FTP Server, Telnet Server, SSH Server |
| SDK |
Standard LinPAC SDK for Windows and Linux by GNU C language |
| Main Unit |
| CPU |
PXA270 or compatible (32-bit and 520 MHz) |
| 64-bit Hardware Serial Number |
Yes, for Software Copy Protection |
| System Memory |
SDRAM 128 MB |
| Storage |
• Flash 96 MB
• microSD socket with a 4 GB microSD card (support up to 32 GB microSDHC card) |
| Non-Volatile Memory |
• Dual Battery Backup SRAM 512 KB
• EEPROM 16 KB (Data Retention: 40 years; 1,000,000 erase/write cycles) |
| Real Time Clock |
Yes (Provide seconds, minutes, hours, day of week, month, year) |
| Watchdog Timer |
Yes, Dual Watchdog Timer |
| Display |
| Signal |
VGA (Analog RGB) |
| Resolution |
640 × 480
800 × 600 |
| LED Indicators |
| Status |
1 x Power
1 x Run (Programmable) |
| I/O Expansion |
| I/O Type |
I-8KW, I-87KW series |
| Slots |
1 |
| COM Ports |
| Ports |
1 x RS-232 (Console, Non-isolated)
1 x RS-485 (2500 VDC, Isolated) |
| HMI |
| Rotary Switch |
Yes (0 ~ 9) |
| DIP Switch |
No |
| Ethernet |
| Ports |
2 x RJ-45, 10/100 Base-TX |
| USB |
| Ports |
1 |
| Specification |
USB 1.1 (Host) |
| Power |
| Input Range |
+10 VDC ~ +30 VDC |
| Redundant Power Inputs |
Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Consumption |
7.3 W (0.3 A @ 24 VDC) |
| Mechanical |
| Dimensions (mm) |
95 x 132 x 111 (W x L x H) |
| Installation |
DIN-Rail or Wall Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| LP-8141-EN CR |
1-slot Linux Based PAC with PXA270 CPU (RoHS) |
