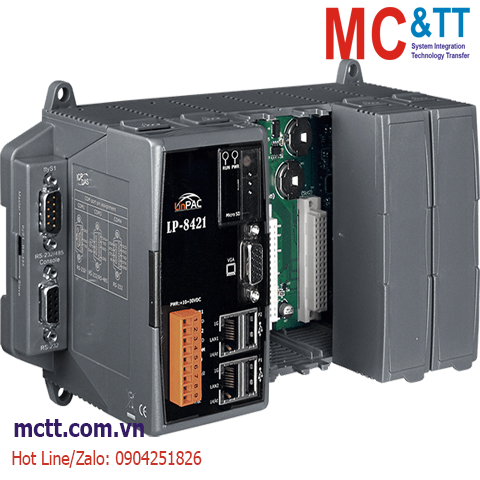

Bộ lập trình nhúng Linux PAC với CPU Cortex-A8 +4 khe cắm module I/O ICP DAS LP-8421 CR

Chia sẻ:
Mã sản phẩm: LP-8421
Thương hiệu: ICP DAS
Tình trạng:

4-slot Linux Based PAC with Cortex-A8 CPU

Liên hệ
Mô tả

Bộ lập trình nhúng Linux PAC với CPU Cortex-A8 +4 khe cắm module I/O ICP DAS LP-8421 CR

Features

• Cortex-A8 (1.0 GHz) CPU
• Linux kernel 3.2.14 Inside
• Embedded Service: Web Server, FTP Server, Telnet Server, SSH Server
• 64-bit Hardware Serial Number
• Rich I/O Expansion Ability: RS-232, RS-485, USB, FRnet, CAN
• Redundant Power Inputs

Introduction

The LP-8x2x is the new generation Linux-based PAC (Programmable Automation Controller) from ICP DAS and is equipped with a Cortex-A8 CPU (1.0 GHz) running a Linux kernel 3.x operation system, multiple communication interfaces (VGA, USB, Ethernet and RS-232/485) and 1/4/8 slots for high performance parallel I/O modules (high profile I-8K series) and serial I/O modules (high profile I-87K series).

Main advantage of the LinPAC-8x2x is its high quality control system, including its stably properties, open source and the standard LinPAC SDK for Windows and Linux using the GNU C language, JAVA and GUI software. The main purpose of LinPAC-8x2x is to allow the numerous enthusiastic Linux users to control their own embedded system easily within the Linux environment.

https://mctt.vn/lp-8000-icp-das

Specifications

Software
OS Linux Kernel 3.2.14
Service Web Server, FTP Server, Telnet Server, SSH Server
SDK Standard LinPAC SDK for Windows and Linux by GNU C language
Main Unit
CPU Cortex-A8, 1 GHz
64-bit Hardware Serial Number Yes, for Software Copy Protection
System Memory 512 MB DDR3 SDRAM
Storage • Flash 512 MB
• microSD socket with a 4 GB microSD card (support up to 32 GB microSDHC card)
Non-Volatile Memory • MRAM 128 KB
• EEPROM 16 KB (Data Retention: 40 years; 1,000,000 erase/write cycles)
Real Time Clock Yes (Provide seconds, minutes, hours, day of week, month, year)
Watchdog Timer Yes, Dual Watchdog Timer
Display
Signal VGA (Analog RGB)
Resolution Up to 1280 x 1024
LED Indicators
Status 1 x Power
1 x Run (Programmable)
I/O Expansion
I/O Type I-8KW, I-87KW series
Slots 4
COM Ports
Ports 1 x RS-232 (Console, Non-isolated)
1 x RS-232, Non-isolated
1 x RS-485 (3000 VDC, Isolated)
1 x RS-232/485, Non-isolated
HMI
Rotary Switch Yes (0 ~ 9)
DIP Switch Yes (8 bits)
Ethernet
Ports 2 x RJ-45, 10/100/1000 Base-TX
USB
Ports 2
Specification USB 2.0 (Host)
Power
Input Range +10 VDC ~ +30 VDC
Redundant Power Inputs Yes, with one power relay (1 A @ 24 VDC) for alarm
Consumption 9.1 W (0.38 A @ 24 VDC)
Mechanical
Dimensions (mm) 231 x 132 x 111 (W x L x H)
Installation DIN-Rail or Wall Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

LP-8421     CR  4-slot Linux Based PAC with Cortex-A8 CPU (RoHS)
