Cảm biến đo lực kéo 10 - 200 N Lorenz K-1107

Chia sẻ:
Mã sản phẩm: K-1107
Thương hiệu: Lorenz Messtechnik
Tình trạng:

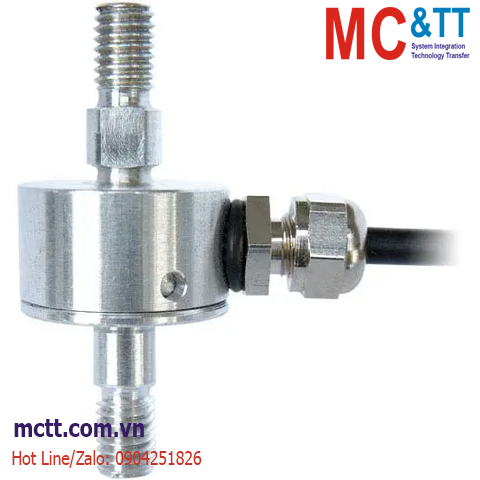

Miniature tension force transducer K-1107, with rod ends, made of aluminum produced & distributed by Lorenz Messtechnik GmbH

Liên hệ
Mô tả

Cảm biến đo lực kéo 10 - 200 N Lorenz K-1107

K-1107, Miniature
All parts have been welded together including the cable guide bush in the sensor housing. Its complex design makes it versatile and requires little space, has little material and weight and almost no component friction.


  • Tension
  • Accuracy: ±0.2%
  • Outer Diameter: 17.0mm
  • Height: 38.0mm
  • Connection: 3m Integral Cable
  • Aluminium
  • Easy Assembly

K-1107 - Specifications

Type Rod Type
Application Tension
Full Scale 2.2 lbs
  4.5 lbs
  11.2 lbs
  22 lbs
  45 lbs
Output 0.5 mV/V
Precision ±0.2 % FS
Excitation 2 V - 6 V DC
IP Rating IP63
Min Temperature 0 °C
Max Temperature 60 °C


PDF Datasheet: 080801a_K-1107_en.pdf
