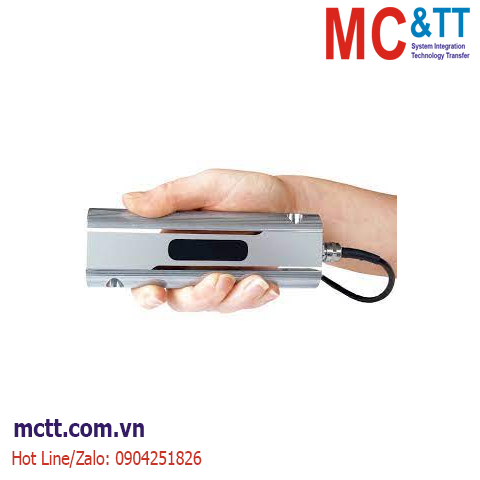

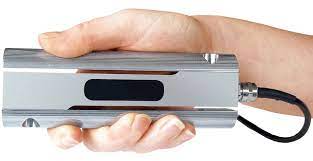

Cảm biến đo lực 1500 N Lorenz K-2565

Chia sẻ:
Mã sản phẩm: K-2565
Thương hiệu: Lorenz Messtechnik
Tình trạng:

Force transducer K-2565 for hand force measurement, made of stainless steel, from Lorenz Messtechnik GmbH, the manufacturer and distributor

Liên hệ
Mô tả

Cảm biến đo lực 1500 N Lorenz K-2565

K-2565, Hand Force Measurement

Features:

  • Compression
  • Accuracy: ±0.2%
  • Length: 150.0mm
  • Width: 25.0mm
  • Height: 50.0mm
  • Connection: 3m Integral Cable
  • Stainless Steel

K-2565 - Specifications

Type Hand Force
Application Compression
Full Scale 1500 N
Output 1 mV/V
Precision ±0.2 % FS
Excitation 2 V - 12 V DC
IP Rating IP67
Min Temperature 0 °C
Max Temperature 60 °C

Download

Type: K-2565
Measuring Range: 1500 N
Accuracy Class: 0.1
Range of Application: Force Sensor for Hand Force Measurement (Medical Load Cell)
PDF Datasheet: 080827b_K-2565_en.pdf
PDF Operation Manual: -
CAD Files: DXF
IGS; STP
