Cảm biến đo lực 2 N 3 N 4 N 5 N 20 N Lorenz K-1509

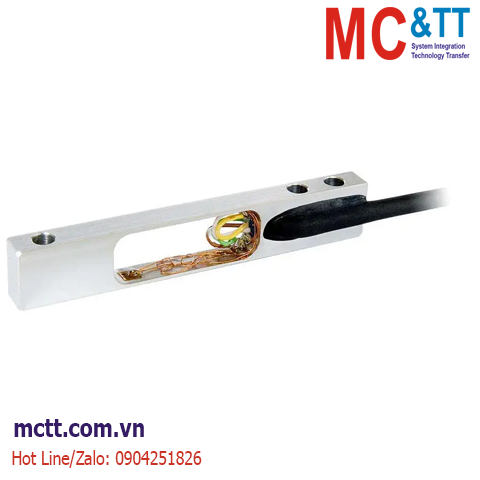

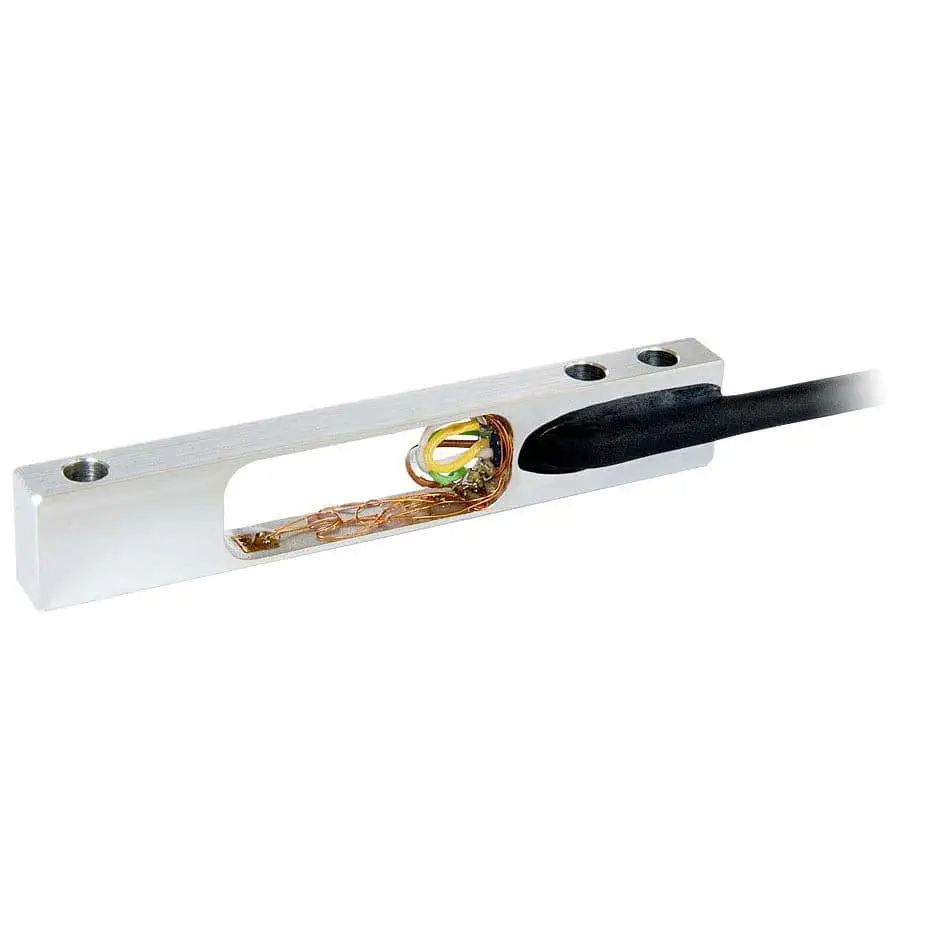

K-1509, Beam
The K-1509, is a economical low capacity beam load cell suitable for use in a variety of industrial and OEM force measurement and weighting applications. It is made of an aluminum alloy and comes in 2, 3, 4, 5, 10, 20 N ranges
Features:
- Compression
- Accuracy: ±0.2%
- Length: 60.0mm
- Width: 5.0mm
- Height: 10.0mm
- Connection: 3m Integral Cable
- Aluminum
K-1509 - Specifications
| Type |
Weighing Beam |
| Application |
Tension & Compression |
| Full Scale |
2 N |
| |
3 N |
| |
4 N |
| |
5 N |
| |
10 N |
| |
20 N |
| Output |
1 mV/V |
| Precision |
±0.2 % FS |
| Excitation |
2 V - 6 V DC |
| IP Rating |
IP67 |
| Min Temperature |
0 °C |
| Max Temperature |
60 °C |
Download
| Type: |
K-1509 |
| Measuring Range: |
2..20 N |
| Accuracy Class: |
0.2 |
| Range of Application: |
Force Sensor , e.g. for Measurement of Ball Bearing Friction |
| PDF Datasheet: |
080829c_K-1509_en.pdf |
| PDF Operation Manual: |
- |
| CAD Files: |
DXF
IGS; STP |
