Cảm biến đo lực 0.5 kN 1 kN 2 kN 3 kN 6.5 kN Lorenz K-2148

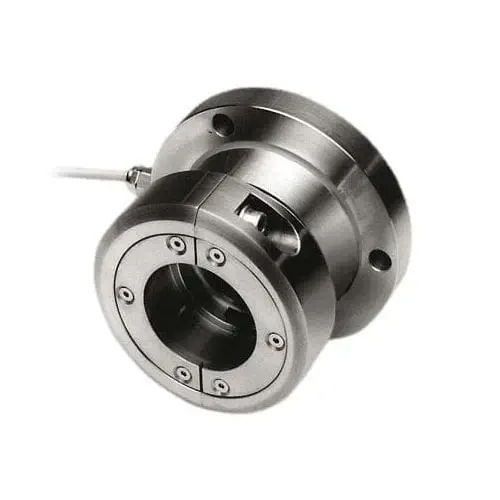

K-2148, Web Tension Measurement
The K-2148 is a specifically designed solution for Web Tension Measurement. Designed to be used with two sensors and a deflection roll in the middle, the web tension of production rolls can be monitored effectively and easily.
Features:
- Easy to Change Idler Pulley
- Tension
- Accuracy: ±0.5%
- Outer Diameter: 105.0mm
- Height: 81.8mm
- Connection: 12m Integral Cable
- Stainless Steel
K-2148 - Specifications
| Type |
Rod Type |
| Application |
Tension |
| Full Scale |
0.5 kN |
| |
1 kN |
| |
2 kN |
| |
3 kN |
| |
6.5 kN |
| Output |
0.5 mV/V |
| |
1 mV/V |
| Precision |
±0.5 % FS |
| Excitation |
2 V - 12 V DC |
| IP Rating |
IP63 |
| Min Temperature |
0 °C |
| Max Temperature |
60 °C |
Download
| Type: |
K-2148 |
| Measuring Range: |
0.5..6.5 kN |
| Accuracy Class: |
0.5 |
| Range of Application: |
Web Tension Sensor, e.g. for Tension Measurement of Belt Conveyors in the Paper Industry |
| PDF Datasheet: |
080823b_K-2148_en.pdf |
| PDF Operation Manual: |
- |
| CAD Files: |
DXF
IGS; STP |
