Switch 16 cổng Gigabit PoE + 2 cổng Gigabit Ethernet + 2 cổng Gigabit SFP JHA Tech JHA-P422016BHGW

Mã sản phẩm: JHA-P422016BHGW

Thương hiệu: JHA TECH

Tình trạng:

Unmanaged PoE fiber switch with 18*10/100/1000M RJ45 ports and 2*1000M uplink SFP ports

Liên hệ

Chính sách cửa hàng

Khi mua hàng tại website của chúng tôi, quý khách sẽ được:

Thanh toán dễ dàng và bảo mật

Miễn phí vận chuyển với đơn hàng từ 10.000.000đ

Bảo hành 1 năm do lỗi nhà sản xuất

Cam kết 100% chính hãng

GIẢI PHÁP

Mô tả

Mô tả

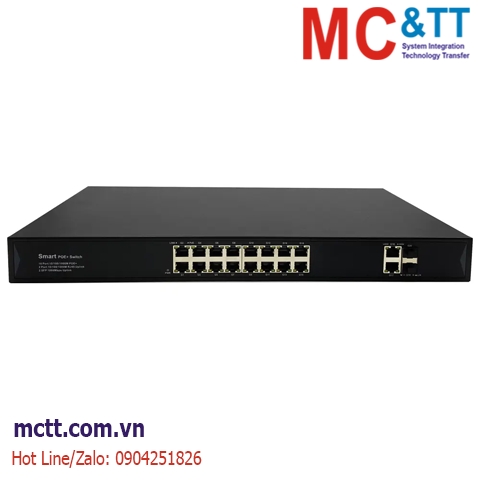

Switch 16 cổng Gigabit PoE + 2 cổng Gigabit Ethernet + 2 cổng Gigabit SFP JHA Tech JHA-P422016BHGW

The JHA-P422016BHGW is a full gigabit unmanaged PoE fiber switch. It has 18*10/100/1000M adaptive RJ45 ports and 2*1000M SFP slot ports. Port 1-16 can support IEEE802.3af/at PoE standard. Single-port PoE power reaches 30W, and the maximum PoE output power is 250W (at-400W). As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP phone, building visual access control intercom, etc. through network cable, to meet the network environment that needs high-density PoE power supply. It is suitable for hotel, campus, factory dormitory and small and medium-sized enterprise. Unmanaged model, plug and play, no configuration, easy to use.

Tính năng

16*10/100/1000M + 2*10/100/1000M RJ45 Port +2*1000M SFP Slot Smart PoE Switch,1-16 ports support IEEE 802.3af/at;
Comply with IEEE 802.3, IEEE 802.3u standards;
PoE port support AF/AT intelligent recognition. Standard power is 15.4W/port, Maximum power: 30W/port;
Supports POE devices such as wireless access points (APs) and network surveillance cameras through Category 5/6 Ethernet cables;
The power supply total is 250W

Thông số kỹ thuật

Model	JHA-P422016BHGW	JHA-P422016BTHGW
Interface Characteristics
Fixed Port	1610/100/1000Base-T PoE ports (Data /Power) 210/100/1000Base-T uplink RJ45 ports (Data) 2*1000Base-X uplink SFP slot ports (Data)
Ethernet Port	Port 1-16 can support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP(≤100 meters) 100BASE-TX: Cat5 or later UTP(≤100 meters) 1000BASE-T: Cat5e or later UTP(≤100 meters)
SFP Slot Port	Gigabit SFP optical fiber port, default no include optical modules (optional order single-mode/ multi-mode, single fiber / dual fiber optical module. LC)
Optical Cable/ Distance	Multi-mode:850nm/ 0-500M, Single-mode:1310nm/ 0-40KM, 1550nm/ 0-120KM.
Chip Parameter
Network Protocol	IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x
Forwarding Mode	Store and Forward(Full Wire Speed)
Switching Capacity	56Gbps (Non-blocking)
Forwarding Rate@64byte	29.76Mpps
MAC	8K
Buffer Memory	4M
Jumbo Frame	9.6K
LED Indicator	Power: PWR (Green), Network: Link, Link/Act (Yellow), PoE: PoE(Green), Fiber port: L/A (Green), Speed: SPD(Green)
Reset Switch	Yes, One-button factory reset
PoE & Power Supply
PoE Port	Port 1 to 16
Power Supply Pin	1/2(+) 3/6(-)
Max Power Per Port	30W, IEEE802.3af/at
Total PWR / Input Voltage	250W (AC100-240V)	400W (AC100-240V)
Power Consumption	Standby<15W, Full Load<240W	Standby<16W, Full Load<380W
Power Supply	Built-in power supply AC100~240V 50-60Hz 4.1A	Built-in power supply AC100~240V 50-60Hz 5.0A
Physical Parameter
Operation TEMP / Humidity	-20~+55°C, 5%~90% RH Non condensing
Storage TEMP / Humidity	-40~+75°C, 5%~95% RH Non condensing
Dimension (LWH)	44029044.5mm
Net /Gross Weight	<3.3kg /<4.0kg	<3.6kg /<4.5kg
Installation	Desktop, wall-mount, 19″ 1U rack-mount
Certification & Warranty
Lightning Protection	Lightning protection: 4KV 8/20us, Protection level: IP30
Certification	CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS

Download

Datasheet

Thông tin đặt hàng

Model	Description	Built-in Power Supply
JHA-P422016BHGW	Unmanaged PoE fiber switch with 1810/100/1000M RJ45 ports and 21000M uplink SFP ports. Port 1-16 can support IEEE802.3af/at PoE standard. Support 19″ 1U rack-mount installation.	250W
JHA-P422016BTHGW		400W
Note: The SFP optical module is not included by default and needs to be purchased separately.
