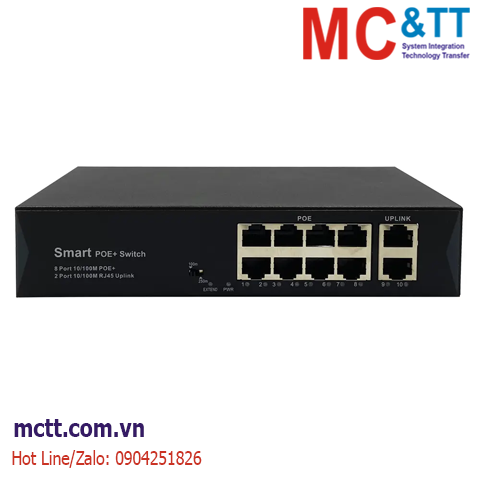

Switch 8 cổng PoE + 2 cổng Ethernet JHA Tech JHA-P10208CBMHGW
The JHA-P10208CBMHGW is a 10/100Mbps unmanaged PoE switch. it has 8*10/100M PoE ports and 2*10/100M uplink RJ45 ports. Port 1-8 can support IEEE802.3af/at standard PoE, single port PoE power up to 30W, and the maximum POE output power is 120W. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP phone, video access control intercom, etc. through network cable to meet the network environment that needs high-density PoE power supply. It is suitable for hotels, campuses, factory quarters and small and medium-sized enterprises to form an economy efficient network. Unmanaged model, plug and play, no configuration, easy to use.
Tính năng
- 8*10/100M + 2*100M RJ45 Port Smart PoE Switch,1-8 ports support IEEE 802.3af/at;
- Comply with IEEE 802.3, IEEE 802.3u standards;
- PoE port support AF/AT intelligent recognition. Standard power is 15.4W/port, Maximum power: 30W/port;
- Supports POE devices such as wireless access points (APs) and network surveillance cameras through Category 5/6 Ethernet cables;
- The power supply total is 120W
Thông số kỹ thuật
|
Model |
JHA-P10208CBMHGW |
|
Interface Characteristics |
|
Fixed Port |
8*10/100Base-TX PoE ports (Data/Power)
2*10/100Base-TX uplink RJ45 ports (Data) |
|
Ethernet Port |
Port 1-6/1-10 can support 10/100Base-TX auto-detection, full/half-duplex MDI/MDI-X auto-sensing |
|
Functional Switch
|
1*(Extend+ VLAN) |
|
Note: when the switch state changes, it must be restarted before the PoE switch function can take effect |
|
Twisted Pair Transmission |
10BASE-TX: Cat5 or later UTP(≤250 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter) |
|
Chip Parameter |
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX,IEEE802.3x |
|
Forwarding Mode |
Store and Forward(Full Wire Speed) |
|
Switching Capacity |
2Gbps (Non-blocking) |
|
Forwarding
Rate@64byte |
1.488Mpps |
|
MAC |
1K |
|
Buffer Memory |
768K |
|
Jumbo Frame |
9.6K |
|
LED Indicator |
Power:PWR (Green), network: L/A(Yellow), PoE: PoE (Green)
Functional switch: EXTEND (Green) |
|
PoE & Power Supply |
|
PoE Port |
Port 1-8 |
|
Power Supply Pin |
Default 1/2(+), 3/6(-) |
|
Max Power Per Port |
30W, IEEE802.3af/at |
|
Total PWR / Input Voltage |
120W/ (AC100-240V) |
|
Power Consumption |
Standby <5W, Full load <120W |
|
Power Supply |
Built-in power supply, AC100~240V 50-60Hz 2.0A |
|
Physical Parameter |
|
Operation TEMP / Humidity |
-20~+55°C, 5%~90% RH Non condensing |
|
Storage TEMP / Humidity |
-40~+75°C, 5%~95% RH Non condensing |
|
Dimension (L*W*H) |
195*130*40mm |
|
Net /Gross Weight |
<0.8kg / <1.2kg |
|
Installation |
Desktop, wall-mounted |
|
Certification & Warranty |
|
Lightning Protection / Protection Level |
Lightning protection: 4KV 8/20us; Protection level: IP30 |
|
Certification |
CCC, CE mark, commercial, CE/LVD EN60950
FCC Part 15 Class B, RoHS |
Download
Datasheet
Thông tin đặt hàng
|
Model |
Description |
|
JHA-P10208CBMHGW |
Unmanaged PoE switch,8*10/100M PoE ports+2*10/100M uplink RJ45 ports. built-in 120W power supply,support IEEE802.3af/at PoE standard, DIP Switch, support 10M/250m transmission. |
|
Note: The PoE switch is not included hanging ear by default and needs to be purchased separately |
