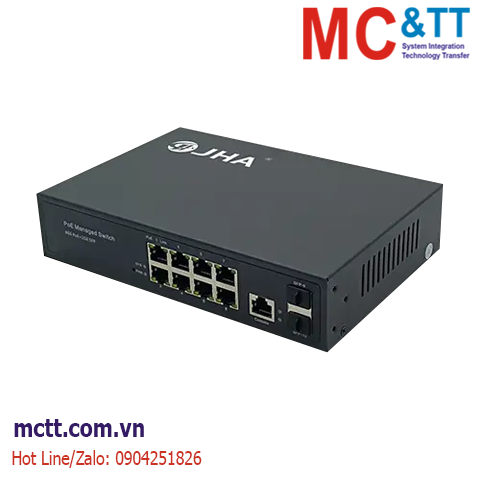

Switch quản lý 8 cổng Gigabit PoE + 2 cổng Gigabit SFP JHA Tech JHA-MPGS28N
JHA-MPGS28N PoE Switches support 8 Port 10/100/1000M PoE + 2 Port Gigabit SFP Uplink, built-in power supply, support QoS, widely used in Ethernet access applications such as small and medium-sized enterprises, Smart cities, security monitoring, and schools.
PoE switch is a kind of network switch that applies Power over Ethernet technology, which transmits both power and data to IP-based terminals (such as IP phones, wireless access APs, IP cameras) through a single twisted-pair cable.
Devices that support PoE can be power sourcing equipment (PSE), powered devices (PD), or sometimes both, the device that transmits power is a PSE, and the device that is powered is a PD. Most PSEs are either network switches or PoE injectors.
PoE technology can automatically detect power consumption of the powered devices and provide the required amount of power to maximize the use of power resources and save costs. On the other hand, non-PoE device intelligently detects no power and only transmits data.
PoE Switches do not need to run additional power cord to connect to the devices, saving the costs of power cables, power outlets, and infrastructure equipment required for electrical installation. PoE powered devices can be easily moved to locations where there is no power outlet, such as wireless network repeaters or IP security cameras because they are usually installed on high walls or ceilings away from power socket.
Power over Ethernet (POE) technology transmits 100M or 1000Mbps data and power budget of 15W, 30W to the devices through Cat5e and Cat6 Ethernet cables at a maximum distance of 100 meters.
Tính năng
- 8*10/100/1000M + 2*1G SFP+ Slot L2 Managed PoE Switch;
- PoE port support AF/AT/PoE++/BT intelligent recognition;
- Support QOS, STP/RSTP, IGMP, DHCP, SNMP, WEB, VLAN, ERPS etc;
- The Max power supply is 150W;
- IP30 Protection,6KV Surge Protection.
Thông số kỹ thuật
|
Managed PoE Switch Hardware Parameters |
|
Fixed Port |
8*10/100/1000Base-TX PoE port （data/power）
2*1000M SFP |
|
PoE Port |
1-8 port supports PoE |
|
Console Port |
1*console port |
|
POE Port |
1-8 |
|
Reset |
1 |
|
Network Protocol |
IEEE 802.3
IEEE 802.3u 100BASE-TX
IEEE 802.3ab1000BASE-T
IEEE 802.3x
IEEE 802.3z 1000BASE-X
IEEE 802.3af/at
IEEE 802.3ad
IEEE 802.3q 、IEEE 802.3q/p
IEEE 802.1w、IEEE 802.1d 、IEEE 802.1S
STP(Spanning Tree Protocol)
RSTP/MSTP( Rapid Spanning Tree Protocol)
EPPS ring network protocol
EAPS ring network protocol |
|
Port Specification |
10/100/1000BaseT（X）Auto |
|
Transmission Mode |
Store and Forward(full wirespeed) |
|
Bandwidth |
56Gbps |
|
Packet Forwarding |
14.44Mpps |
|
MAC Address |
8K |
|
Buffer |
4.1M |
|
Transmission Distance |
10BASE-T ： Cat3,4,5 UTP(≤250 meter)
100BASE-TX ： Cat5 or later UTP(≤100 meter)
1000BASE-TX ： Cat6 or later UTP(≤1000 meter)
1000BASE-SX:62.5μm/50μm MMF(2m~550m)
1000BASE-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m) |
|
FLASH |
16M |
|
RAM |
128M |
|
Watt |
≤150W |
|
LED Indicator |
PWR:Power LED
SYS:(System LED)
Port:(Orange=PoE LED+Green=Link LED)
9 10:(SFP LED) |
|
Power |
Built-in power AC 100~240V 50/60HZ |
|
Operating Temperature/Humidity |
-20～+55°C；5%～90% RH Non coagulation |
|
Storage Temperature/Humidity |
-40～+75°C；5%～95% RH Non coagulation |
|
Product size/Packing size（L*W*H） |
210mm*140mm*45mm
270mm*220mm*70mm |
|
N.W/G.W（kg） |
1.2kg/1.5kg |
|
Installation |
Desktop(optional wall+machine hanger parts) |
|
Lightning protection level |
3KV 8/20us；
IP30 |
|
Management switch WEB software function |
|
Protocol Standard |
IEEE 802.3x
IEEE 802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3z
IEEE 802.3ad
IEEE 802.3q、IEEE 802.3q/p
IEEE 802.1w、IEEE 802.1d、IEEE 802.1S、IEEE 802.1X |
|
MAC Address |
Support 16K MAC addresses;MAC address learning and aging |
|
VLAN |
Port-based VLANs
Up to 4096 VLAN
support Voice VLAN,can configure QoS for voice data
802.1Q VLAN |
|
Spanning Tree |
STP(Spanning tree protocol)
RSTP(Rapid spanning tree protocol)
MSTP(Rapid spanning tree protocol)
EPPS(Ring network protocol)
EAPS(Ring network protocol)
802.1x argumentation agreement |
|
Link Aggregation |
Max 8 aggregation groups TRUNK,each supports 8 ports |
|
Port Mirror |
Many-to-one port mirroring |
|
Loop Guard |
Loop protection function, real-time detection, rapid alarm, accurate positioning,intelligent blocking,automatic recovery |
|
Port Isolation |
Support downlink ports isolated from each other and communicate with uplink port |
|
Port Flow Control |
Half duplex based back pressure control
Full duplex based on PAUSE frame |
|
Line Rate |
Support downlink ports isolated from each other and communicate with upstream port |
|
IGMP Snooping |
IGMPv1/2/3 and MLDv1/2
GMRP Protocol Registration
Multicast address management, multicast VLAN,multicast routing ports,static multicast addresses |
|
DHCP |
DHCP Snooping |
|
Storm Suppression |
Unknown unicast, multicast,unknown multicast,storm suppression of broadcast type
Storm suppression based on bandwidth tuning and storm filtering |
|
Security |
User port+ IP Address+ MAC Address
ACL based on IP and MAC
Security properties of port based MAC address quantities |
|
QOS |
802.1p port queue priority algorithm
Cos/Tos，QOS sign
WRR (Weighted Round Robin)，Weighted priority rotation algorithm
WRR、SP、WFQ，3 priority scheduling models |
|
Cable Sequence |
Auto-MDIX; auto identification of straight-through cables and crossover cables |
|
Negotiation Mode |
Port supports automatic negotiation ( self-negotiation transmission rate and duplex mode) |
|
System Maintenance |
Upgrade package upload
System log view
WEB restore factory configuration |
|
Network Management |
WEB NMS
CLI management based on Telnet, TFTIP, Console
SNMP V1/V2/V3;
RMON V1/V2
RMON Management |
Download
Datasheet
Thông tin đặt hàng
|
Model NO. |
Description |
|
JHA-MPGS28N |
L2 switch PoE manged, 8*10/100/1000Base-TX PoE/PoE+ port and 2*1000M SFP,built-in power supply |
