Model |

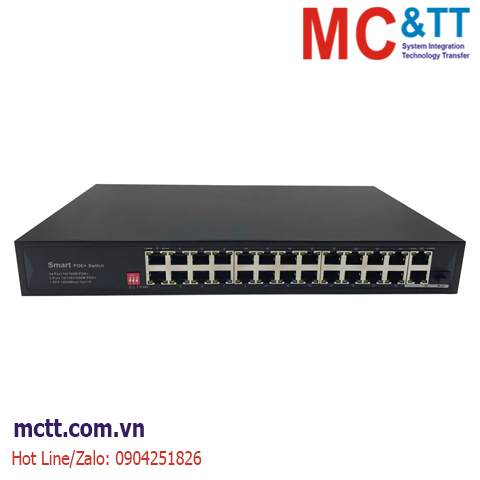

JHA-P312024CBMHGW |
|
Interface Characteristics |
|
Fixed Port |
24*10/100Base-TX PoE ports (Data/Power)
2*10/100/1000Base-T uplink RJ45 ports (Data)
1*1000Base-X SFP fiber port (Data) (combo port) |
|
Ethernet Port |
Port 1-24 support 10/100Base-TX, port 25-26 support 10/100/1000Base-T(X) automatic detection, full/half Duplex MDI/MDI-X adaptive |
|
Twisted Pair Transmission |
10BASE-T:Cat5 UTP(≤250 meter)
100BASE-TX:Cat5 or later UTP(≤100 meter)
100BASE-T:Cat5e or later UTP(≤100 meter) |
|
SFP Slot Port |
Gigabit SFP optical fiber interface, default not matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC) |
|
Optical Cable/ Distance |
Multi mode: 850nm /0 ~ 500M, single mode: 1310nm /0 ~ 40KM, 1550nm /0 ~ 120KM. |
|
Functional Switch |
(E, D, P) Three levels, the default state is “OFF”, the function description is as follows after “ON” is turned on |
|
E is the “ON” state, port 9-16/17-24 can support long-distance transmission 10M/250m and VLAN transmission mode; when “OFF”, 100 meters transmission. |
|
D is the “ON” state, port 1-16/1-24 can support AI self-healing mode; when “OFF”, no communication self-healing function. |
|
P is the “ON” state, POE outputs total power and priority indication mode; when “OFF”, no power indication function. |
|
Chip Parameter |
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x |
|
Forwarding Mode |
Store and Forward(Full Wire Speed) |
|
Switching Capacity |
14.8Gbps(non-blocking) |
|
Forwarding
Rate@64byte |
6.55Mpps |
|
MAC |
16K |
|
Buffer Memory |
4M |
|
Jumbo Frame |
10K |
|
LED Indicator |
Power: PWR (green), Network : link (yellow), PoE  oE (green) .rate:1000M (green) |
|
PoE & Power Supply |
|
PoE Port |
Port 1 to 24 IEEE802.3af/at @ POE |
|
Power Supply Pin |
Default 1/2 (+), 3/6 (-) |
|
Max Power Per Port |
30W, IEEE802.3af/at |
|
Total PWR / Input Voltage |
300W (100-240V) |
|
Power Consumption |
Standby<20W,Full load<300W |
|
Power Supply |
Built-in switching power supply, AC 100 ~ 240V 50-60Hz 4.1A |
|
Physical Parameter |
|
Operation TEMP / Humidity |
-20~+55°C, 5%~90% RH Non condensing |
|
Storage TEMP / Humidity |
-40~+75°C, 5%~95% RH Non condensing |
|
Dimension (L*W*H) |
330*204*44mm |
|
Net /Gross Weight |
<2.3kg / <3kg |
|
Installation |
Desktop, wall-mounted,19 inch 1U cabinet |
|
Certification & Warranty |
|
Lightning Protection |
Lightning protection: 4KV 8/20us, Protection level: IP30 |
|
Certification |
CCC,CE mark, commercial, CE/LVD EN60950, FCC Part 15 Class B, RoHS |
