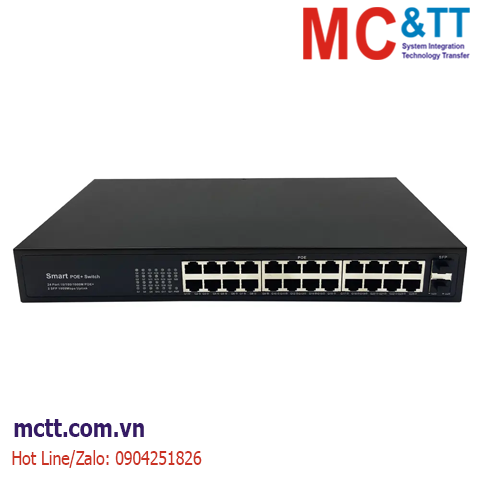

Switch 24 cổng Gigabit PoE + 2 cổng Gigabit SFP JHA Tech JHA-P420024BMHGW
The JHA-P420024BMHGW series is an unmanaged PoE switch. it has 24*10/100/1000M PoE ports and 2*1000M uplink SFP ports. Port 1-24 can support IEEE802.3af/at standard PoE power supply, single port PoE power up to 30W, and the maximum POE output power is 300W. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP phone, video access control intercom, etc. through network cable to meet the network environment that needs high-density PoE power supply. It is suitable for hotels, campuses, factory quarters and small and medium-sized enterprises to form an economy efficient network. Unmanaged model, plug and play, no configuration, easy to use.
Tính năng
- 24*10/100/1000M + 2*1000M SFP Slot Smart PoE Switch,1-24 ports support IEEE 802.3af/at;
- Comply with IEEE 802.3, IEEE 802.3u standards;
- PoE port support AF/AT intelligent recognition. Standard power is 15.4W/port, Maximum power: 30W/port;
- Supports POE devices such as wireless access points (APs) and network surveillance cameras through Category 5/6 Ethernet cables;
- The power supply total is 300W
Thông số kỹ thuật
|
Model |
JHA-P420024BMHGW |
|
Interface Characteristics |
|
Fixed Port |
24*10/100/1000Base-T PoE ports (Data/Power)
2*1000Base-X uplink SFP ports (Data) |
|
Ethernet Port |
Port 1-24 support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption |
|
Twisted Pair Transmission |
100BASE-TX: Cat5 or later UTP(≤100 meter)
1000BASE-T: Cat5e or later UTP(≤100 meter) |
|
SFP Slot Port |
Gigabit SFP optical fiber interface, default not matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC) |
|
Optical Cable/ Distance |
Multi mode: 850nm / 0 ~ 550M,
single mode: 1310nm / 0 ~ 40KM, 1550nm / 0 ~ 120KM. |
|
Chip Parameter |
|
Network Protocol |
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;
IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-X
IEEE802.3x |
|
Forwarding Mode |
Store and Forward(Full Wire Speed) |
|
Switching Capacity |
52Gbps (Non-blocking) |
|
Forwarding
Rate@64byte |
38.69Mpps |
|
MAC |
8K |
|
Buffer Memory |
4M |
|
Jumbo Frame |
10K |
|
LED Indicator |
Power: PWR (green), network: Link (green),PoE: PoE (green),
fiber: G1/G2(green), POE :PoE(green) |
|
PoE & Power |
|
PoE Port |
Port 1 to 24 IEEE802.3af/at @ POE |
|
Power Supply Pin |
Defaul 1/2 (+), 3/6 (-) |
|
Max Power Per Port |
30W; IEEE802.3af/at |
|
Total PWR / Input Voltage |
300W /(AC100-240V) |
|
Power Consumption |
Standby<20W, Full Load<300W |
|
Power Supply |
Built-in power supply, AC 100~240V 50-60Hz 4.1A |
|
Physical Parameter |
|
Operation TEMP / Humidity |
-20~+55°C, 5%~90% RH Non condensing |
|
Storage TEMP / Humidity |
-40~+75°C, 5%~95% RH Non condensing |
|
Dimension (L*W*H) |
330*204*44mm |
|
Net /Gross Weight |
<3.0kg / <3.5kg |
|
Installation |
Desktop, wall mounted,19 inch 1U cabinet |
|
Certification & Warranty |
|
Lightning protection / protection level |
Lightning protection: 4KV 8/20us; Protection level: IP30 |
|
Certification |
CCC,CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS |
Download
Datasheet
Thông tin đặt hàng
|
Model |
Description |
|
JHA-P420024BMHGW |
Unmanaged PoE switch,24* 10/100/1000M PoE ports+2* 1000M uplink SFP ports. built-in 300W power supply,support IEEE802.3af/at PoE Standard,support 19-inch cabinet installation. |
